C10100 Packaging Standards: How to Prevent Transit Oxidation?

A Mill Test Report (MTR) confirming 99.99% purity is useless if the material arrives with black sulfidation or surface pitting. Because C10100 (OFE) copper lacks the protective oxide layer found in commodity grades, its surface is chemically "active" and reacts instantly with salt air and humidity. To fulfill the microscopic cleanliness required by ASTM F68 copper plate wholesale standards, a C10100 copper plate supplier must treat packaging as a technical extension of the manufacturing process. At GNEE METAL, we maintain 101% IACS surface integrity through multi-layer barriers that isolate the metal from atmospheric contaminants.

While ASTM F68 defines the internal metallurgical purity and Max 5ppm oxygen limit, it does not mandate specific packaging. However, for Ultra-High Vacuum (UHV) and semiconductor applications, surface contamination is a functional failure. If an OFE copper tubing manufacturer ships a C10100 seamless copper tube without protection, moisture trapped inside creates "virtual leaks" in the customer's vacuum system.

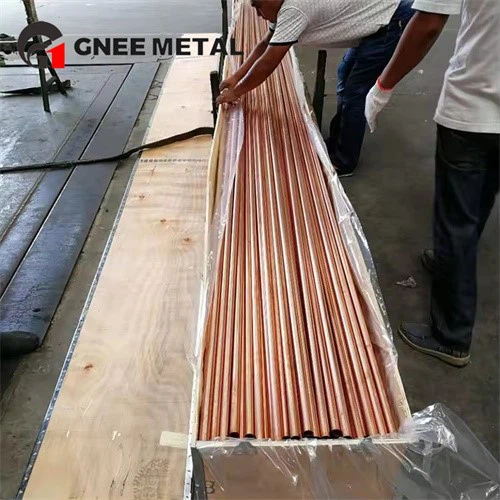

We utilize OFE copper tube bright annealing followed by high-purity nitrogen purging. By replacing moisture-heavy air with an inert gas and sealing the ends with plastic caps, we ensure the high vacuum copper pipe arrives in the same chemically "Bright" state as it left the furnace. This level of care is critical for maintaining C10100 tube concentricity and internal cleanliness in every ASTM F68 capillary tube.

Protection Standards for C10100 Product Formats

Volatile Corrosion Inhibitors (VCI) release an invisible vapor that bonds to the copper surface at the molecular level. This barrier prevents oxygen from reacting with the metal without leaving a greasy residue that would ruin the C10100 surface finish Ra.

As a specialized C10100 copper plate supplier, we apply VCI protection to all C10100 thick copper board shipments. This is non-negotiable for ASTM F68 copper plate wholesale orders where the material may be stored in high-humidity port environments. Protecting the surface ensures that your OFE copper rod tensile strength and electrical path remain untainted by corrosion-driven micro-fissures.

Request a Logistics Protection Audit

Surface oxidation creates a hard cuprous oxide "skin" (Cu2O) that is significantly more abrasive than the soft 99.99% copper core. If a C10100 copper round bar or OFE copper flat bar arrives with heavy oxidation, it will cause tool chatter and "smearing," effectively lowering the C10100 machinability rating.

Furthermore, mechanical damage during transit is a major risk. For C10100 plate flatness tolerance, we use ISPM-15 heat-treated wooden crates that prevent the material from flexing. This structural protection is vital for C10100 Plate and Sheet intended for high-precision CNC Machining.

Environmental Protection Standards

1. Why is the C10100 strip slitting process sensitive to packaging?

If a C10100 copper strip in coil develops oxidation on the edges, the friction during C10100 strip slitting changes, leading to burrs. We use edge-protected VCI wrapping to maintain the OFE copper strip temper and surface quality.

2. How should I store an oxygen free copper wire spool after the seal is broken?

Once opened, the 4N pure copper wire is exposed to air. Store the C10100 bare copper wire in a temperature-controlled cabinet. As an OFE copper wire manufacturer, we recommend using silica gel desiccants to prevent the I-squared R losses that occur with surface oxidation.

3. Can I get custom oxygen-free copper tape widths?

Yes. We provide precision C10100 strip slitting for custom oxygen-free copper tape requirements. Every order is shipped with the same VCI-protected standards as our bulk 99.99% plates.

4. Why does an OFE copper tubing manufacturer use end-caps?

Caps prevent the "chimney effect" where air flows through the tube. This is essential for protecting the internal surface of a C10100 seamless copper tube during long-distance shipping.

5. Does the packaging affect the OFE copper rod tensile strength?

Indirectly. While transit doesn't change the bulk properties, surface pitting from corrosion acts as a stress concentrator, which can lead to fatigue failure. Maintaining a "Bright" finish on the extruded OFE copper bar is a structural safety requirement.

6. How do I remove transit stains without ruining the 101% IACS conductivity?

Use a 5% citric acid dip. It removes surface oxides without etching the metal or compromising the 99.99% purity discussed in our C10100 Oxygen-Free Electronic copper.

Every GNEE METAL C10100 shipment is secured with a multi-layered protective system specifically designed to preserve its 99.99% purity and 101% IACS surface integrity during global transit. From OFE copper tube bright annealing followed by nitrogen-purged end-caps to vacuum-sealed C10100 thick copper board wrapped in VCI corrosion inhibitors, we eliminate the risk of atmospheric tarnishing. All orders are housed in reinforced, ISPM-15 heat-treated wooden crates with precision interleaving to maintain strict C10100 plate flatness tolerance and prevent surface fretting, ensuring your material arrives "Bright" and ready for immediate, high-precision assembly in UHV, semiconductor, or EV environments.
