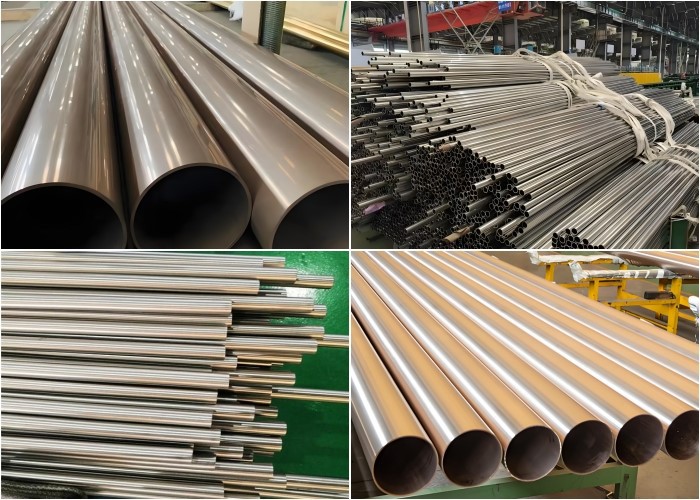

ASTM B111 Copper Nickel Seamless Tube
GNEE supplies ASTM B111 copper nickel tubes – a widely recognized standard specification developed by ASTM International that outlines requirements for copper-nickel (cupronickel) tubes.
Copper-nickel tubes are a type of non-ferrous alloy tubing made from a combination of copper and nickel, with small amounts of iron and manganese. These tubes are valued for their excellent corrosion resistance, especially in marine environments.
GNEE carries a full inventory of Copper Nickel 90/10 tubes in various sizes, widely used for marine applications due to their excellent resistance to seawater corrosion, low macrofouling rates, and good fabricability.
ASTM B111 Standard: Purpose, Scope & Significance
Purpose
Establishes requirements for copper-nickel tubes, including chemical composition, dimensions, and mechanical properties to ensure quality and performance.
Scope
Defines the types and sizes of copper-nickel tubes covered by the standard, including applicable methods of manufacture.
Significance
Highlights the importance of copper-nickel tubes in various industries, emphasizing their corrosion resistance, thermal conductivity, and compliance with the standard to ensure reliability.
Related Standards
References other ASTM standards and documents related to copper-nickel tubes, such as testing methods or companion specifications.
ASTM B111 Copper Nickel Tube – Available Types
| Type | Description |
|---|---|
| Seamless Tube | Hot rolled / cold drawn – no weld seam |
| Welded Tube | ERW (Electric Resistance Welded) |
GNEE supplies Copper Nickel Tube in:
ASTM B466 70/30 (C71500)
ASTM B466 90/10 (C70600)
ASTM B111 70/30 (C71500)
ASTM B111 C70600
ASTM B111 Copper Nickel Tube – Size Range
| Parameter | Seamless | Welded / ERW |
|---|---|---|
| Outer Diameter | 1/4" NB to 12" NB | 1" NB to 16" NB |
| Wall Thickness | Schedule 10 to Schedule 160 | Schedule 10 to Schedule 160 |
| Length | 5-7 m, 9-13 m, Single Random, Double Random, Custom | Same |
| Ends | Plain Ends / Beveled Ends | Plain Ends / Beveled Ends |
ASTM B111 Copper Nickel Tube – Full Specifications Table
| Parameter | Details |
|---|---|
| Specifications | ASTM B338, ASTM B861, ASTM B862, ASME SB338, ASME SB861, ASME SB862 |
| Grades | C70600 (90/10), C71500 (70/30), C71640, and others |
| Type | Hot Rolled / Cold Drawn / Welded / ERW |
| Delivery Conditions | As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Testing | NACE MR0175, Hardness, Flare, Hydrostatic, Eddy Current, Grain Size |
| Certificates | EN10204 3.1 / 3.2, NABL Lab Test, Third-party (SGS, TUV, DNV, LLOYDS, ABS) |
Chemical Composition of ASTM B111 Copper Nickel Tube (Selected Grades)
| UNS No. | Previously Used | Description |
|---|---|---|
| C70600 | - | 90-10 Copper-Nickel |
| C71500 | - | 70-30 Copper-Nickel |
| C70400 | - | 95-5 Copper-Nickel |
| C71000 | - | 80-20 Copper-Nickel |
| C71640 | - | Copper-nickel-iron-manganese |
| C12200 | DHPA | Phosphorized, high residual phosphorus |
| C68700 | - | Aluminum Brass, B |
| C44300 | - | Admiralty Metals |
Complete composition details for C70600: Copper remainder, Nickel 9-11%, Iron ≤1.8%, Manganese ≤1.0%, Lead ≤0.05%, Zinc ≤1.0%.
Mechanical Properties of ASTM B111 Copper Nickel Tube
| Property | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 303-414 MPa | 43,900-60,000 psi |
| Tensile strength, yield (depends on temper) | 110-393 MPa | 16,000-57,000 psi |
| Elongation at break (in 254 mm) | 42% | 42% |
| Machinability (C36000 brass = 100%) | 20% | 20% |
| Shear modulus | 52.0 GPa | 7,540 ksi |
| Poisson's ratio | 0.34 | 0.34 |
| Elastic modulus | 140 GPa | 20,300 ksi |
Equivalent Grades of ASTM B111 Copper Nickel Tube
| ASME SB111 | ASTM B111 | ASTM B466 | ASME SB171 |
|---|---|---|---|
| ASME SB359 | ASTM B122 | ASTM B469 | MIL T-22214 |
| ASME SB395 | ASTM B151 | ASTM B543 | SAE J461 |
| ASME SB466 | ASTM B171 | ASTM B608 | SAE J463 |
| ASME SB467 | ASTM B359 | DIN 2.0872 | MIL T-16420 |
| ASME SB543 | ASTM B395 | MIL C-15726 | MIL T-15005 |
Applications of ASTM B111 Copper Nickel Tube
| Industry | Specific Application |
|---|---|
| Oil & Gas | Oil and gas equipment, offshore technology |
| Desalination | Seawater desalination plants |
| Chemical | Chemical industry equipment |
| Power Generation | Power plants, heat exchangers |
| Shipbuilding | Shipbuilding industry, seawater pipework |
| Construction | Airports, malls, buildings |
| Medical | Medical industry equipment |
| Civil Engineering | Pressure vessels, reactor tanks |
| Mining | Mining industry equipment |
| Food | Food equipment industry |
C70600 (90/10) vs. C71500 (70/30)
| Property | C70600 (90/10 CuNi) | C71500 (70/30 CuNi) |
|---|---|---|
| Nickel content | 9-11% | 28-30% |
| Copper content | Remainder (~88%) | Remainder (~67%) |
| Tensile strength (ultimate) | 303-414 MPa | ~400-500 MPa |
| Yield strength | 110-393 MPa | ~170-450 MPa |
| Seawater corrosion | Excellent | Superior |
| Erosion resistance | Good | Excellent (high velocity) |
| Thermal conductivity | Higher (45 W/m-K) | Lower (~40 W/m-K) |
| Relative cost | Lower | Higher |

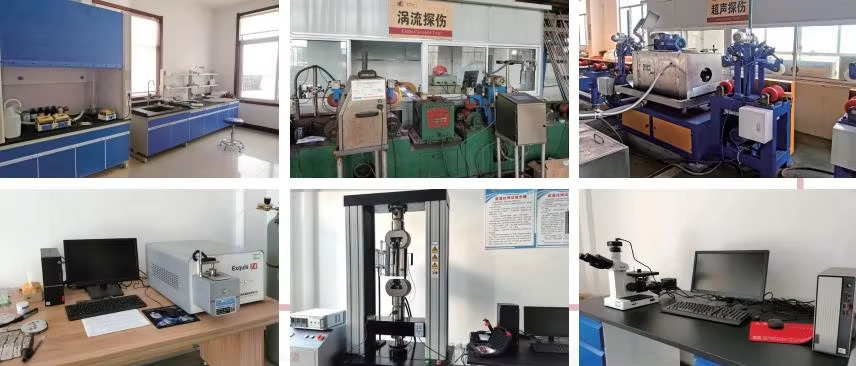

Quality Assurance & Testing
GNEE ensures all ASTM B111 copper nickel tubes undergo:
| Quality Step | Description |
|---|---|
| Raw material inspection | Chemical verification before production |
| In-process inspection | Dimensional and visual checks |
| Final testing | NACE, hardness, flare, hydrostatic, eddy current, grain size |
| Certification | EN10204 3.1 / 3.2, NABL Lab Test |
| Third-party inspection | SGS, TUV, DNV, LLOYDS, ABS (upon request) |
Visual inspection for compliance with ASTM, ASME, DIN, EN, and JIS codes and standards.
FAQ
Q1: What is the difference between ASTM B111 C70600 and ASTM B466 C70600?
A: ASTM B111 C70600 is specifically for condenser and heat exchanger tubes with tighter tolerances. ASTM B466 C70600 covers general seamless copper-nickel pipe for fluid transport. GNEE supplies both.
Q2: What are the equivalent grades for ASTM B111 C70600 copper nickel tube?
A: Equivalent grades include: ASME SB111, ASTM B466, ASME SB171, DIN 2.0872, MIL T-16420, SAE J461, and SAE J463.
Q3: What is the minimum tensile strength of ASTM B111 C70600 tube?
A: ASTM B111 C70600 tube has an ultimate tensile strength range of 303-414 MPa (43,900-60,000 psi) , with yield strength from 110-393 MPa depending on temper.
Q4: What are the available tempers for ASTM B111 copper nickel tubes?
A: Available tempers include: Annealed, Light-drawn, Hard-drawn, Hard-drawn and end annealed. GNEE commonly supplies annealed (O61) and light-drawn (H55).
Q5: What tests are required for ASTM B111 copper nickel tubes?
A: Required tests include: NACE MR0175, Hardness, Flare, Hydrostatic, Eddy Current, Grain Size, plus expansion, flattening, and residual stress tests.
Q6: Where are ASTM B111 copper nickel tubes commonly used?
A: ASTM B111 tubes are used in oil & gas equipment, offshore platforms, desalination plants, chemical plants, power plants, shipbuilding, pressure vessels, and heat exchangers.
Q7: What certifications does GNEE provide for ASTM B111 copper nickel tubes?
A: GNEE provides EN10204 3.1 / 3.2 Mill Test Certificates, NABL lab test reports, and can arrange third-party inspection by SGS, TUV, DNV, LLOYDS, or ABS.
Q8: What is the elongation of ASTM B111 C70600 tube?
A: ASTM B111 C70600 tube has a minimum elongation at break of 42% (in 254 mm), indicating excellent ductility.
Q9: Can ASTM B111 copper nickel tubes be supplied with custom branding?
A: Yes, GNEE can apply custom branding on tubes as per buyer's unique requirements, in addition to standard marking (grade, batch number, size).
Q10: What is the difference between seamless and welded ASTM B111 copper nickel tubes?
A: Seamless tubes are produced by extrusion and cold drawing – no weld seam, ideal for high pressure. Welded/ERW tubes are formed and welded – cost-effective for lower pressure applications. GNEE supplies both.
Q11: What is the elastic modulus of ASTM B111 C70600 copper nickel tube?
A: The elastic modulus of ASTM B111 C70600 is 140 GPa (20,300 ksi) , with a shear modulus of 52.0 GPa (7,540 ksi).
Marking & Packaging
| Item | Detail |
|---|---|
| Marking | Grade, batch number, size, and GNEE brand |
| Custom branding | Available upon request |
| Packaging | Standard export packing in wooden box |
| Protection | Plastic end caps, beveled protectors |

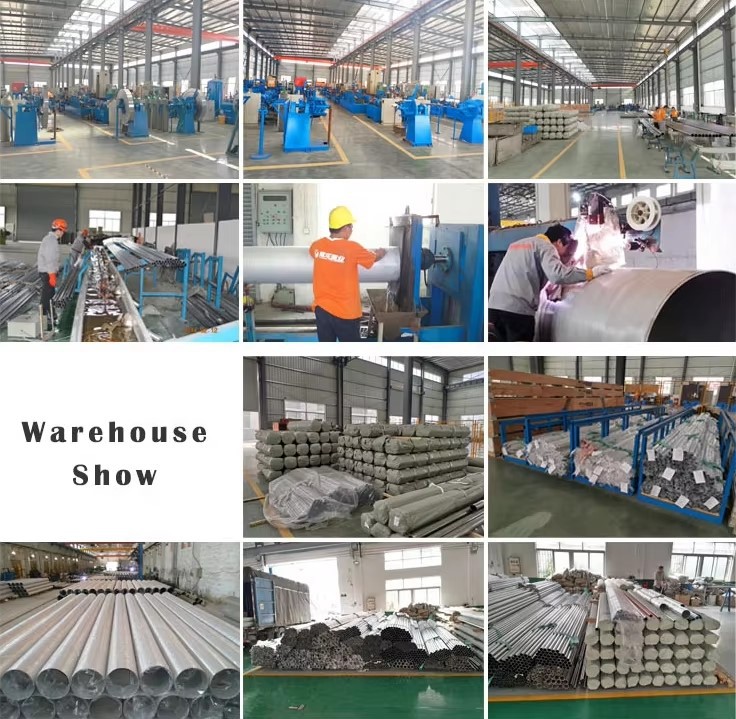

Factory – What We Use to Make C70600 Right
What we use for C70600:
Horizontal caster (billet control)
Reverse extrusion press (seamless starts here)
Cold pilger & draw benches (tube precision)
Roller leveler & slitter (plate/strip)
Annealing furnace (consistent temper)
Pickling line (clean surface)
What we don't do: mix scrap, skip heat treatment, fake test reports.
Result: C70600 that actually meets ASTM B151 / ASME SB151.
Product Range
| Product Form | Common Grades | Common Standards | Size Range | Typical Applications |
|---|---|---|---|---|
| Tubes / Pipes | C10100, C11000, C12200, C70600, C71500, C44300, C68700, C19400, C19200 | ASTM B75, B68, B111, B280, B466, EN 12449, ASME SB111 | OD: 3–500mm WT: 0.3–20mm Length: up to 18m (straight or coil) |
Heat exchangers, condensers, seawater piping, HVAC, refrigeration, plumbing, instrumentation |
| Plates / Sheets | C11000, C12200, C10100, C70600, C71500, C26000, C27200, C51100, C52100 | ASTM B152, B171, B402, EN 1652, DIN 17670, JIS H3100 | Thk: 0.3–100mm Width: ≤1200mm Length: ≤4000mm |
Busbars, roofing, gaskets, marine cladding, pressure vessels, transformer components |
| Rods / Bars | C11000, C12200, C10100, C70600, C71500, C36000, C38500, C23000, C26000 | ASTM B16, B124, B151, EN 12164, EN 12165, JIS H3250 | Dia: 3–300mm Round / hex / square / rectangular |
Valve stems, pump shafts, fasteners, machined parts, electrical connectors, screw machine components |
| Wires | C11000, C10100, C70600, C71500, C26000, C51000, C52100 | ASTM B1, B2, B3, B206, EN 12166, JIS H3510 | Dia: 0.1–12mm Coil or spool (5–200kg per coil) |
Welding filler wire, electrical wiring, mesh, springs, fasteners, jewelry, overhead line conductors |
| Strips | C11000, C26000, C27200, C70600, C52100, C51000, C19400 | ASTM B36, B465, B888, EN 1654, JIS H3100, DIN 17670 | Thk: 0.05–5mm Width: 5–400mm Coil ID: 300–500mm |
Stamping parts, terminals, shielding, spring contacts, battery connectors, lead frames, automotive components |
