GNEE maintains a comprehensive inventory of ASTM B111 C71500 copper-nickel seamless tubes and supplies ASTM B111 C71500 products in a wide range of specifications. Due to their exceptional resistance to seawater corrosion, low susceptibility to marine biofouling, and excellent formability, these products are widely utilized in the field of marine engineering.
We supply copper-nickel seamless tubes that comply with the following standards: ASTM B466 70/30 (C71500), ASTM B466 90/10 (C70600), ASTM B111 70/30 (C71500), and ASTM B111 (C70600).
Copper-nickel alloys possess outstanding resistance to marine biofouling and marine corrosion, while also exhibiting excellent formability. The addition of nickel to copper results in a significant enhancement of both its strength and corrosion resistance.
The UNS C71500 copper-nickel alloy (Cupronickel) features moderate-to-high strength and demonstrates excellent creep resistance in high-temperature environments. Compared to copper-aluminum alloys or other alloys with similar mechanical properties, this alloy carries a relatively higher cost.
The C71500 copper-nickel alloy is a type of copper alloy, specifically classified as a copper-nickel alloy (Cupronickel). CW354H is the numerical designation for this material under EN standards, while C71500 serves as its UNS number. Furthermore, its chemical composition designation under EN standards is CuNi30Mn1Fe. Its British Standard (BS) designation is CN107, and it is commercially known as Cupronickel 70/30.

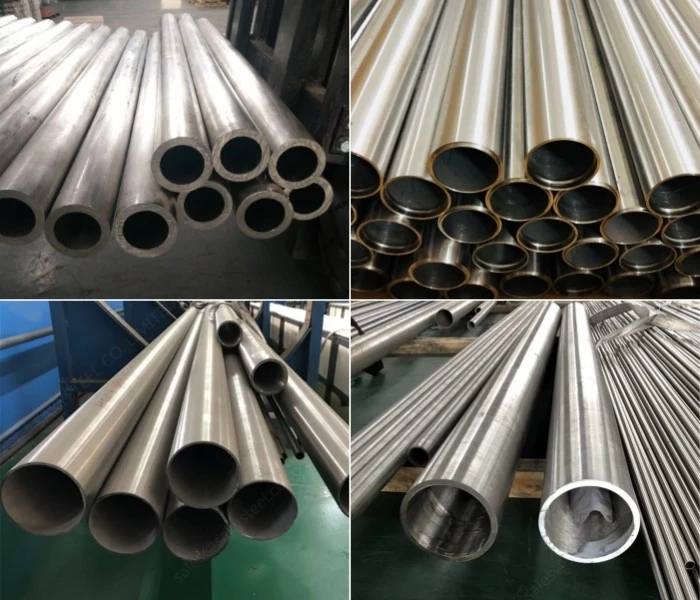

ASTM B111 C71500 Copper Nickel Seamless pipe
| ASTM B111 C71500 Copper Nickel Seamless Tubes Specification and Grade | MIL-T-16420K, ASME-SB-466, ASTM-B-466, MIL-15005, ASME-SB-111, ASTM-B-111, UNS C71500, UNS C70600, CU -NI- 90/10, CU -NI- 70/30, CN102, C70600, C70610, CW352H, DEF STAN 02-879 Annex C, DEF STAN 02-779, NES 779, BS2870, BS2874, ASTM B151, EN 12163, 2.0872 NF A51-115, CuNi10Fe1Mn, |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Application |
Chillers Heat Condensers & Exchangers Power Plants Refineries Desalination Plants Ship Building & Ship Repairs Defence High Capacity Power Plants Distiller Tubes Evaporators & Ferrules |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Type | Seamless / Hot Rolled / Cold Drawn / Welded / ERW |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Outer Diameter Size | 1/4 NB TO 12" NB 3 MM OD TO 114.3 MM OD |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Wall Thickness | Schedule 10 to Schedule 160 |
| ASTM B111 C71500 Copper Nickel Seamless Nickel Seamless Tubes Length | 5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size. |
| ASTM B111 C71500 Copper Nickel Seamless Nickel Seamless Tubes Ends | Plain Ends / Beveled Ends |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Delivery Conditions | As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Other Testing | Hardness Test, Flare, Hydrostatic Test, Eddy Current test, Grain Size Test, Eddy Current, Annealed, Tempered, Stress Relieved etc. |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Packaging | Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ASTM B111 C71500 Copper Nickel Seamless Tubes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
ASTM B111 / ASME SB111 Chemical Composition Tubes, Tubing, Specification
This specification establishes the requirements for seamless tube and ferrule stock of copper and various copper alloys of a specified range of diameters, for use in surface condensers, evaporators, and heat exchangers. The specified coppers and copper alloys are UNS No. C10100, C10200, C10300, C10800, C12000, C12200, C14200, C19200, C23000, C28000, C44300, C44400, C44500, C60800, C61300, C61400, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, and C72200. The product shall be produced by processes such as casting, extrusion, drawing, annealing, straightening, trimming, and other processes which may produce a seamless tube in the specified condition. The coppers and copper alloys shall be specifically furnished in any one of the following tempers: annealed, light-drawn, hard-drawn, or hard drawn and end annealed. Tubes for ferrule stock shall be annealed sufficiently to be fully crystallized. Some tubes are suggested to be subjected to a stress-relieving thermal treatment subsequent to straightening. The products shall be subjected to expansion, flattening, and residual stress tests. The tensile and expansion requirements for the products are specified in accordance with the temper designation. The products shall also be subjected to mercurous nitrate, ammonia vapor, Eddy-current, hydrostatic, and pneumatic tests.
| Copper or Copper Alloy UNS No. |
Previously Used Designation |
Description |
| C10100 | OFE | Oxygen-free electronic |
| C10200 | OFA | Oxygen-free without residual deoxidants |
| C10300 | . . . | Oxygen-free, extra low phosphorus |
| C10800 | . . . | Oxygen-free, low phosphorus |
| C12000 | DLPA | Phosphorized, low residual phosphorus |
| C12200 | DHPA | Phosphorized, high residual phosphorus |
| C14200 | DPAA | Phosphorized, arsenical |
| C19200 | . . . | Phosphorized, 1 % iron |
| C23000 | . . . | Red Brass |
| C28000 | . . . | Muntz Metal |
| C44300 | . . . | Admiralty Metals, B, C, and D |
| C44400 | . . . | . . . |
| C44500 | . . . | . . . |
| C60800 | . . . | Aluminum Bronze |
| C61300 | . . . | . . . |
| C61400 | . . . | Aluminum Bronze, D |
| C68700 | . . . | Aluminum Brass, B |
| C70400 | . . . | 95-5 Copper-Nickel |
| C70600 | . . . | 90-10 Copper-Nickel |
| C70620 | . . . | 90-10 Copper-Nickel-Welding Grade |
| C71000 | . . . | 80-20 Copper-Nickel |
| C71500 | . . . | 70-30 Copper-Nickel |
| C71520 | . . . | 70-30 Copper-Nickel-Welding Grade |
| C71640 | . . . | Copper-nickel-iron-manganese |
| C72200 | . . . | . . . |
Chemical Composition of ASTM B111 C71500 Copper Nickel Seamless Tubes
The chemical composition of UNS C71500 copper nickel alloys is outlined in the following table.
| Element | Content (%) |
| Copper, Cu | 70.0 |
| Nickel, Ni | 30.0 |
Physical Properties ASTM B111 C71500 Copper Nickel Seamless Tubes
The following table shows the physical properties of UNS C71500 copper nickel alloys.
| Properties | Metric | Imperial |
| Density | 8.94 g/cm3 | 0.323 lb/in3 |
| Melting point | 2140°F | 1171°C |
Mechanical Properties ASTM B111 C71500 Copper Nickel Seamless Tubes
| Properties | Metric | Imperial |
| Tensile strength, ultimate | 372-517 MPa | 54000-75000 psi |
| Tensile strength, yield (depending on temper) | 88.0-483 MPa | 12800-70100 psi |
| Elongation at break (in 381 mm) | 45.0% | 45.0% |
| Charpy impact | 107 J | 78.9 ft-lb |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 57.0 GPa | 8270 ksi |
| Poisson's ratio | 0.34 | 0.34 |
| Elastic modulus | 150 GPa | 21800 ksi |
Other Designations For Astm B111 C71500 Copper Nickel Seamless Tubes
Equivalent materials to UNS C71500 copper nickel alloys are:
| ASME SB111 | ASME SB171 | ASME SB359 | ASME SB395 | |
| ASME SB466 | ASME SB467 | ASME SB543 | ASTM B111 | |
| ASTM B122 | ASTM B151 | ASTM B171 | ASTM B359 | |
| ASTM B395 | ASTM B432 | ASTM B466 | ASTM B543 | |
| ASTM B552 | ASTM B552 | ASTM B608 | ASTM F467 | |
| ASTM F468 | DIN 2.0882 | MIL C-15726 | MIL T-15005 | |
| MIL T-16420 | MIL T-22214 | SAE J461 | SAE J463 |
ASTM B111 C71500 Copper Nickel Seamless Tubes Applications
Hydraulic lines
Fish cages for aquaculture
Heat exchangers and condensers
Desalination units
Sea water pipework
Tubes for power plants and ships
Offshore fire water systems
Pumps, valves, sheathing and fittings for ship hulls
Desalination units
Hydraulic lines
Fish cages for aquaculture
Heat exchangers and condensers
Sea water pipework
Offshore fire water systems
Tubes for power plants and ships
Pumps, valves, sheathing and fittings for ship hulls
Detection & Quality Control
| Test Method | Purpose | Acceptance Criteria |
|---|---|---|
| Optical Emission Spectrometry | Verify c71500 chemical composition | Cu 65.0-71.5%, Ni 29.0-33.0%, Fe ≤0.4%, Mn ≤1.0%, Zn ≤1.0% |
| Tensile Test | Confirm c71500 mechanical properties | UTS 372-552 MPa, Yield 138-483 MPa, Elong 30-45% |
| Flattening Test | Ductility for tube forming | No cracks when flattened |
| Hardness Test | Uniformity of temper | Per specification |
| Dimensional Check | OD, wall, length | Per ASTM B-466 |
| Hydrostatic Test | Leak tightness | Per specification |
| Eddy Current Test (when specified) | Detect pits and wall variations | Per ASTM E243 |
Packaging
c71500 copper pipe is packaged to prevent damage during transit:
| Packaging Type | Details |
|---|---|
| Hexagonal bundles | Steel straps, plywood separators, plastic end caps. Max bundle weight 2000 kg. |
| Wooden crates | ISPM-15 certified, foam-lined for finished components. |
| Steel reels | For coiled tube. Marked with heat number, size, length. |
Marking per bundle: Alloy (C71500 / 70/30), heat number, size (OD × wall), length, quantity, PO number, net/gross weight.
Moisture protection: Desiccant bags for tropical or long-term storage.
Factory Equipment
| Equipment | |
|---|---|
| Induction melting furnaces | Precise control of Cu 65.0-71.5%, Ni 29.0-33.0%, Fe ≤0.4%, Mn ≤1.0% |
| Continuous casting | Produces solid billet |
| Extrusion press | Pierces billet to hollow shell |
| Cold pilger mills | Reduces OD and wall thickness |
| Draw benches | Final sizing, smooth finish |
| Annealing furnaces | Softening after cold work |
| Straightening machines | Achieves straightness |
| Hydrostatic testers | Pressure testing |
| Metallurgical lab | OES, tensile, hardness verification |
Our Full Product Range
| Product Form | Common Standards | Typical Alloy Grades | Size Range | Typical Applications |
|---|---|---|---|---|
| Copper Pipe & Tube (Seamless) | ASTM B-111, B-466, ASME SB-111, SB-466, MIL-T-15005f, MIL-T-16420k | C71500, C70600, C12200, C68700, C44300 | Per ASTM / MIL standard | Seawater cooling systems, heat exchangers, condensers, shipbuilding, feedwater heaters |
| Copper Rod & Bar | ASTM B151, MIL-C-15726, SAE J461, J463 | C71500, C70600, C36000, C46400 | Per ASTM standard | Marine hardware, propellers, crankshafts, hull components |
| Copper Sheet & Plate | ASTM B171, ASME SB171, MIL-C-15726 | C71500, C70600, C46400 | Per ASTM standard | Condenser plates, marine hardware |
| Copper Tube (Condenser) | ASTM B-111, ASME SB-111 | C71500, C70600 | Per ASTM standard | Power plant condensers, feedwater heaters |
| Copper Wire | MIL-C-15726 | C71500, C70600 | Per MIL standard | Welding filler, marine hardware |
| CNC Machined Components | Custom drawing | C71500, C70600, C36000, C63000, C17200 | Custom tolerances | Pump bodies, valve components, marine hardware |
