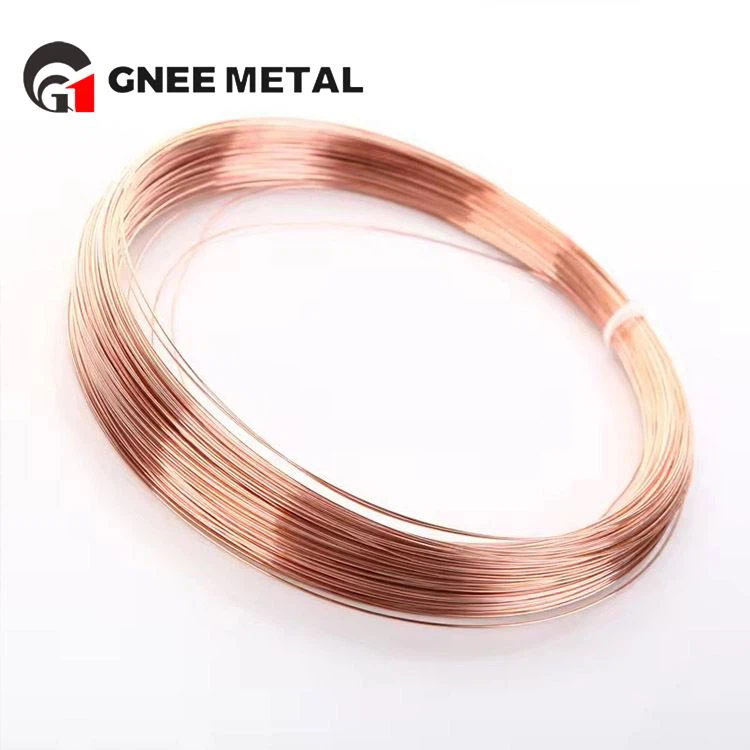

C35600 Copper Ground Wire
video

C35600 Copper Ground Wire

C35600 grounding copper wire is a kind of grounding wire made of C35600 lead brass.C35600 lead brass is a high-quality brass alloy with a variety of excellent properties, and these properties make C35600 grounding copper wire have a wide range of applications in many fields.
Send Inquiry
Chat Now
Product Introduction

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of c35600 copper ground wire in China, also supports customized service. Welcome to buy discount c35600 copper ground wire for sale here from our factory. Quality products and reasonable price are available.



C35600 fine copper wire has excellent strength and hardness, with tensile strengths typically between 200-300 MPa and hardnesses between HB 60-100. This makes C35600 grounding copper wire able to withstand large mechanical stresses and tensile forces, ensuring the stability and reliability of the grounding system.C35600 solid copper wire has good corrosion resistance and is able to resist the erosion of most chemical mediums, especially in water and air with better performance. This enables C35600 copper wire to maintain its performance in harsh environments and extend its service life.



Top quality C35600 solid copper wire

annealed copper wire

Chemical Composition

  Elements
Cu(1) Pb Zn Fe(2)
(1) Cu + Sum of Named Elements 99.5% min.
(2) For flat products, the iron shall be 0.10% max.
Min (%) 60.0 2.0
Max (%) 63.0 3.0 Rem 0.15



Physical Properties

Melting Point - Liquidus°F 1660
Melting Point - Solidus°F 1630
Densitylb/cu in. at 68°F 0.307
Specific Gravity 8.5
Electrical Conductivity% IACS at 68°F 26
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 67
Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) 11.4
Specific Heat CapacityBtu/ lb /°F at 68°F 0.09
Modulus of Elasticity in Tensionksi 14000
Modulus of Rigidityksi 5300

The main uses of C35600 grounding copper wire include:
Electrical system: used for grounding of electrical equipment, such as generators, transformers, switchgear, etc., to ensure the safe operation of the equipment.
Construction engineering: used for the grounding system of buildings, such as lightning protection grounding, electrical grounding, etc., to protect buildings and personnel from electrical hazards.
Communication system: used for the grounding of communication equipment, such as base stations, switches, etc., to ensure the normal operation of the communication system.



C35600 metal copper wire supply with excellent performance

copper flexible cable



Highly reliable team supply C35600 fine copper wire

flexible copper wire

We can provide high quality products, good service and competitive price. We have been committed to producing high quality copper products such as copper tubes, copper wires, copper plates, copper strips, copper rods and other copper products.
Our products are exported to more than 150 countries and have entered key industries such as petroleum, chemical, shipbuilding, automobile and large power stations.


Hot Tags: c35600 copper ground wire, China c35600 copper ground wire manufacturers, suppliers, factory, conductive copper tape, C11000 sheet of brass metal, C21000 copper ground wire, C12000 copper earth rod, C21000 copper earth rod, C10200 copper tape
