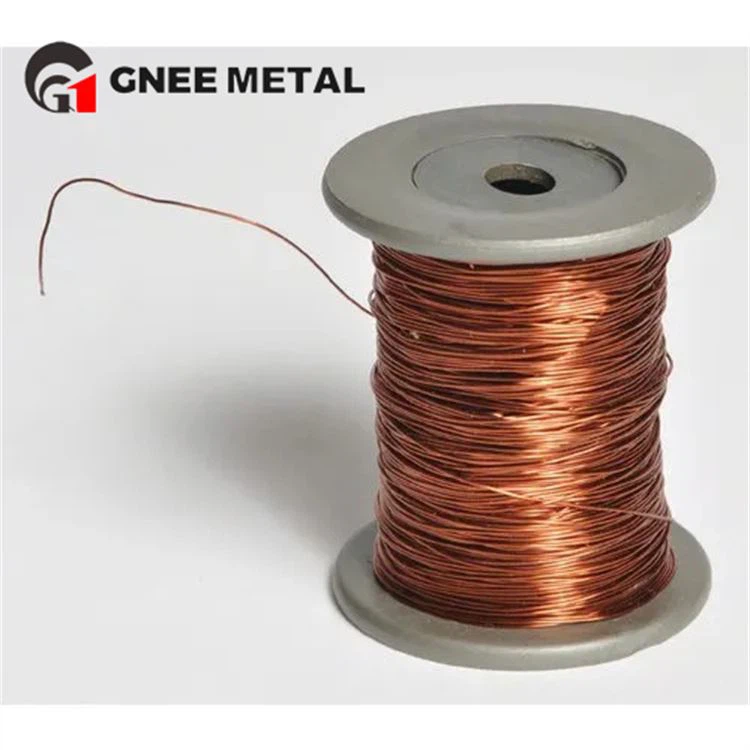

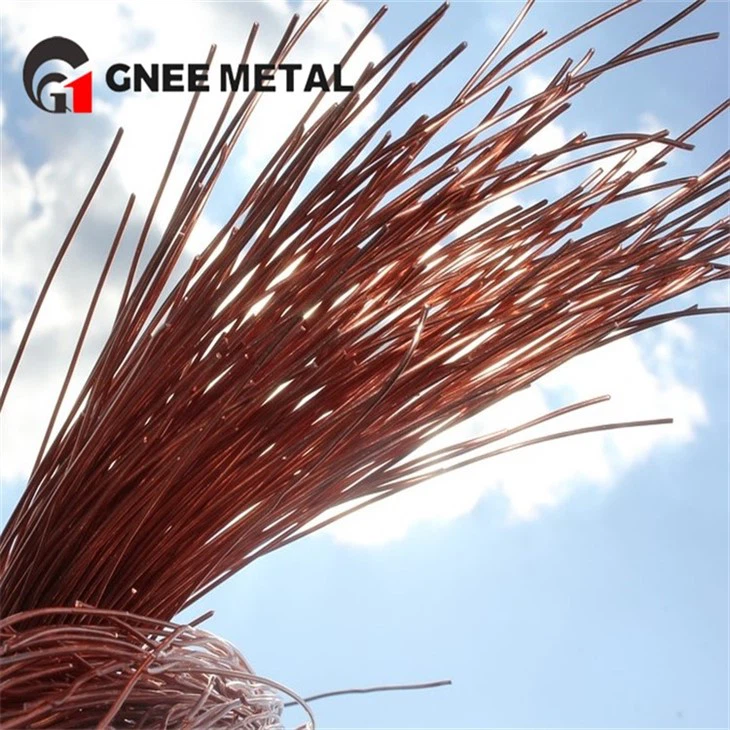

Flexible H63 Copper Wire
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of flexible h63 copper wire in China, also supports customized service. Welcome to buy discount flexible h63 copper wire for sale here from our factory. Quality products and reasonable price are available.
H63 solid copper wire has good mechanical properties and maintains good plasticity even at low temperatures, making it easy to process and fabricate. It has excellent machinability, making it efficient in machining for a variety of cutting operations. In addition, H63 copper wire coil is easy to fiber weld and solder, which makes it possible to make a variety of connections during the manufacturing process. In terms of corrosion resistance, H63 brass wire also has an excellent performance, being able to remain stable for a longer period of time in a variety of environments. Nevertheless, due to its corrosion-prone rupture characteristics, special attention is still needed when using it.
Top quality H63 soft copper wire
| Physical Property | Specification |
|---|---|
| Density (g/cm³) | 8.45 |
| Tensile Strength (MPa) | ≥ 390 (for diameter 3-40mm in Y state) |
| ≥ 295 (for diameter 3-40mm in M state) | |
| Elongation (%) | ≥ (for Y state, specific value not provided) |
| ≥ 44 (for M state, diameter 3-40mm) | |
| Hardness (HV) | 90-165 |
| Electrical Conductivity | Standard conductivity for brass alloys |
| Thermal Conductivity | Standard thermal conductivity for brass alloys |
| Coefficient of Thermal Expansion | Standard coefficient of thermal expansion for brass alloys |
From the perspective of chemical composition, H63 brass is mainly composed of copper, nickel, iron, lead and zinc. Among them, the content of copper is between 62.0-65.0%, the content of nickel is 0.5%, the content of iron is 0.15%, the content of lead is 0.08%, while zinc is the main added element, and the rest of the amount is the residual amount. These chemical composition ratios allow H63 brass to excel in mechanical properties such as tensile strength ≥ 370 MPa, elongation ≥ 15% (δ10/%), and elongation ≥ 18% (δ5/%). These properties make H63 brass have a wide range of application prospects in various manufacturing fields.
Supply of H63 metal copper wire with excellent performance
Why choose our H63 indoor copper wire
GNEE has 16 years of experience in copper products and exports. The company is headquartered in Henan Province, China. The company is adjacent to the Beijing-Hong Kong-Macao Expressway and has more than 200 employees who are dedicated to the company. The company has a registered capital of 10 million RMB and covers an area of more than 350,000 square meters. The company has passed SGS certification.
We provide high quality products, good service and competitive price. We have been committed to producing copper tubes, copper plates, copper foils, copper wires, copper rods and so on.
Our products are exported to more than 150 countries and have entered key industries such as petroleum, chemical industry, railroad, automobile and large power station.
