C22000 Copper Wire
video

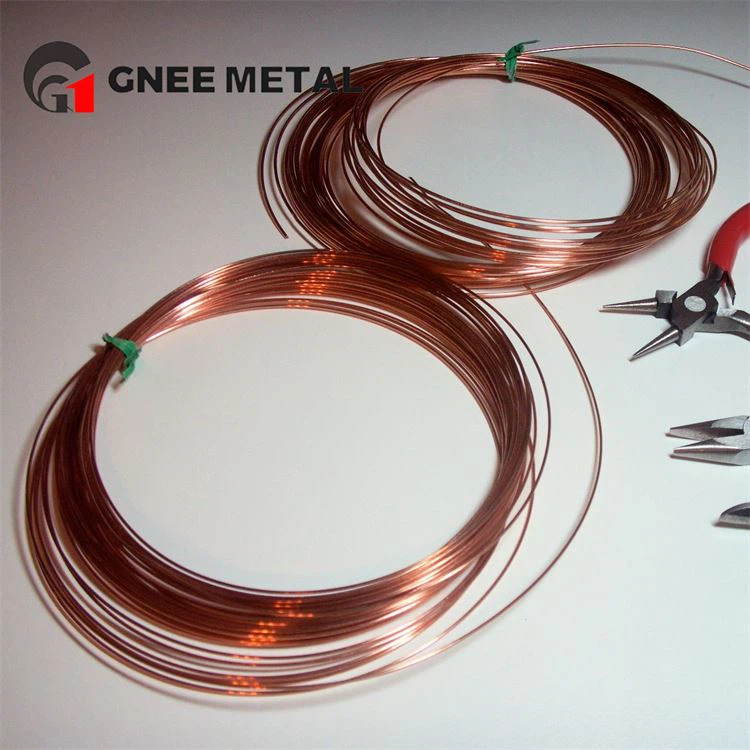

C22000 Copper Wire

C22000 copper wire, also known as electrical brass wire, is an important metal material that has a wide range of applications in the electrical industry.
Send Inquiry
Chat Now
Product Introduction

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of c22000 copper wire in China, also supports customized service. Welcome to buy discount c22000 copper wire for sale here from our factory. Quality products and reasonable price are available.



Here are some key properties and applications of C22000 copper alloy wire:
Chemical composition: C22000 fine copper wire is primarily composed of copper, with small amounts of zinc, tin, and lead. Its chemical composition ensures its unique physical and chemical properties.
CORROSION RESISTANCE: C22000 brass wire has excellent corrosion resistance and is able to withstand corrosion in a variety of environments, such as ammonia, chlorine, and hydrogen sulfide. This material is also able to withstand high temperatures and high humidity environments, making it ideal for use in the manufacture of automotive and marine components.
Malleability: C22000 copper wire is very malleable and can be machined into a variety of shapes and sizes, making it ideal for use in the manufacture of a wide range of mechanical parts.



First-class C22000 solid copper wire production process

copper cable wire



Physical Properties


Melting Point - Liquidus°F 1910
Melting Point - Solidus°F 1870
Densitylb/cu in. at 68°F 0.318
Specific Gravity 8.8
Electrical Conductivity% IACS at 68°F 44
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 109
Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) 10.2
Specific Heat CapacityBtu/ lb /°F at 68°F 0.09
Modulus of Elasticity in Tensionksi 17000
Modulus of Rigidityksi 6400

Due to its excellent performance and characteristics, C22000 bare copper wire has a wide range of applications in many fields such as electrical, construction, and mechanical. For example, it can be used to manufacture electronic components, furniture fittings, musical instruments and so on.


Specifications

The following specifications cover Copper Alloys C22000

ASTM B130

ASTM B131

ASTM B134

ASTM B135

ASTM B36

ASTM B372

ASTM B587

ASTM B694

MIL B-18907

MIL B-20292

MIL C-3383

MIL W-6712

MIL W-85

QQ W321

SAE J461

SAE J463

UNS C22000



Packing of C22000 bare copper wire

copper wire for earthing

pure copper wire



Why choose our C22000 copper craft wire

coiled copper wire

We have more than 100 sets of various testing instruments, the main equipment includes American non-destructive testing system, spectral analyzer, carbon and sulfur tester, universal testing machine, ultrasonic testing system, fatigue testing machine and so on.
With more than 10 years of export experience, our products are exported to USA, UK, Germany, France, Brazil, Japan, Korea, India, Vietnam, Australia, Philippines, Zambia, Indonesia and other countries.
