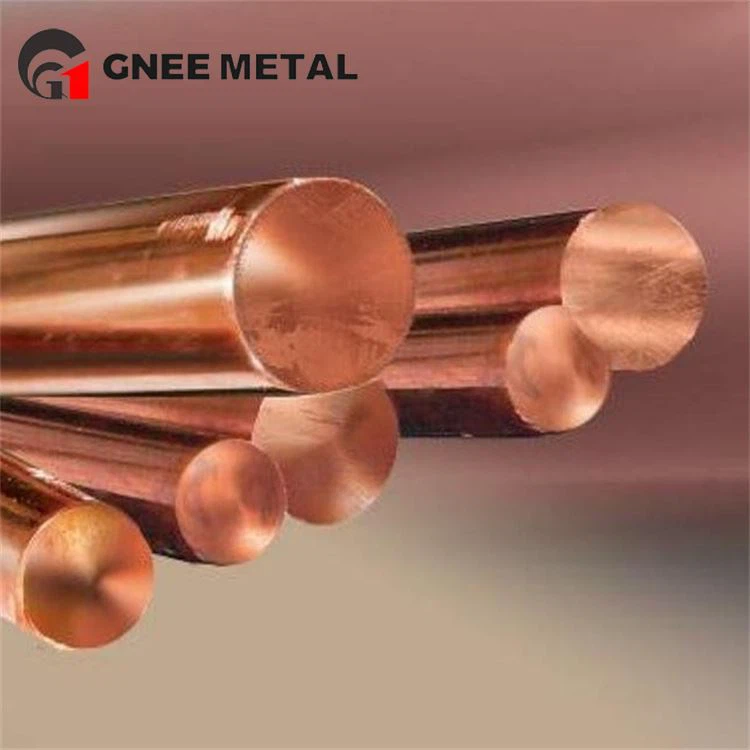

C35600 Solid Copper Earth Rod
C35600 Solid Copper Earth Rod
C35600 Solid Copper Earth Rod

C35600 Solid Copper Earth Rod

C35600 copper alloy rod is a material with excellent electrical conductivity. The main role of the grounding rod is to safely conduct the current from electrical equipment into the ground, so good electrical conductivity is one of the basic requirements of the grounding rod.The electrical conductivity of C35600 copper round rod ensures that the grounding system can effectively conduct the current into the ground, which guarantees the normal operation of the electrical equipment and the safety of the personnel.

Send Inquiry

Chat Now

Product Introduction

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of c35600 solid copper earth rod in China, also supports customized service. Welcome to buy discount c35600 solid copper earth rod for sale here from our factory. Quality products and reasonable price are available.

C35600 copper metal rods have high corrosion resistance in a variety of corrosive environments such as acid, alkali, salt, etc., especially in seawater. This characteristic makes C35600 copper rods maintain good performance in humid and corrosive environments, which extends the service life of the grounding system.C35600 corrosion-resistant copper rods have good plasticity and toughness, and are easy to be processed into various shapes and sizes. This allows C35600 copper rods to be customized and processed according to actual needs, meeting the grounding needs of various complex terrains and equipment.

First-class C35600 alloy bar production process

copper round bar

**Chemical Composition**
	Elements
	Cu⁽¹⁾	Pb	Zn	Fe⁽²⁾
(1) Cu + Sum of Named Elements 99.5% min. (2) For flat products, the iron shall be 0.10% max.
Min (%)	60.0	2.0
Max (%)	63.0	3.0	Rem	0.15

**Fabrication Properties**
Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Poor
Capacity for Being Hot Formed	Fair
Machinability Rating	100

C35600 copper alloy is widely used in aerospace, marine engineering, chemical equipment, electrical and electronic fields. In these fields, grounding rods are one of the important measures to ensure the safe operation of equipment.C35600 copper rods are widely used as grounding rod materials in these fields.

Large-scale factory production of C35600 industrial copper rods

cu bars

Highly reliable team supply C35600 conductive copper rods

copper flat bar

GNEE is located in Anyang City, Henan Province, adjacent to the Yellow Sea, with convenient export transportation conditions. Our main products include copper tubes, copper rods, copper foils, copper wires, copper plates, etc., which are widely used in automobile, home appliances, construction and other industries. Our products are exported to more than 150 countries and regions such as Northeast China, North China, East China, Europe, Middle East, Southeast Asia, Australia and so on. We sincerely welcome friends from all over the world to visit our company and cooperate on the basis of long-term mutual benefit.
