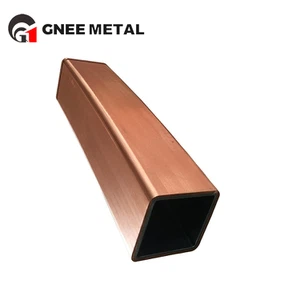

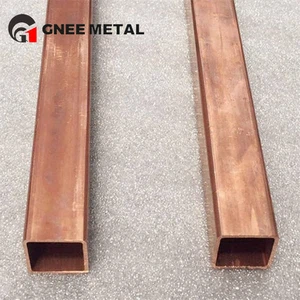

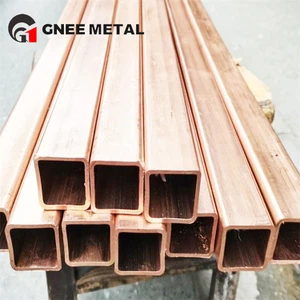

What Copper Square Tube Is
Copper square tube is tubular copper product with a square outer section, produced by drawing a round tube over a shaped plug, by forming and welding strip into a square section, or by extruding a hollow square profile. The square form combines the thermal and electrical performance of copper with a flat mounting face, which makes it useful wherever components must be bolted, clamped or brazed to the tube itself rather than to a separate bracket.
The material is normally electrolytic tough pitch copper UNS C11000 for electrical applications, or phosphorus deoxidised copper UNS C12200 where the tube will be brazed or welded, since the residual phosphorus improves joint quality. Oxygen free grades are used where the highest conductivity or freedom from hydrogen embrittlement is required. Common tempers are annealed, half hard and hard, and these determine how easily the tube can be bent or flattened on site.
Grades, Tempers and Standards
| Grade | Designation | Characteristics | Typical use |
|---|---|---|---|
| Electrolytic tough pitch copper | UNS C11000 | Highest conductivity, standard electrical grade | Busbar, conductors, coils |
| Phosphorus deoxidised copper | UNS C12200 | Good weldability and brazing behaviour | Plumbing, heat exchangers, fabricated sections |
| Oxygen free copper | UNS C10100 and C10200 | Very low oxygen, high conductivity | Vacuum and electrical equipment |
Dimensions are stated as outside side length and wall thickness, with either sharp or radiused corners, and wall thickness tolerances follow the applicable standard. Seamless tube to ASTM B75 and welded or fabricated tube to the corresponding copper tube standards cover round and shaped sections, while GB/T 1527 and EN 12449 cover the metric equivalents, and refrigeration grade square tube is specified against ASTM B280 where it will be part of a sealed refrigerant circuit. Mechanical requirements on tensile strength, yield strength, elongation and hardness are applied for the grade and temper ordered, and temper is also controlled by grain size and by the amount of cold reduction.
Properties That Matter in Use
Copper conducts heat and electricity better than almost any other common engineering metal, so a square section carries more current per unit of cross sectional area and removes heat more quickly than a comparable steel or aluminium section. The metal is non magnetic, retains ductility at low temperature, and forms a protective patina on exposed surfaces, which is why architectural copper weathers to a stable brown and eventually green appearance.
Mechanically, the square profile is stiffer against bending in both axes than a round tube of similar wall thickness, and its flat faces distribute clamping loads well. This is valuable for busbar assemblies, for inductor and transformer windings, and for water cooled conductors where a plate or a termination is bolted directly to the tube. The main practical limitations are that the section is more expensive to produce than round tube and that sharp corner sections concentrate stress, so tight radius bending is more difficult than with round tube.
Typical Applications
Water cooled busbar and high current conductor in induction heating and welding equipment.
Transformer, reactor and induction coil windings.
Refrigeration and air conditioning components built into sealed circuits.
Architectural and decorative trim, handrails and cladding profiles.
Heat exchanger and cooling plate assemblies that require a flat mounting face.
Electromagnetic shielding frames and equipment chassis components.
Fabrication and Joining
Square copper tube is cut with a saw or abrasive disc and deburred inside and outside. Bending is carried out in the annealed temper with a mandrel that supports the bore, and the bend radius should be generous, particularly with sharp cornered sections. Flattening and forming are done hot or in the annealed condition to avoid cracking.
Joining methods include brazing, silver soldering, welding and, in electrical assemblies, bolted or clamped connections. Phosphorus deoxidised grade is preferred for welded and brazed work because it does not suffer from the porosity problems associated with oxygen bearing copper when it is heated in a reducing atmosphere. For welded joints, an inert gas shield and a filler metal matched to the grade should be used, and the joint should be cleaned of oxide and oil beforehand. Where the tube carries current, joint resistance matters as much as mechanical strength, so contact surfaces should be clean, flat and protected from oxidation, and bolted joints should be tightened to the specified torque with suitable hardware.
Inspection Points and Common Pitfalls
Confirm grade and temper, since C11000 and C12200 behave differently during welding and brazing.
Check corner condition and wall thickness tolerance, which affect both carrying capacity and appearance.
Verify the temper is correct for the forming operation; hard temper tube cracks if bent tightly.
Clean and flatten contact faces before making electrical connections.
Keep the tube dry in store and protect it from contact with steel, to avoid staining and galvanic effects.
Check conductivity or resistivity where the tube is used as an electrical conductor rather than as a structural member.
FAQ
Q: How is copper square tube made?
It is produced by drawing round tube through a shaped die over a plug, by forming and welding strip into a square section, or by extruding a hollow square profile. The route chosen determines whether the section has a seam.
Q: Which copper grade is used for square tube?
Electrolytic tough pitch copper C11000 for electrical duty, phosphorus deoxidised copper C12200 where brazing or welding is important, and oxygen free grades where the highest conductivity and freedom from hydrogen embrittlement are needed.
Q: Can copper square tube be bent?
Yes, in the annealed temper with a mandrel supporting the bore and a generous bend radius. Sharp cornered sections are more difficult to bend than radiused or round sections.
Q: Why is flat sided copper tube used for electrical work?
The flat faces give a stable mounting surface for bolted terminations, and the section is stiffer than round tube of similar wall, which suits busbar, winding and water cooled conductor applications.
Q: How is the tube joined?
By brazing, silver soldering, welding or bolted clamping. Phosphorus deoxidised grade is preferred for welded and brazed joints because it avoids the porosity that can occur with oxygen bearing copper heated in a reducing atmosphere.
Q: Does copper square tube corrode outdoors?
It forms a stable patina that protects the metal beneath, so it weathers to a brown and eventually green surface. In aggressive atmospheres and in contact with dissimilar metals, additional protection or isolation is advisable.
Q: What tolerances apply to square tube?
Outside side length, corner radius, wall thickness and straightness tolerances are stated in the applicable standard, for example ASTM B75 or the corresponding metric standard, and should be quoted in the purchase specification.
