What is C28000 brass?
UNS C28000 brass, often known as Muntz metal, is a copper-zinc alloy composed of roughly 60% copper and 40% zinc. It was named after George F. Muntz, who invented the alloy in the early 1800s. C28000 brass is corrosion-resistant, machinable, and has high strength and ductility. Inconel may also be easily linked using soldering or brazing, making it appropriate for a wide range of applications.
The bright yellow color of UNS C28000 brass is one of its distinguishing characteristics, making it an appealing choice for decorative applications such as jewelry, ornaments, and architectural embellishments. It is also simple to process and can be molded, machined, and formed using a variety of techniques, including casting, extrusion, and forging, making it a versatile material for a wide range of tasks. Because of its high thermal conductivity, C28000 brass can be utilized to make industrial equipment such as heat exchangers and radiators. It is also fairly conductive, making it a popular copper alternative in electrical and electronic components.
c28000 brass equivalent
China (GB/T): The equivalent is H62 brass. This is the most common and direct counterpart.
Europe (EN): The equivalent is CuZn37. It is also identified by the material number CW508L.
Japan (JIS): The equivalent is C2800 brass.
International (ISO): The equivalent is CuZn37.
Chemical composition of C28000 CuZn38 brass strip
Cu ：60.5～63.5
Zn：balance
Pb：≤0.08
P：≤0.01
Fe：≤0.15
Sb ：≤0.005
Bi：≤0.005
inpurity：≤0.5
Physical Properties
|
Properties |
Metric |
Imperial |
|
Density |
8.47 g/cm3 |
0.306 lb/in3 |
|
Melting point |
904°C |
1660°F |
Mechanical properties for C28000 CuZn38 brass strip
|
Grade |
Temper |
Tensile Strength Mpa |
Elongation% |
Hardness HV |
|
H62 C28000 CuZn38 CZ109 |
M |
≥290 |
≥35 |
<95 |
|
Y2 |
350~470 |
≥20 |
90 ~130 |
|
|
Y |
410~630 |
≥10 |
125~165 |
|
|
T |
≥585 |
≥2.5 |
≥155 |
C28000 Muntz Metal Typical Uses
Some of the typical areas that C28000 is used in are as follows:
Architectural Panels
Decorations
Door Frames
Hardware
Trim
Bolts
Brazing Rods
Condenser Plates
Evaporator Tubes
Heat Exchanger Tubes
Hot Forgings
Large Nuts and Bolts
Valve Stems
FAQ
| What is C28000 brass? C28000 brass is a standardized copper-zinc alloy under the UNS system, commonly known as Muntz Metal. It contains approximately 60% copper and 40% zinc, offering a good balance of strength, formability, and corrosion resistance. |
| What is the chemical composition of C28000 brass? The nominal composition is 60.0-63.0% copper, 0.30% maximum lead, 0.07% maximum iron, and the remainder being zinc. The total of other impurities is limited to 0.15%. |
| What is C28000 brass equivalent to? C28000 brass is the direct U.S. equivalent to China's H62 brass, Europe's CuZn37 (CW508L), and Japan's C2800 brass. |
| What are the mechanical properties of C28000 brass? In the annealed condition, typical properties include a tensile strength of ≥ 370 MPa, yield strength of ≥ 150 MPa, elongation of ≥ 20%, and a hardness of approximately 65 HRB. |
| What is the machinability rating of C28000 brass? C28000 brass has a fair machinability rating of around 40% on the standard scale where free-cutting brass C36000 is rated at 100%. It produces continuous chips. |
| What is C28000 brass used for? C28000 brass is widely used in architectural hardware (hinges, locks), electrical connectors, heat exchanger components, plumbing fittings, decorative trim, and various stamped parts. |
| Can C28000 brass be welded? Yes, C28000 brass can be welded and brazed using appropriate techniques and filler metals designed for copper alloys, such as silicon-bronze or brass filler rods. |
Our product range
1. Pure Copper (Sheet, Tube, Wire)
Primary Grades: T1 (C11000), T2 (C10100). We prioritize C11000 (T1) for its excellent conductivity.
Standards: ASTM B152 (Sheet), ASTM B75/B88 (Tube), ASTM B1/B3 (Wire), EN, JIS, GB/T.
Typical Sizes:
Tube: OD 6mm – 200mm.
Sheet: Thickness 0.5mm – 50mm.
Wire: Diameter 1.0mm – 10mm.
2. Phosphorus Deoxidized Copper (Tube, Sheet)
Primary Grades: TP1 (C12000 / CW023A), TP2 (C12200). Ideal for welding and plumbing.
Standards: ASTM B188, ASTM B75/B88, EN 12451, JIS H3300.
Typical Sizes:
Tube: OD 8mm – 150mm.
Sheet: Thickness 1.0mm – 30mm.
3. Brass (Strip & Coil)
Primary Grades: H96, H68, H62 (CuZn37 / C28000). We strongly recommend H62 for its excellent balance of strength and machinability.
Standards: ASTM B36, ASTM B134, EN 1652, JIS H3100.
Typical Sizes:
Strip/Coil: Thickness 0.1mm – 3.0mm, Width up to 600mm.
Get the complete product catalog

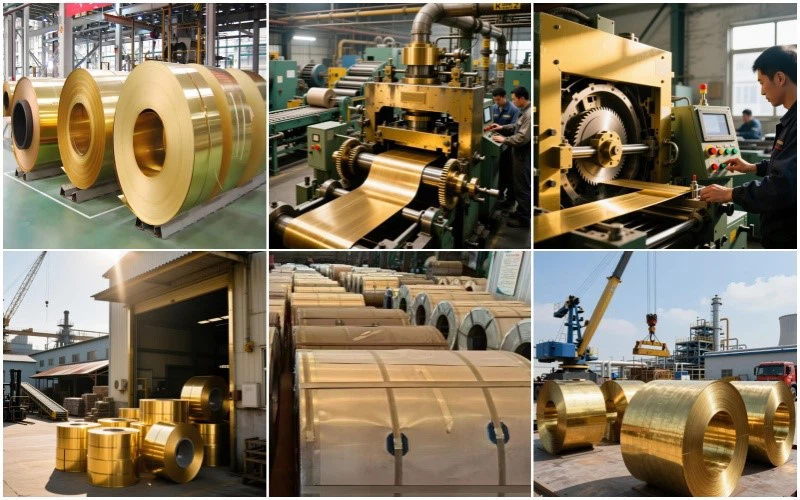

Our factory
Our facility is equipped with industry-advanced continuous casting and rolling production lines, precision rolling mills, multi-pass drawing units, and automated forming equipment, enabling efficient and stable transformation from copper rods to finished products. Our core machinery allows us to flexibly manufacture a full range of grades-including pure copper (e.g., C11000/T1), phosphorus deoxidized copper (e.g., C12200/TP2), and brass (e.g., H62)-in the form of sheets, tubes, rods, strips, and wires. We also provide tailored processing services such as cutting, slitting, and precision finishing.
