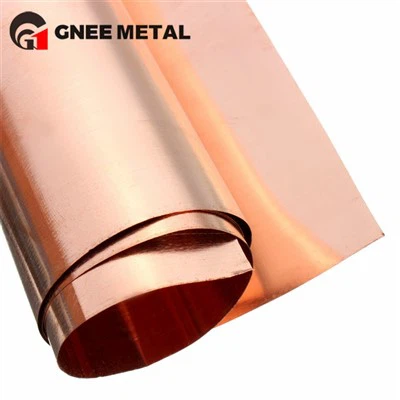

C1100 Pure Copper Earthing Strip
Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of c1100 pure copper earthing strip in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount c1100 pure copper earthing strip for sale here from our factory. Customized orders are welcome.
Pure copper coil/strip, also known as electrolytic copper strip, is mainly composed of pure copper, with a purity generally above 99.9%. The remarkable feature of copper strip is its excellent electrical and thermal conductivity, which is attributed to the physical properties of pure copper.
|
GB |
Composition(%) |
|||
|
Cu |
P |
O |
Other |
|
|
TU1 |
99.97 |
0.002 |
less than 0.002 |
balance |
|
T2 |
99.9 |
- |
- |
balance |
|
TP1 |
99.9 |
0.004-0.012 |
- |
balance |
|
TP2 |
99.9 |
0.015-0.040 |
- |
balance |
|
ASTM |
Composition(%) |
|||
|
Cu |
P |
O |
Other |
|
|
C10200 |
99.95 |
0.001-0.005 |
- |
balance |
|
C11000 |
99.9 |
- |
- |
balance |
|
C12000 |
99.9 |
0.004-0.012 |
- |
balance |
|
C12200 |
99.9 |
0.015-0.040 |
- |
balance |
Application:Electronic
· Thickness:0.035- 2.5mm
· Width:7--610mm
· Grade:C1100 C1020
· Surface:Smooth
· Supply Ability:8000 Square Meter/Square Meters per Year
|
Classification/um |
12 |
18 |
35 |
|
|
Width/mm |
520 |
520 |
520 |
|
|
Purity(%) |
≧99.9 |
|||
|
Density(g/m³) |
8.89 |
|||
|
Area Weight(g/㎡) |
107±3 |
160±5 |
311±6 |
|
|
Tensile Strength(N/㎜²) |
Normal |
≧0.5 |
≧1.0 |
≧1.0 |
|
180℃30Min |
≧5 |
≧7 |
≧10 |
|
|
Roughness |
Ra(μm) |
≦0.35 |
||
|
Rz(μm) |
≦2 |
|||
|
Anti-oxidization |
200℃,≧90Minnondiscolouring |
|||
|
temperature85℃,humidity85%,nondiscolouring |
||||
|
Solder Resistance |
288℃/10S no bubbles |
|||
|
Peel Strength(N/㎜) |
≧1.0 |
≧1.0 |
≧1.0 |
|
|
Surface Quality |
No wrinkles, no color difference, no scratches, no convex and concave points |
|||
|
Storage Condition |
Temperature0℃≦t≦25℃,RH≦60%,90 days |
|||
|
Chemical Resistance(%) |
≦5 |
|||
