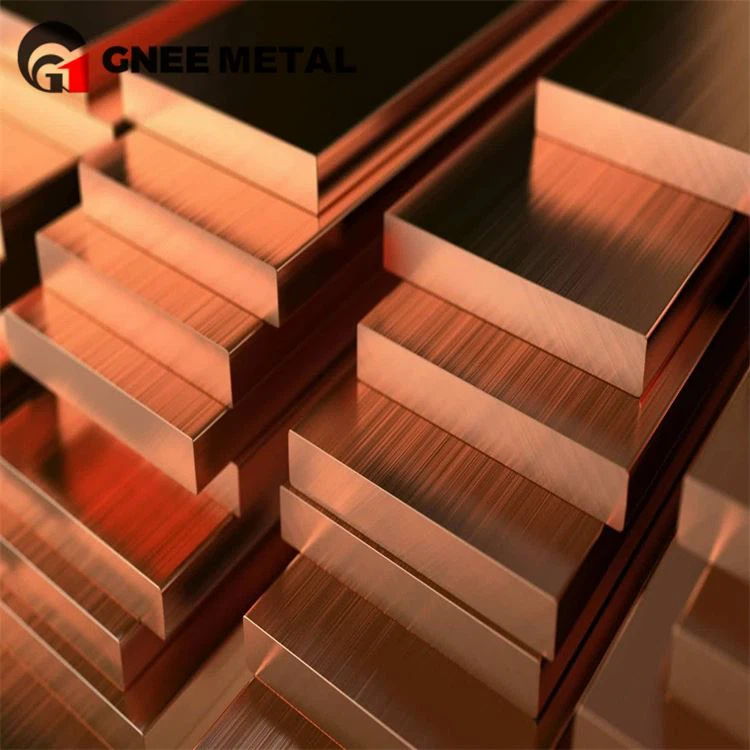

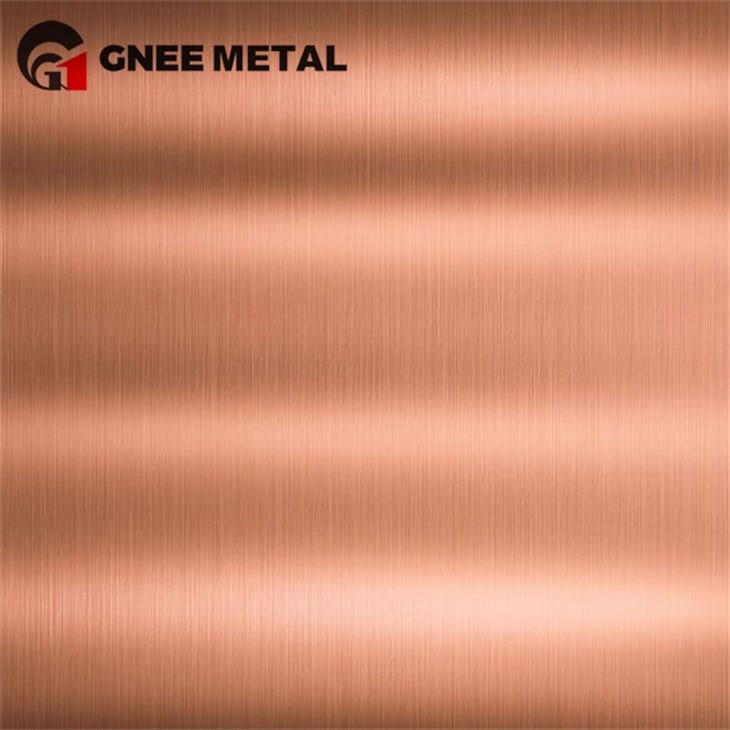

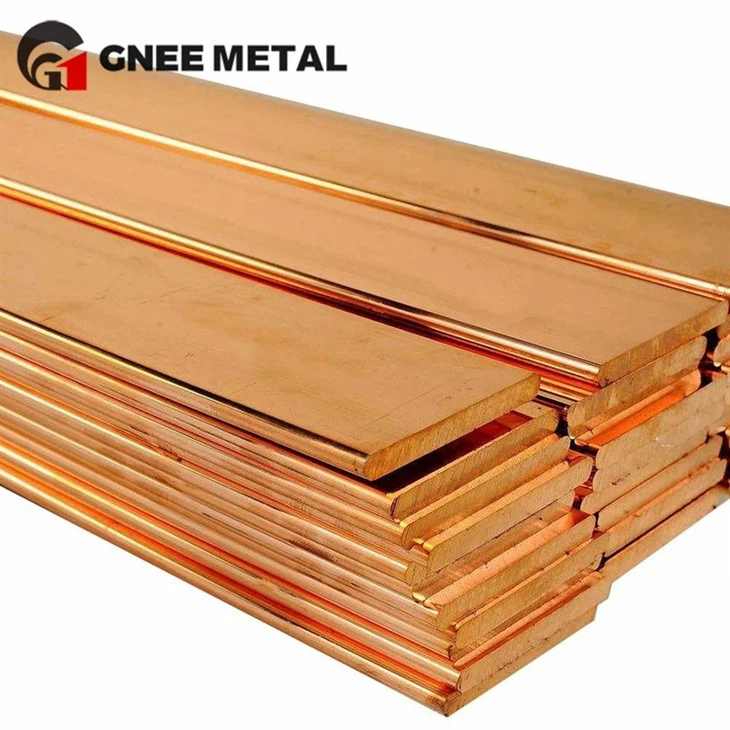

Sheet Of C10100 Copper Metal
Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of sheet of c10100 copper metal in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount sheet of c10100 copper metal for sale here from our factory. Customized orders are welcome.
C10100 Oxygen Free Copper Electrode (also known as OFE) is 99.99% pure copper with 0.0005% oxygen content.C101 has an IACS conductivity of at least 101%. This copper is finished in its final form in a tightly controlled oxygen-free environment.C10100 OFE has high ductility, high electrical and thermal conductivity, and low volatility under high vacuum conditions.

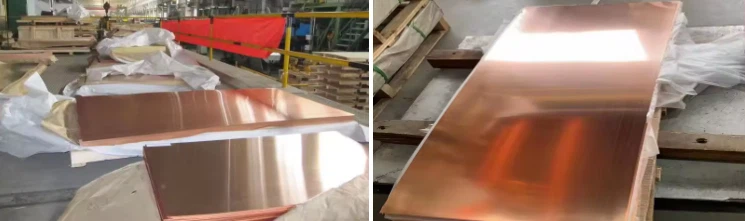

Industry Leading C10100 Pure Copper Sheet Production Technology
| (1)Volume and weight basis, minimum value. | |
| Melting Point - Liquidus°F | 1981 |
|---|---|
| Melting Point - Solidus°F | 1981 |
| Densitylb/cu in. at 68°F | 0.323 |
| Specific Gravity | 8.94 |
| Electrical Conductivity% IACS at 68°F | 101 (1) |
| Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F | 226 |
| Coefficient of Thermal Expansion 68-21210 to -6 power per °F (68 – 212°F) | 9.4 |
| Coefficient of Thermal Expansion 68-39210 to -6 power per °F (68 – 392°F) | 9.6 |
| Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) | 9.8 |
| Specific Heat CapacityBtu/ lb /°F at 68°F | 0.092 |
| Modulus of Elasticity in Tensionksi | 17000 |
| Modulus of Rigidityksi | 6400 |
| Technique | Suitability |
|---|---|
| Soldering | Excellent |
| Brazing | Excellent |
| Oxyacetylene Welding | Fair |
| Gas Shielded Arc Welding | Good |
| Coated Metal Arc Welding | Not Recommended |
| Spot Weld | Not Recommended |
| Seam Weld | Not Recommended |
| Butt Weld | Good |
| Capacity for Being Cold Worked | Excellent |
| Capacity for Being Hot Formed | Excellent |
| Forgeability Rating | 65 |
| Machinability Rating | 20 |
Typical uses for C10100 oxygen-free copper for electronics:
Automotive: automotive rectifiers
Electronics: transistor element bases, high resistivity low temperature shunts, bus conductors, waveguides, hollow conductors, vacuum tube anodes, coaxial cables, vacuum seals, conductors, glass-to-metal seals

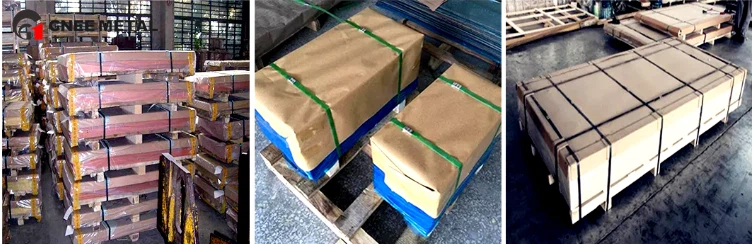

Packaging of C10100 grounded copper sheet
Why choose our C10100 thin copper sheet
We are a professional copper products manufacturer and exporter specializing in copper tubes, rods, wires, plates, and strips. Our factory is equipped with advanced production lines, including continuous casting and upcasting machines, cold rolling mills, drawing machines, annealing furnaces, and precision cutting equipment, enabling us to deliver products with consistent quality and tight tolerances. Every batch undergoes rigorous testing-including chemical composition analysis, mechanical property testing, dimensional inspection, electrical conductivity testing, and eddy current/ultrasonic defect detection-and we support third-party inspection (SGS, BV, etc.) to ensure full compliance with ASTM, EN, JIS, and GB standards. With competitive pricing, flexible MOQs, and professional export service, we look forward to building long-term partnerships and supplying copper products that meet your exact requirements.
