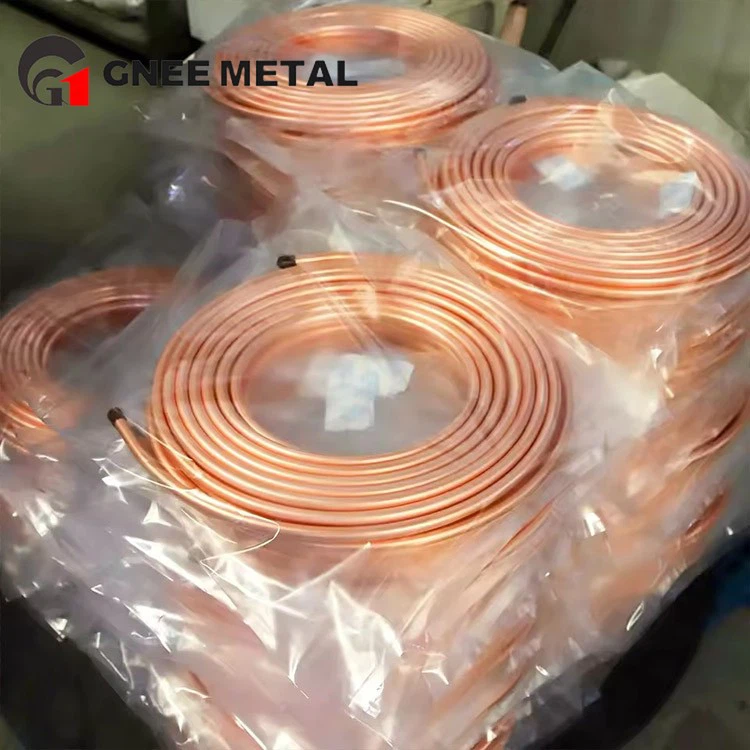

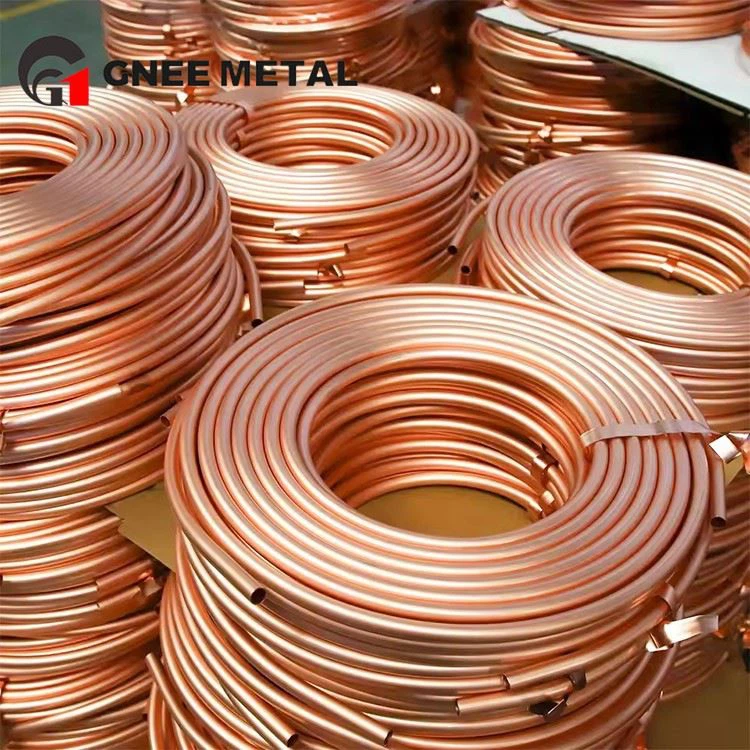

TP1/C12000 Evaporator Flexible Copper Tubing
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of tp1/c12000 evaporator flexible copper tubing in China, also supports customized service. Welcome to buy discount tp1/c12000 evaporator flexible copper tubing for sale here from our factory. Quality products and reasonable price are available.
What is TP1/C12000 flexible copper tubing?
Copper (also known as pure copper) primarily consists of copper with a content typically above 99.90%. Its high purity endows the material with excellent electrical and thermal conductivity, with its electrical conductivity second only to silver. The crystal structure of copper is face-centered cubic, which provides it with exceptional plasticity, allowing it to undergo both cold and hot pressure processing to form various shapes such as tubes, plates, and wires.
TP1 is a type of phosphorus-deoxidized copper. During the copper smelting process, a trace amount of phosphorus is added as a deoxidizing agent to remove oxygen from the molten copper, thereby enhancing its toughness and corrosion resistance. Compared to pure copper, TP1 phosphorus-deoxidized copper has a higher recrystallization temperature, meaning it maintains better strength and shape stability at elevated temperatures, along with improved resistance to high-temperature oxidation. The silver element within it further enhances its creep resistance, making it less prone to plastic deformation under prolonged exposure to heat and stress.
Standards We Supply for TP1/C12000 Copper Tubes
| Standard System | Standard Number | Title / Scope |
|---|---|---|
| ASTM (American) | ASTM B280 | Standard Specification for Seamless Copper Tube for Air Conditioning and Refrigeration Field |
| ASTM B88 | Standard Specification for Seamless Copper Water Tube | |
| ASTM B75 | Standard Specification for Seamless Copper Tube | |
| ASTM B68 / B68M | Standard Specification for Seamless Copper Tube, Bright Annealed | |
| EN (European) | EN 12735-1 | Copper and copper alloys – Seamless round copper tubes for air conditioning and refrigeration – Part 1: Tubes for piping systems |
| EN 1057 | Copper and copper alloys – Seamless, round copper tubes for water and gas in sanitary and heating applications |
Why are C12000 copper tubes used in evaporators?
High Thermal Conductivity Ensures Efficient Heat Exchange
TP1/C12000 copper alloy has a copper content ≥99.9%, and its electrical conductivity is 40–50% higher than that of brass and bronze. Its thermal conductivity is close to that of pure copper (approximately 380–400 W/(m·K)), significantly improving the heat transfer efficiency between the refrigerant and heating medium within the evaporator, shortening evaporation time, and reducing energy consumption.
Excellent Corrosion Resistance Adapts to Complex Operating Conditions
In high-end industrial evaporation systems such as pharmaceuticals, lithium batteries, and food processing, evaporators often come into contact with chlorine-containing, sulfur-containing, or strongly alkaline media. C12000 copper alloy exhibits stable resistance to various chemical corrosive media, maintaining structural integrity even in humid and high-temperature environments, preventing leaks or efficiency degradation due to corrosion.
Good Machinability and Weldability
This material possesses excellent cold and hot working properties, allowing it to be drawn into small-diameter copper tubes and rolled into thin-walled heat exchange fins, meeting the manufacturing requirements of complex flow channel structures in evaporators. Meanwhile, its excellent solderability and electroplating properties facilitate reliable sealing connections with joints, flanges, and other components, improving the overall airtightness and service life of the system.
High thermal stability ensures safe long-term operation
The TP1/C12000 has a softening temperature of 1500℃, far exceeding the operating temperature of conventional evaporators (typically <200℃). It maintains its mechanical strength even under frequent start-stop or instantaneous overheating conditions, preventing material deformation or failure and ensuring safe and stable system operation.
Wide Application of C12000 Copper Alloys in Evaporators
In industrial practice, C12000 and similar high-purity copper alloys have been widely used in heat exchange applications such as automotive radiators, air conditioning evaporators, and chemical condensation and evaporation systems. User test feedback shows that evaporators using C12000 copper tubes exhibit a heat transfer efficiency decay rate of less than 5% after 10,000 hours of continuous operation, significantly outperforming ordinary stainless steel or aluminum.
C12000 Data Table
| Property Category | Parameter | Value Range | Test Standard / Notes |
|---|---|---|---|
| Chemical Composition (wt%) | Copper (Cu) + Silver (Ag) | ≥ 99.90% | ASTM B152, oxygen-free, low-phosphorus copper |
| Phosphorus (P) | 0.015% – 0.040% | Critical for deoxidation; eliminates hydrogen embrittlement | |
| Lead (Pb) | ≤ 0.005% | Controlled to prevent hot shortness | |
| Oxygen (O) | ≤ 0.005% | Low-oxygen design ensures high-temperature stability | |
| Iron (Fe) | ≤ 0.05% | - | |
| Zinc (Zn) | ≤ 0.03% | - | |
| Sulfur (S) | ≤ 0.005% | - | |
| Total Impurities | ≤ 0.10% | - | |
| Physical Properties | Thermal Conductivity | 380 – 400 W/(m·K) | Near-pure copper performance; optimal for heat exchange |
| Electrical Conductivity | ≥ 98.0% IACS | International Annealed Copper Standard | |
| Density | ≈ 8.94 g/cm³ | Based on pure copper reference | |
| Melting Point | ≈ 1083 °C | - | |
| Softening Temperature | ≈ 1500 °C | Far exceeds typical evaporator operating temperatures (<200 °C) | |
| Mechanical Properties (Cold Worked) | Tensile Strength (σb) | 220 – 360 MPa | Varies with temper condition (O to H04) |
| Yield Strength (σs) | 150 – 300 MPa (typical) | Not strictly specified; inferred from temper state | |
| Elongation (δ) | 35% – 45% | O temper: ≥45%; H04 temper: ≥35% | |
| Hardness (HR F Scale) | 54 – 93 | H00 (1/8 hard) to H04 (hard) | |
| Hardness (HR Superficial 30T) | 18 – 62 | Applicable for thin gauges; thickness-dependent |
C12000 equivalent grade
| Standard System | Equivalent Designation | Material Type | Key Composition (wt%) |
|---|---|---|---|
| ASTM (USA) | C12000 | Oxygen-Free Phosphorus-Deoxidized Copper | Cu ≥99.90%, P: 0.015–0.040%, O ≤0.005% |
| GB/T (China) | TP1 | Oxygen-Free Copper | Cu ≥99.95%, P: 0.001–0.040%, O ≤0.003% |
| JIS (Japan) | C1020 | Oxygen-Free Copper (OFC) | Cu ≥99.95%, O ≤0.001% |
| EN (EU) | CW005A | Oxygen-Free Copper | Cu ≥99.95%, O ≤0.003% |
| Industry Common Code | - | - | - |

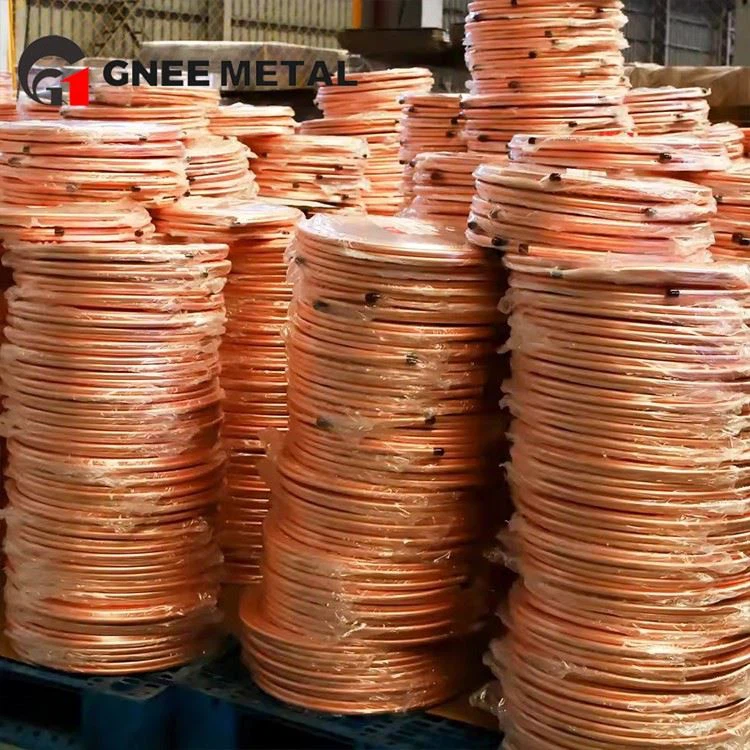

Our factory
We are a strategic copper tube supplier dedicated to providing zero-defect delivery for high-end manufacturing. Our fully integrated digital quality control system-spanning from spectral analysis and online eddy current testing to AI-monitored critical dimension inspection-ensures batch consistency of TP1/C12000 copper tubes reaches 99.98%, seamlessly matching the pace of your automated production lines. Through weld-ready pretreatment and a precise material identification system, we help you eliminate preprocessing steps on the production line, reduce in-line inspection workload, and control assembly leak rates at the PPM level. We offer JIT delivery solutions synchronized with your production cycles and provide complete material traceability documentation, ultimately achieving dual optimization of your production line efficiency and total assembly quality cost.
