C10200 Soft Copper Pipe
Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of c10200 soft copper pipe in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount c10200 soft copper pipe for sale here from our factory. Customized orders are welcome.

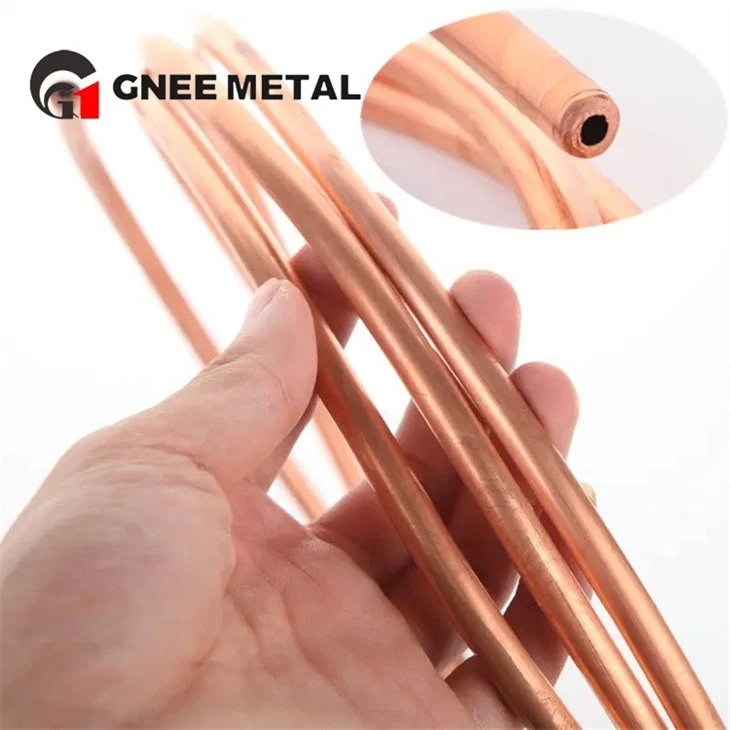

What is the C10200 Soft Copper Pipe?
C10200 is a high purity oxidized copper (OFC) with excellent electrical and thermal conductivity, processability and corrosion resistance. It is used in a wide range of applications in electrical, electronic, heat exchanger and condenser manufacturing, as well as decorative and artwork production.C10200 copper alloy is often used for its extremely high purity (copper content is usually above 99.95%) and very low residual oxygen content (usually less than 0.001%).C10200 seamless copper tubing has excellent electrical and thermal conductivity, and because of the virtually lack of oxygen, it has very good performance in soldering and machining, and is not prone to porosity or cracking. It has very good performance in soldering and machining and is not prone to porosity or cracking.

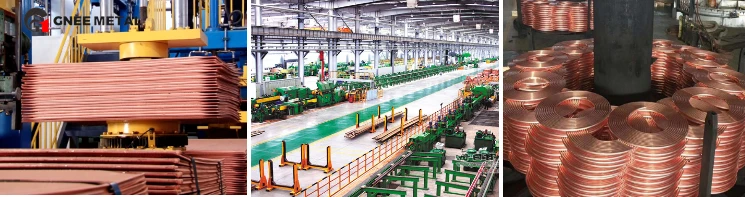

Industry Leading Technology to Produce C10200 Copper Hoses
Chemical Composition
| Element | Content (%) |
|---|---|
| Cu | 99.95 |
Physical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.90 g/cm3 | 0.322 lb/in3 |
| Melting point | 1083°C | 1981°F |
Mechanical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Hardness, Vickers (½ hard) | 75 - 90 | 75- 90 |
| Hardness, Vickers ( full hard) | 90 - 105 | 90 - 105 |
| Tensile strength, ultimate (soft) | 215 - 254 MPa | 31200 - 36800 psi |
| Tensile strength, ultimate ( hard) | 261 - 441 MPa | 37900 - 64000 psi |
| Tensile strength, yield (@ strain 0.100%, varies with temper and cold work) | 49.0 - 78.0 MPa | 7110 - 11300 psi |
| Elongation at break | 35 - 55% | 35 - 55% |
| Modulus of elasticity | 117 GPa | 17000 ksi |
| Poisson's ratio | 0.31 | 0.31 |
| Izod impact (type of Impact test unknown. Range reflects both soft and hard tempers) | 34 - 61J | 25.1 - 45 ft-lb |
| Fatigue strength (test specimen: annealed 25 mm diam. Rod) | 67 MPa | 9720 psi |
| Machinability (based on 100% machinability for BS2874 CZ 121 free-machining brass (20% of 100% for UNS C360000) | 20% | 20% |
| Shear modulus | 44 GPa | 6380 ksi |
C10200 copper tube, also known as purple copper tube, is a pressed and drawn seamless tube.C10200 copper coil has good electrical and thermal conductivity, is the main material for electronic conductive fittings, heat dissipation fittings, and has become the first choice for modern contractors to install, heating, and refrigeration piping, installed in all residential commercial properties. Copper pipe has strong corrosion resistance, not easy to oxidize, easy to bend.
Applications
Electronics & Semiconductor: Cooling lines for high-power components, vacuum interrupter chambers, and waveguide tubes.
HVAC & Refrigeration: High-efficiency refrigerant lines, evaporator and condenser coils where purity prevents system contamination.
Medical & Laboratory: Medical gas distribution systems (Oxygen, Nitrous Oxide, Vacuum) requiring non-contaminating surfaces.
Cryogenics: Transfer lines for liquid nitrogen (LN2) and liquid helium due to excellent performance at low temperatures.
Aerospace & Defense: Hydraulic lines, instrumentation tubing, and specialized cooling loops.

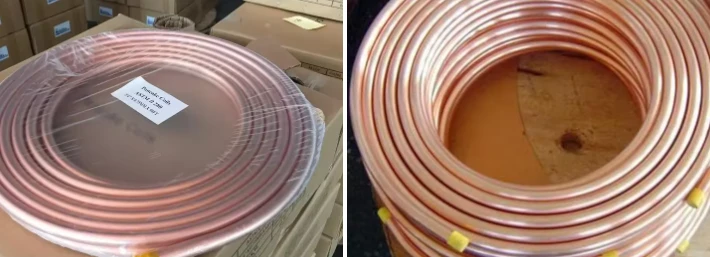

Available Dimensions
| Nominal Size (Inch) | Outside Diameter (mm) | Wall Thickness (mm) | Coil Length (Feet) |
|---|---|---|---|
| 1/4" | 6.35 | 0.76 / 0.89 | 50 / 100 |
| 3/8" | 9.52 | 0.81 / 1.02 | 50 / 100 |
| 1/2" | 12.70 | 0.89 / 1.24 | 50 / 100 |
| 5/8" | 15.88 | 1.02 / 1.24 | 50 / 100 |
| 3/4" | 19.05 | 1.07 / 1.47 | 50 / 100 |
| 1" | 25.40 | 1.27 / 1.65 | 50 / 100 |

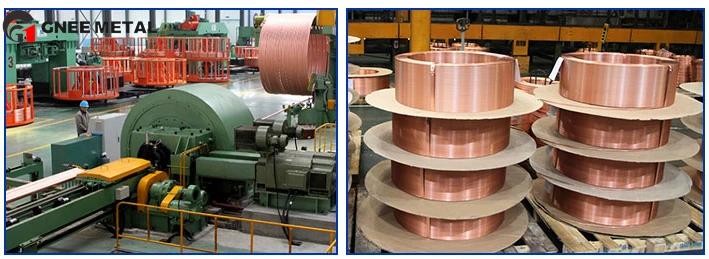

Factory Advantages
Quality Control System:We have a strong quality control system in place to ensure that our products meet industry standards and specifications. Our quality control team utilizes state-of-the-art equipment and inspection tools to check the quality of each product.
Continuous Improvement:Our factories are committed to continually improving production processes and equipment. We invest in research and development to keep up with the latest technological advances and to ensure that our production equipment is up-to-date.
Team Advantage
We have a team of highly skilled professionals who are committed to providing high quality products and services to our customers. Our team has the following advantages over our competitors:
Technical expertise: Our team has excellent technical expertise in the production of copper products.
Experience: Our team has many years of experience in the industry and a deep understanding of the market.
Customer Oriented: We are customer oriented and prioritize our customers' needs.
Responsive: Our team is responsive and able to quickly resolve any issues that arise.
Communication: We have excellent communication skills and keep our customers informed throughout the production process.
