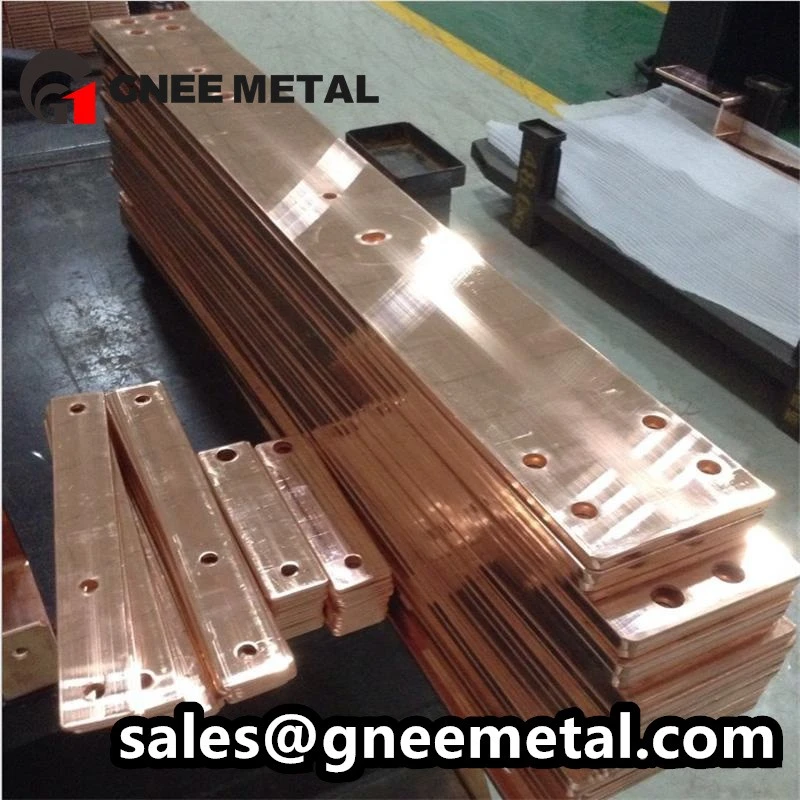

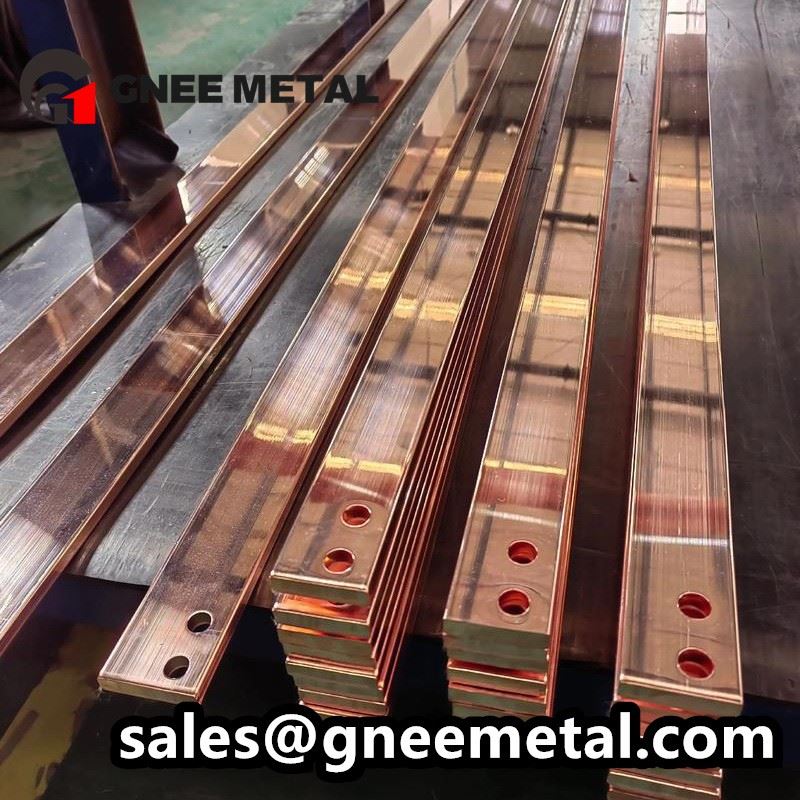

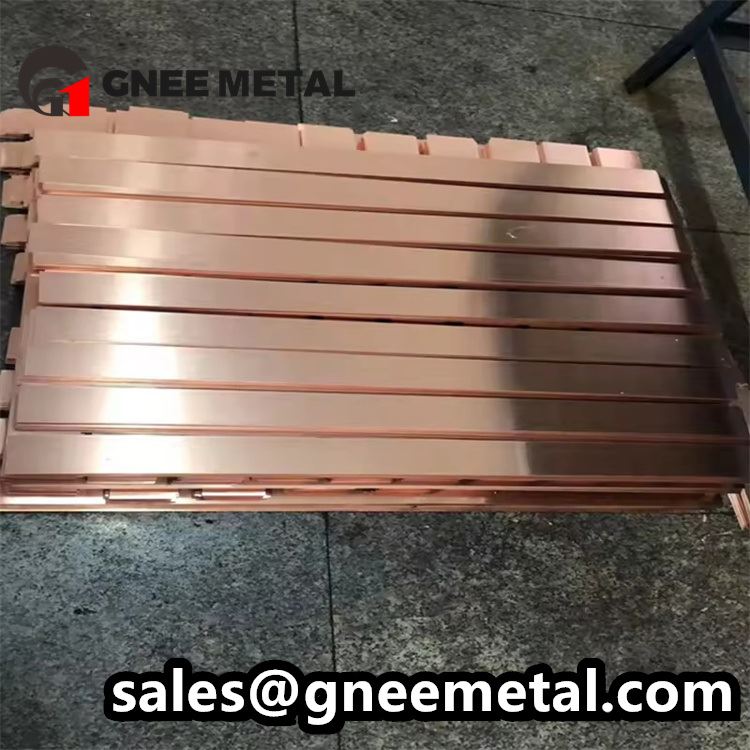

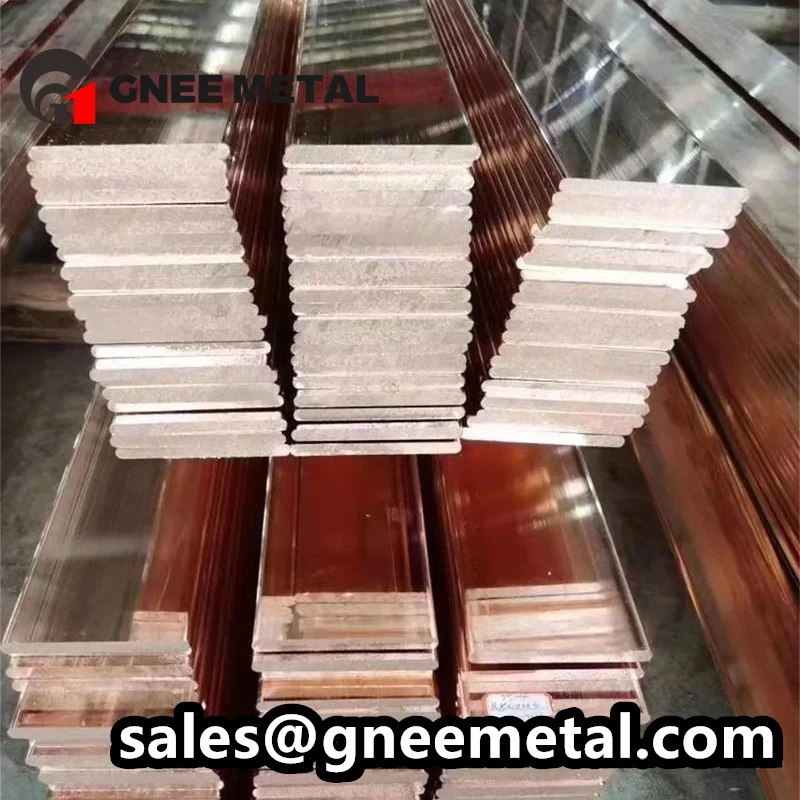

C11000 Copper Busbar
Thickness: 3mm – 30mm
Width: 10mm – 200mm
Length: Up to 6,000mm (custom cut available)
Temper: Hard, half-hard, or annealed
Surface Finish: Bare, tin-plated, silver-plated, or nickel-plated
Conductivity: ≥ 101% IACS
Custom Options: Hole punching, bending, cutting to size
Standards: ASTM B187, BS EN 13601
Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of c11000 copper busbar in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount c11000 copper busbar for sale here from our factory. Customized orders are welcome.
What Is C11000 ETP Copper Busbar?
C11000 ETP (Electrolytic Tough Pitch) copper busbar is the most widely used copper grade for electrical applications. It contains 99.9% copper with a small amount of oxygen (0.02-0.04%) which improves its electrical conductivity and workability.
| Parameter | Value |
|---|---|
| Material Grade | C11000 (ETP) / Cu-ETP |
| Purity | ≥99.9% |
| Oxygen Content | 0.02-0.04% (200-400 ppm) |
| Conductivity | ≥100% IACS(58 MS/m) |
| Standards | ASTM B187, BS EN 13601, GB/T 5585 |
| Temper | Half-hard (H02), Hard (H04), or Annealed (O) |
C11000 Material Certificate
C11000 Busbar Chemical and Physical Properties
Chemical Composition of C11000 (ASTM B187)
| Element | Content (%) |
|---|---|
| Copper (Cu) | ≥99.90% |
| Oxygen (O) | 0.02 - 0.04% |
| Silver (Ag) | ≤0.002% |
| Other impurities | ≤0.08% total |
Physical Properties of C11000
| Property | Value |
|---|---|
| Electrical conductivity | ≥100% IACS(58 MS/m) |
| Thermal conductivity | 401 W/m·K |
| Density | 8.94 g/cm³ |
| Tensile strength (H02) | 200-250 MPa |
| Elongation (H02) | ≥15% |
| Hardness (H02) | HV 60-85 |
| Melting point | 1083°C |
C11000 has the same conductivity as C10100 (oxygen-free) at a much lower price. Unless your application requires oxygen-free copper (vacuum, hydrogen brazing), C11000 is the smart choice.
| Standard | C11000 Equivalent Grade |
|---|---|
| UNS | C11000 |
| EN | CW004A |
| DIN / Werkstoff Nr. | 2.0060 / 2.0065 |
| JIS | C1100 |
| GB / Chinese | T2 |
| ISO | Cu-ETP |
| BS (Old) | C101 |
How Many Amps Can C11000 Copper Busbar Carry?
The current carrying capacity of C11000 copper busbar depends on cross-section, ambient temperature, and installation conditions. The table below shows ampacity for bare flat busbars at 35°C ambient, 65°C max operating temperature (AC 50/60Hz).
Ampacity of C11000 Flat Copper Busbar
| Width (mm) | Thickness (mm) | Cross-section (mm²) | Current (Amps) |
|---|---|---|---|
| 20 | 3 | 60 | 180 A |
| 20 | 5 | 100 | 250 A |
| 25 | 5 | 125 | 300 A |
| 25 | 6 | 150 | 350 A |
| 30 | 5 | 150 | 370 A |
| 30 | 6 | 180 | 410 A |
| 40 | 5 | 200 | 460 A |
| 40 | 6 | 240 | 520 A |
| 50 | 5 | 250 | 550 A |
| 50 | 6 | 300 | 620 A |
| 60 | 6 | 360 | 720 A |
| 60 | 10 | 600 | 1050 A |
| 80 | 6 | 480 | 900 A |
| 80 | 10 | 800 | 1350 A |
| 100 | 10 | 1000 | 1600 A |
| 120 | 10 | 1200 | 1850 A |
How many amps can C11000 copper busbar carry? For ambient temperatures above 35°C, multiply by 0.88 at 45°C or 0.76 at 55°C. For DC applications, add 5-8%. For busbars in enclosed enclosures with poor ventilation, reduce by 10-15%.
Standard Sizes of C11000 Copper Busbar
Below are standard sizes of C11000 copper busbar available from stock. Custom sizes also available.
| Width (mm) | Thickness (mm) | Standard Length (mm) |
|---|---|---|
| 20 | 3, 5, 6 | 2000 / 4000 |
| 25 | 3, 5, 6 | 2000 / 4000 |
| 30 | 5, 6, 10 | 2000 / 4000 |
| 40 | 5, 6, 10 | 2000 / 4000 |
| 50 | 5, 6, 10 | 2000 / 4000 |
| 60 | 6, 10, 15 | 2000 / 4000 |
| 80 | 6, 10, 15 | 2000 / 4000 |
| 100 | 10, 15, 20 | 2000 / 4000 |
| 120 | 10, 15, 20 | 2000 / 4000 |
Standard sizes of C11000 copper busbar comply with ASTM B187. Custom widths from 10mm to 250mm, thicknesses from 3mm to 30mm, and lengths up to 6000mm are available with MOQ 50 pieces.
| Width (mm) | Thickness (mm) | Weight (kg/m) | Weight per 2000mm (kg) | Weight per 4000mm (kg) |
|---|---|---|---|---|
| 20 | 3 | 0.54 | 1.08 | 2.16 |
| 20 | 5 | 0.89 | 1.78 | 3.56 |
| 20 | 6 | 1.07 | 2.14 | 4.28 |
| 25 | 3 | 0.67 | 1.34 | 2.68 |
| 25 | 5 | 1.12 | 2.24 | 4.48 |
| 25 | 6 | 1.34 | 2.68 | 5.36 |
| 30 | 5 | 1.34 | 2.68 | 5.36 |
| 30 | 6 | 1.61 | 3.22 | 6.44 |
| 30 | 10 | 2.68 | 5.36 | 10.72 |
| 40 | 5 | 1.79 | 3.58 | 7.16 |
| 40 | 6 | 2.15 | 4.30 | 8.60 |
| 40 | 10 | 3.58 | 7.16 | 14.32 |
| 50 | 5 | 2.23 | 4.46 | 8.92 |
| 50 | 6 | 2.68 | 5.36 | 10.72 |
| 50 | 10 | 4.47 | 8.94 | 17.88 |
| 60 | 6 | 3.22 | 6.44 | 12.88 |
| 60 | 10 | 5.36 | 10.72 | 21.44 |
| 60 | 15 | 8.05 | 16.10 | 32.20 |
| 80 | 6 | 4.29 | 8.58 | 17.16 |
| 80 | 10 | 7.15 | 14.30 | 28.60 |
| 80 | 15 | 10.73 | 21.46 | 42.92 |
| 100 | 10 | 8.94 | 17.88 | 35.76 |
| 100 | 15 | 13.41 | 26.82 | 53.64 |
| 100 | 20 | 17.88 | 35.76 | 71.52 |
| 120 | 10 | 10.73 | 21.46 | 42.92 |
| 120 | 15 | 16.10 | 32.20 | 64.40 |
| 120 | 20 | 21.46 | 42.92 | 85.84 |
Copper density: 8.94 g/cm³. Weight per meter = width(m) × thickness(m) × 8940. Tolerance: ±3%.
Flat, Round Edge and Bent C11000 Busbar
| Shape | Description | Best For |
|---|---|---|
| Flat (sharp edge) | Standard rectangular profile with 90° corners | General switchgear, panels, grounding – most economical |
| Round edge | Edges are rounded or chamfered | High voltage applications (>600V) – reduces corona effect |
| L-shape (90° bend) | Single bend at end | Connecting components on different planes |
| Z-shape (offset) | Two opposite bends | Stepping around obstacles or between different levels |
| U-shape | Two parallel bends | Wrapping around components or bridge connections |
For most low voltage (under 600V) applications, flat edge is sufficient. For switchgear rated above 600V, specify round edge to reduce corona discharge.
C11000 Copper Busbar Custom Fabrication
We provide C11000 copper busbar custom fabrication including cutting, punching, and bending.
| Service | Tolerance | Maximum Capability |
|---|---|---|
| Cut to length | ±0.5 mm | Up to 6000 mm |
| Round hole punching | ±0.1 mm | Diameter 4-20 mm, thickness ≤10 mm |
| Slotted hole punching | ±0.15 mm | 6x12 mm up to 10x25 mm |
| Bending (L, Z, U) | ±1° | Max length 600 mm, thickness ≤15 mm |
| Deburring | Standard | All edges deburred |
C11000 copper busbar custom fabrication – we recommend keeping holes at least 10mm away from bend lines to prevent distortion. Plating is applied after all fabrication steps.
C11000 Copper Busbar Surface Finishing
| Finish | Thickness | Key Benefit | Best For |
|---|---|---|---|
| Tin plating | 3-8 microns | Low cost, corrosion resistance | Indoor switchgear, panel boards |
| Silver plating | 5-15 microns | Lowest contact resistance | High-frequency, EV connectors |
| Nickel plating | 3-10 microns | Wear resistance, high temp | High-temperature environments |
| Heat shrink tubing | 1.5-3x ratio | Insulation, color coding | Touch-proof safety, phase identification |
| Epoxy coating | 0.5-1.0 mm | Full insulation | Outdoor, high voltage |
C11000 copper busbar surface finishing – for most indoor applications, tin plating is sufficient and most cost-effective. For outdoor or coastal environments, upgrade to silver plating or epoxy coating.
C11000 Copper Busbar – FOB Tianjin Reference Prices
Date: June 12, 2026 | LME Copper Base: $9,700/ton
| Width × Thickness | Length | Surface Finish | Unit | Reference Price (USD) |
|---|---|---|---|---|
| 20 × 3 mm | 4000 mm | Bare copper | per kg | $8.80 – 9.50 |
| 20 × 5 mm | 4000 mm | Bare copper | per kg | $8.60 – 9.30 |
| 25 × 5 mm | 4000 mm | Bare copper | per kg | $8.60 – 9.30 |
| 30 × 5 mm | 4000 mm | Bare copper | per kg | $8.50 – 9.20 |
| 30 × 6 mm | 4000 mm | Bare copper | per kg | $8.50 – 9.20 |
| 40 × 5 mm | 4000 mm | Bare copper | per kg | $8.40 – 9.10 |
| 40 × 6 mm | 4000 mm | Bare copper | per kg | $8.40 – 9.10 |
| 50 × 5 mm | 4000 mm | Bare copper | per kg | $8.40 – 9.10 |
| 50 × 6 mm | 4000 mm | Bare copper | per kg | $8.40 – 9.10 |
| 60 × 6 mm | 4000 mm | Bare copper | per kg | $8.30 – 9.00 |
| 60 × 10 mm | 4000 mm | Bare copper | per kg | $8.20 – 8.90 |
| 80 × 6 mm | 4000 mm | Bare copper | per kg | $8.20 – 8.90 |
| 80 × 10 mm | 4000 mm | Bare copper | per kg | $8.10 – 8.80 |
| 100 × 10 mm | 4000 mm | Bare copper | per kg | $8.10 – 8.80 |
| 120 × 10 mm | 4000 mm | Bare copper | per kg | $8.00 – 8.70 |
Surface Finish Premium (add to bare copper price)
| Surface Finish | Thickness | Premium (USD/kg) |
|---|---|---|
| Tin plating | 3–8 microns | +$1.20 – 1.80 |
| Silver plating | 5–15 microns | +$3.50 – 5.00 |
| Nickel plating | 3–10 microns | +$2.00 – 3.00 |
Important Notes
| Item | Details | |
|---|---|---|
| Final Price Formula | (Daily LME copper price + fixed fabrication fee) × quantity discount | |
| MOQ | Standard sizes: 10 pieces | Custom sizes: 50 pieces |
| Tolerance | Width/Thickness: ±0.1mm | Length: ±0.5mm |
| Payment Terms | T/T, L/C, Western Union | |
| Lead Time | Bare: 10–15 days | Plated: 15–20 days |
| Incoterms | FOB Tianjin / CIF any port |
Electric Copper Busbar Manufacturing Process
The conventional production process
C11000 Copper Busbar Manufacturing Equipment
100t Hydraulic Drawing Machine
DL Inverted Wire Drawing Machine
Mfcce 550 Extruder
SYDG15000 Upper Induction Furnace
Plastic Cold Rolling Mill
Automatic Wire Take Up Machine
Feeding Automatic Feeding System
Annealing Furnace
| Equipment | Brand / Model | Capacity |
|---|---|---|
| CNC shearing machine | Domestic | Thickness up to 30mm, width up to 250mm |
| CNC punching press | AMADA | Hole tolerance ±0.1mm, thickness ≤10mm |
| CNC press brake | ACCURL | Bending length up to 3000mm, ±1° tolerance |
| Automatic plating line | In-house | Tin / silver / nickel, up to 4000mm length |
| Heat shrink tunnel | Custom | Busbars up to 200mm width |
| CMM inspection | Hexagon | Dimensional accuracy verification |
C11000 Copper Busbar Storage
C11000 Copper Busbar Quality Testing
| Test | Equipment | Standard | Frequency |
|---|---|---|---|
| Conductivity | Eddy current sigmascope | ≥100% IACS | Every batch |
| Dimensions | CMM / calipers | ±0.1mm (width/thickness) | 100% |
| Hardness | Rockwell tester | HV 60-85 | Every batch |
| Surface finish | Visual inspection | No scratches, pits, or burrs | 100% |
| Plating thickness | XRF analyzer | Tin 3-8 microns | Every batch |
| Salt spray test | ASTM B117 chamber | ≥96h no red rust | Weekly |
Where Is C11000 Copper Busbar Used?
| Industry | Application |
|---|---|
| Power distribution | Switchgear, panel boards, distribution boxes, busway systems |
| Industrial control | Motor control centers (MCCs), automation panels, PLC cabinets |
| Renewable energy | Solar combiner boxes, inverters, wind turbine converters |
| Data centers | Power distribution units (PDUs), busways, server rack power |
| EV infrastructure | Charging stations, battery pack connections, power modules |
| Building electrical | Main breaker panels, sub-panels, grounding grids |
| Telecommunications | Power backup systems, rectifier cabinets, DC distribution |
C11000 Copper Busbar Packaging
| Layer | Material | Purpose |
|---|---|---|
| Inner wrap | VCI (vapor corrosion inhibitor) film | Prevents oxidation |
| Interleaving | Kraft paper + foam sheet | Prevents scratching between layers |
| Bundling | Steel straps | Secures bundles together |
| Pallet | Heat-treated plywood (IPPC certified) | Base for sea freight |
| Outer protection | Corner protectors + stretch wrap | Prevents pallet damage |
C11000 copper busbar packaging – for bent or custom shapes, we add custom foam cradles to prevent deformation. For air freight or express courier, heavy-duty cardboard boxes with internal foam are used.
FAQ
Q1：What is the MOQ for C11000 copper busbar?
For standard sizes (width and thickness from our die library)： MOQ = 10 pieces per size.
For custom sizes (special width, thickness, or length not in standard list)： MOQ = 50 pieces per size.
For sample orders (any size, any shape)： No MOQ. We support small-batch prototype orders before mass production.
Standard sizes include：20mm, 25mm, 30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm width with 3mm, 5mm, 6mm, 10mm thickness.
Q2：Do you provide samples of C11000 busbar?
Yes. Standard size samples：Free, customer pays shipping. Custom size samples：50 USD, refundable upon production order of 500+ pieces.
Sample lead time：5-7 business days for standard sizes, 7-10 days for custom sizes.
Q3：What is the lead time for C11000 orders?
Sample orders： 5-10 business days depending on complexity.
Production orders (standard sizes, no plating)： 10-15 business days.
Production orders (with tin/silver plating)： 15-20 business days.
Production orders (custom fabrication with bending)： 15-20 business days.
Q4：C11000 vs C10100 – what's the difference?
| Property | C11000 (ETP) | C10100 (OFE) |
|---|---|---|
| Purity | 99.9% | 99.99% |
| Oxygen content | 0.02-0.04% | ≤0.0005% |
| Conductivity | 100% IACS | 100% IACS |
| Price | Baseline | +30-50% |
| Best for | General electrical | Vacuum, hydrogen, cryogenic |
For 95% of applications, C11000 is sufficient. Only choose C10100 if your specification explicitly requires "oxygen-free" copper or if your application involves vacuum chambers, hydrogen brazing, or cryogenic temperatures below -150°C.
Q5：Can you cut C11000 busbar to exact length?
Yes. We offer cut-to-length service at no extra cost for standard sizes. Tolerance：±0.5mm. Maximum length：6000mm.
For orders requiring precise lengths (e.g., 1,873mm), simply specify the exact dimension on your PO. We will cut and deburr before shipping.
Q6：Do you provide bent or punched C11000 busbar?
Yes. Bending：L-shape, Z-shape, U-shape, and custom angles up to 6 bends per piece. Punching：round holes (4-20mm diameter), slotted holes (6x12mm to 10x25mm), and counterbored holes.
Tolerances： Hole position ±0.2mm, bend angle ±1°, overall length after bending ±1.0mm.
Send your drawing (PDF, DWG, DXF) for a quote. MOQ for custom fabrication：50 pieces per shape. Sample orders accepted with 50-200 USD sample fee (deductible).
Q7：What is the maximum length for C11000 copper busbar?
Standard stock length： 4000mm. This is our standard offering and ships same/next day for stock sizes.
Custom length： Up to 6000mm available with MOQ 50 pieces. Lead time adds 5-7 business days.
Longer than 6000mm： Not available as a single piece due to handling and transportation constraints. For applications requiring longer continuous runs, we recommend using splice kits or multiple busbar sections with jumper connections. We can design and supply the splice kit for you.
Q8：Is C11000 suitable for grounding and bonding?
Yes. C11000 is the most commonly used material for grounding and bonding applications in electrical panels, switchgear, substations, and building electrical systems.
Copper provides a low-impedance path to ground, ensuring safe dissipation of fault currents and preventing electrical shock hazards. C11000's 100% IACS conductivity is ideal for this application.
For indoor grounding： Bare C11000 busbar is sufficient. For outdoor or coastal environments： We recommend tin plating for corrosion protection. Tinned copper busbar can last 20-30 years even in harsh conditions.
Q9：Do you provide insulated C11000 busbar?
Yes. We offer three insulation options for C11000 copper busbar：
| Insulation Type | Voltage Rating | Best For |
|---|---|---|
| Heat shrink tubing | Up to 15kV | Touch-proof safety, color coding for phase identification (red/black/blue/yellow/green) |
| Epoxy coating | Up to 36kV | Outdoor installations, high voltage switchgear, full coverage including bends |
| PVC sleeving | Up to 600V | Basic touch-proof protection for low voltage panels |
Lead time for insulated busbars： Add 3-5 business days to standard production time.
Q10：Sea freight vs air freight – cost and time difference for C11000 busbar?
| Shipping Method | Delivery Time | Cost | Best For |
|---|---|---|---|
| Sea freight (LCL) | 30-40 days | Low | Orders > 500 kg, not urgent |
| Sea freight (20FT FCL) | 25-35 days | Lowest per kg | Orders > 18 tons (full container) |
| Air freight | 5-7 days | 3-5x sea freight | Urgent orders, 100-500 kg |
| Express courier (DHL/FedEx/UPS) | 3-5 days | 5-8x sea freight | Samples only, orders under 100 kg |
Example for a 200 kg C11000 busbar order shipping to USA：
| Method | Approximate Cost | Delivery Time |
|---|---|---|
| Sea freight (LCL) | 400-600 USD | 35-40 days |
| Air freight | 1,800-2,500 USD | 5-7 days |
| DHL Express | 3,000-4,000 USD | 3-5 days |
Click here to get a shipping quote for your order
Hot Tags: c11000 copper busbar, China c11000 copper busbar manufacturers, suppliers, factory, copper
Previous
No InformationNext
No InformationYou Might Also Like
Send Inquiry
