What is TP1/C12000 copper?
TP1/C12000 phosphorus-deoxidized copper is a copper alloy deoxidized by adding trace amounts of phosphorus (0.004%–0.012%). Its unique composition design significantly improves welding and processing performance while retaining high electrical and thermal conductivity, making it a key material in industrial applications.
Composition and Physical Properties
C12000 is based on high purity, with a copper-silver (Cu+Ag) content ≥99.90% and phosphorus (P) strictly controlled between 0.004%–0.012%. The addition of trace amounts of phosphorus effectively eliminates the adverse effects of oxygen (oxygen content ≤0.015%), avoiding "hydrogen embrittlement" (hydrogen embrittlement in high-temperature reducing atmospheres), while also refining the grain size and improving mechanical properties. Its density is 8.96 g/cm³, melting point is 1080℃–1085℃, electrical conductivity reaches 98% IACS (International Standard for Annealed Copper), thermal conductivity is 380 W/(m·K), and coefficient of thermal expansion is 17.3 × 10⁻⁶/℃. Its overall performance is superior to ordinary pure copper.
Main applications include
Fluid transport systems: gasoline/gas transport pipes, drainage pipes, mine pipes
Thermal management components: condenser tubes, evaporators, heat exchangers
Rail transit components: train car parts
Equivalents of UNS C12000 Copper
| Standard | Designation | Name / Description | Key Similarities |
|---|---|---|---|
| UNS (USA) | C12000 | Phosphorus Deoxidized, Low Residual Phosphorus (DLP) | Base Standard |
| ASTM (USA) | B152, B124 | C12000 | |
| CDA (USA) | 120 | - | Industry Standard |
| ISO | Cu-DLP | Copper - DLP (Chemical Symbol) | Closest ISO Chemical Designation |
| EN (Europe) | Cu-DLP (EN 1412) CW024A (EN 13599) |
Copper - DLP | Chemical Composition Equivalent |
| JIS (Japan) | C1201 | Phosphorus Deoxidized Copper | Nearly Identical |
| GB (China) | TP1 | Phosphorus Deoxidized Copper | Note: TP1 is generally considered the closest match, though phosphorus content may differ slightly. |
| DIN (Germany) | SF-Cu (DIN 1708) | Deoxidized Copper with Low Residual Phosphorus | |
| BS (UK) | C106 | Phosphorus Deoxidized Copper for General Purposes |
C12000 vs C10200
| Feature | UNS C12000 | UNS C10200 |
|---|---|---|
| Common Name | Phosphorus Deoxidized, Low Residual P (DLP) | Oxygen-Free Copper (OF) |
| Key Composition | Cu ≥99.90%, P: 0.004-0.012% | Cu ≥99.95%, O ≤0.0005% |
| Oxygen Content | Very Low | Extremely Low (Virtually Zero) |
| Deoxidizer | Phosphorus | None (Process-controlled) |
| Electrical Conductivity | Very High (~100% IACS) | Highest (~101%+ IACS) |
| Thermal Conductivity | Very High | Slightly Higher |
| Formability & Ductility | Excellent | Superior (especially in annealed state) |
| Weldability & Brazability | Excellent (due to P deoxidation) | Excellent (requires inert atmosphere) |
| Resistance to Hydrogen Embrittlement | Poor (in reducing atmospheres) | Very Good (no Cu₂O to react) |
| Typical Applications | High-conductivity busbars, heat exchangers, tubing | High-vacuum electronics, glass-metal seals, waveguides, sputtering targets |
Choose C10200 (Oxygen-Free Copper) when your priority is:
Maximum Purity & Conductivity: For critical electrical/electronic components (e.g., waveguides, semiconductor parts).
High-Temperature in Hydrogen: For service in reducing atmospheres (e.g., hydrogen furnaces, brazing atmospheres) where hydrogen embrittlement is a risk.
Superior Ductility & Forming: For severe cold working and deep drawing applications.
High-Vacuum or Sealing Applications: Where outgassing or oxidation at high temperatures must be absolutely minimized (e.g., glass-metal seals, accelerator parts).
Choose C12000 (Phosphorus Deoxidized Copper) when your priority is:
Excellent Conductivity at Lower Cost: For high-performance busbars, electrical conductors, and heat exchangers where C10200's marginal gain isn't justified.
Easier Joining in Air: Its deoxidized nature makes it very forgiving for welding and brazing in standard shop environments.
General High-Conductivity Applications: Where hydrogen embrittlement is not a concern (e.g., standard electrical components, non-reducing atmosphere heat transfer).
Good Balance of Performance and Practical Fabrication.
Inquire about C12000 Pricing & Samples
Our product range
| Category | Key Products | Standards | Typical Applications |
|---|---|---|---|
| Copper Tubes & Pipes | Seamless copper tubes, medical gas pipes (ASTM B819), ACR tubes, capillary tubes, large-diameter pipes, plumbing tubes (Type K/L/M) | ASTM B68, B75, B88, B280, B819, EN1057 | HVAC, refrigeration, plumbing, medical gas systems, industrial pipelines |
| Copper Sheets & Plates | Pure copper sheets, copper alloy plates (brass, bronze), perforated sheets, embossed sheets, clad sheets | ASTM B152, B465, EN1652 | Architectural cladding, electrical components, heat exchangers, decorative arts |
| Copper Bars & Rods | Round bars, square bars, hexagonal bars, flat bars, copper alloy rods (brass, bronze) | ASTM B187, B301, EN12163/12164 | Machined parts, connectors, fasteners, electrodes, forgings |
| Copper Wires & Strands | Bare copper wires, tinned copper wires, braided wires, stranded conductors, enameled wires | ASTM B1, B3, B174, IEC 60228 | Electrical wiring, power transmission, cables, windings, grounding systems |

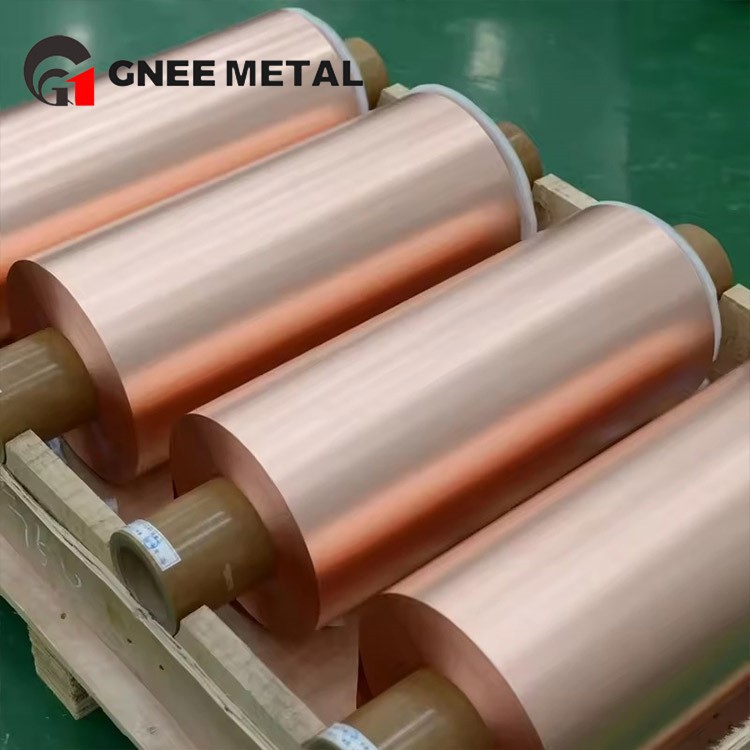

| Copper Foils | Rolled copper foils, electrolytic copper foils, flexible copper strips | ASTM B370, IPC-4562 | Printed circuit boards (PCBs), electromagnetic shielding, batteries, decorative laminates |
