5 Real Cases of C70600 Tube Failure and How to Prevent Them

Root cause: Low iron content (0.75%) from uncertified supplier.

A coastal power plant installed 4,500 C70600 tubes in a surface condenser. Seawater flow was 2.2 m/s, temperature 28°C, all within design limits. After 18 months, 200+ tubes leaked.

What inspection found:

Pitting depth 0.8–1.2mm on tube ID

Iron content only 0.75% (ASTM requires 1.0–1.8%)

Nickel content 8.2% (below 9.0% minimum)

Why it failed:
Low iron prevents formation of stable protective oxide film. Without the film, pitting started within weeks and penetrated the 1.24mm wall in 18 months.

How to prevent:

Always verify iron content from mill certificate

Reject any tube with iron below 1.0%

Perform PMI spot check on random tubes before installation

Use certified mills only

Root cause: Wrong filler metal (pure copper instead of ERCuNi).

A cargo ship had a seawater cooling line fabricated from C70600 tube. Within 8 months, multiple weld joints leaked. The cracks were at the weld fusion line, not in the base metal.

What inspection found:

Cracks along weld fusion zone

Filler metal analyzed as pure copper (ERCu)

Galvanic corrosion between base metal and filler

Why it failed:
Pure copper filler is more noble than C70600 in seawater. The small weld area became an anode, corroding rapidly. ERCuNi filler matches C70600 composition and prevents galvanic attack.

How to prevent:

Specify AWS A5.7 ERCuNi filler in welding procedure

Verify filler metal certificate before use

Train welders – C70600 cannot use copper filler

Perform dye penetrant test on first 10 welds

Root cause: Velocity spikes to 4.5 m/s during pump startup.

A desalination plant used C70600 tubes in a brine heater. Design velocity was 2.5 m/s. However, during pump startup and when strainers blocked, velocity exceeded 4.0 m/s.

What inspection found:

Thinning at the first 150mm of tube inlet

Horseshoe-shaped erosion pattern

Wall thickness reduced from 1.65mm to 0.6–0.8mm

Why it failed:
C70600 has good erosion resistance up to 3.0 m/s. Above 3.5 m/s, the protective film wears away mechanically. With sand or bubbles present, erosion accelerates further.

How to prevent:

Install inlet end inserts (sacrificial plastic or metal sleeves)

Add variable frequency drive on pump to control ramp-up

Clean strainers weekly to prevent pressure drop

Design for 2.0 m/s, not 2.5 m/s – leave margin

Root cause: Ammonia concentration 8 ppm from process leak.

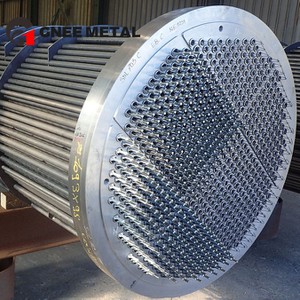

A chemical plant used C70600 tubes in a shell-and-tube cooler. Cooling water contained ammonia from a nearby process leak. The plant did not monitor ammonia.

What inspection found:

Fine branching cracks on tube OD

Cracks followed grain boundaries

No wall thinning around cracks

Tubes snapped when bent by hand

Why it failed:
C70600 is susceptible to stress corrosion cracking (SCC) when ammonia exceeds 2 ppm and temperature is above 50°C. The tubes had residual stress from U-bending, which was enough to drive cracking.

How to prevent:

Monitor ammonia weekly – keep below 2 ppm

If ammonia cannot be controlled, upgrade to C71500

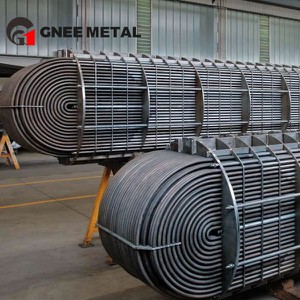

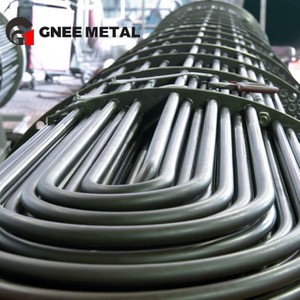

Stress relieve U-bent tubes after bending

Use non-ammonia water treatment chemicals

Root cause: Firewater system not flushed for 9 months.

An offshore platform had a firewater system with C70600 piping. The system sat unused for 9 months with stagnant seawater inside. When tested, multiple pinhole leaks appeared.

What inspection found:

Deep pits under dead legs and low points

White and green corrosion products

Oxygen concentration cells under deposits

Why it failed:
Stagnant seawater allows oxygen concentration cells to form under deposits. The area under the deposit becomes anodic and pits rapidly. Flow above 1.0 m/s prevents this.

How to prevent:

Flush firewater systems monthly with fresh water

Drain and dry during long idle periods

Design for drainability – slope pipes to low point drains

Consider C71500 for systems with long stagnant periods

What is the most common reason C70600 tubes fail early?

Low iron content is the most common. Many uncertified suppliers use less nickel and iron to save cost. The tube looks correct but corrodes in 1–3 years instead of 20–30. Always verify chemistry.

Can a failed C70600 tube be repaired?

Pinhole leaks can be plugged (for condensers) or cut out and re-welded (for piping). Widespread pitting or cracking means full retube. Repair cost often exceeds replacement cost.

How to test if my C70600 tubes have low iron?

Send a tube sample to a lab for OES analysis. Or use a PMI gun on site. The test takes 10 seconds and costs $50–100 per spot if outsourced.

Does insurance cover C70600 tube failure from low iron?

Usually no. Insurance covers accidents, not material defects or supplier quality issues. The buyer is responsible for verifying material before installation. This is why PMI testing is critical.

What is the single most important test before installing C70600 tubes?

PMI (Positive Material Identification). Confirm nickel is 9–11% and iron is 1.0–1.8% before any tube goes into service. This one test prevents 90% of early failures.

How often should I inspect C70600 tubes in service?

Annually for critical systems (power plants, ships). Every 2–3 years for less critical systems. Use eddy current testing. Visual inspection alone misses early wall thinning.

Can C70600 and C71500 fail from the same causes?

No. C71500 resists ammonia SCC and high velocity erosion better than C70600. But C71500 still fails from low iron (if supplier cheats) and stagnant seawater pitting.

What is the most expensive failure to repair?

Ammonia SCC on a U-bundle heat exchanger. The entire bundle must be replaced. Tubes cannot be repaired individually. Cost can exceed $500,000 for large bundles.

Does proper water treatment eliminate all C70600 failures?

No, but it prevents most. Maintain flow 1.0–3.0 m/s, keep ammonia below 2 ppm, avoid sulfides, flush stagnant systems. Even with perfect water, low iron tubes will still fail.
