Solid Copper Wire
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of solid copper wire in China, also supports customized service. Welcome to buy discount solid copper wire for sale here from our factory. Quality products and reasonable price are available.
Benefits of Bare Copper Wire
High thermal conductivity and corrosion resistance make bare copper wire durable.
Superior ductility means bare copper wire is a very flexible cable that can be easily manipulated and molded, which is especially important when wiring smaller buildings or houses.
Solid copper wire is naturally derived with minimal waste and can be recycled over and over again without compromising its properties.
It can be used in a variety of industries. For example, in the construction industry, solid copper wire is favored for its high tensile strength and ductility.
Provides greater safety. Due to its high melting point, bare copper wire can withstand sustained high temperatures without melting, thus preventing accidents.
Top quality AC copper wire
specification 0.012mm-1.0mm
|
Conductor Diameter |
Overall diameter(mm) |
Conductor Resistance (20℃ Ω/m) |
Elongation (%) |
Breakdown Voltage(V) |
|
|
Grade 2 |
Grade 2 |
||||
|
Upper limit |
Lower limit |
Lower limit |
|||
|
0,012 |
0,017 |
0,018 |
151,14 |
3 |
150 |
|
0,014 |
0,019 |
0,020 |
111,04 |
4 |
175 |
|
0,016 |
0,021 |
0,022 |
85,02 |
5 |
200 |
|
0,018 |
0,023 |
0,024 |
67,18 |
5 |
225 |
|
0,019 |
0,024 |
0,026 |
60,29 |
6 |
240 |
|
0,020 |
0,025 |
0,027 |
54,41 |
6 |
250 |
|
0,025 |
0,032 |
0,034 |
34,82 |
7 |
300 |
|
0,028 |
0,035 |
0,038 |
27,76 |
7 |
325 |
|
0,030 |
0,038 |
0,041 |
24,18 |
8 |
350 |
|
0,040 |
0,050 |
0,054 |
13,60 |
10 |
475 |
|
0,045 |
0,056 |
0,061 |
10,750 |
12 |
550 |
|
0,050 |
0,061 |
0,066 |
8,706 |
14 |
600 |
|
0,060 |
0,073 |
0,079 |
6,046 |
16 |
680 |
|
0,063 |
0,077 |
0,083 |
5,484 |
16 |
700 |
|
0,070 |
0,084 |
0,090 |
4,442 |
17 |
700 |
|
0,071 |
0,085 |
0,091 |
4,318 |
17 |
700 |
|
0,080 |
0,095 |
0,101 |
3,401 |
17 |
850 |

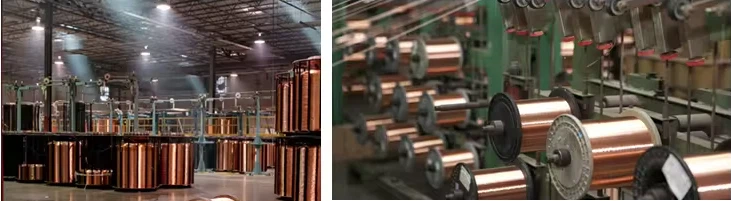

Mass production of insulated copper wire
About Us
GNEE is a manufacturer specializing in the research, development, production, sales and service of copper tubes, copper plates, copper wires and copper foils. Our company is located in Henan Province with convenient transportation. Our factory has been engaged in foreign market for more than 16 years and has rich production experience.In 2015, we opened the foreign market. Our company integrates processing and operation. Our main markets are Dubai, Indonesia, Singapore, Vietnam, Malaysia, Philippines, Chile, Mexico, Israel, Spain and so on.
Team specializing in the supply of fine copper wire
Customer visits
GNEE Participation in Exhibitions
Hot Tags: solid copper wire, China solid copper wire manufacturers, suppliers, factory, C11000 flexible copper tubing, C10100 copper rod, C21000 copper pipe, copper C22000 round bar, flexible C12500 copper tubing, C26200 copper sheets for crafts
