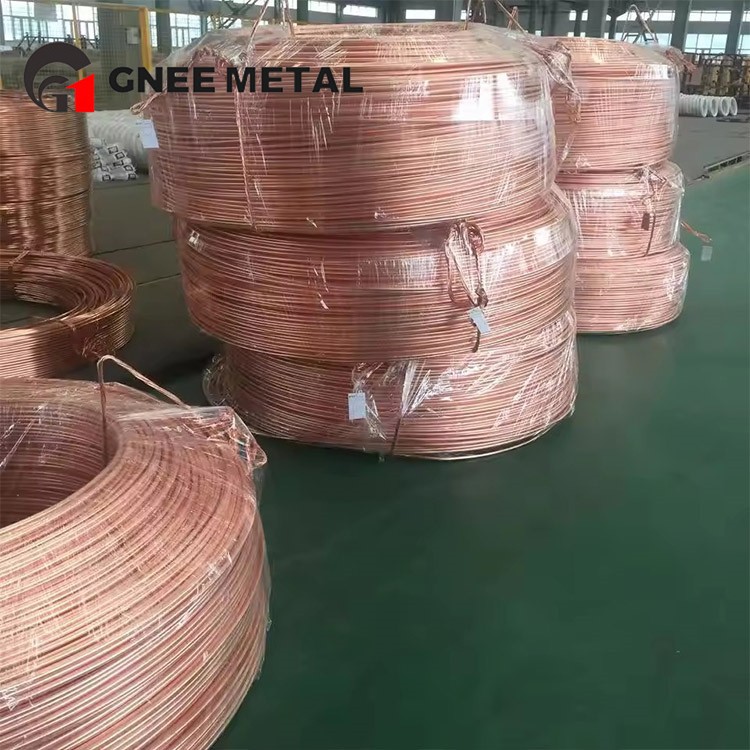

Coiled C83800 Copper Wire
video

Coiled C83800 Copper Wire

C83800 solid copper wire has suitable machinability and can be easily processed into a variety of shapes and sizes to meet different application requirements.
Send Inquiry
Chat Now
Product Introduction

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of coiled c83800 copper wire in China, also supports customized service. Welcome to buy discount coiled c83800 copper wire for sale here from our factory. Quality products and reasonable price are available.



C83800 copper wire is characterised by high strength and high electrical conductivity, which makes it excellent in applications where both mechanical strength and electrical performance requirements need to be met.C83800 solid copper wire also has high precision and a high resistance to softening temperatures, which means that it can maintain stable performance even in high temperature environments, and it is suitable for use in electrical and electronic equipment that needs to withstand high temperatures.

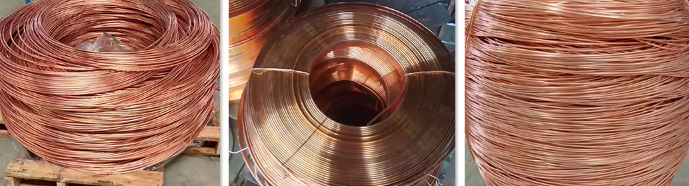

First-class C83800 solid copper wire production process

copper ribbon wire



Physical Properties

Melting Point - Liquidus°F 1840
Melting Point - Solidus°F 1550
Densitylb/cu in. at 68°F 0.312
Specific Gravity 8.64
Electrical Conductivity% IACS at 68°F 15
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 41.8
Coefficient of Thermal Expansion 68-39210 to -6 power per °F (68 – 392°F) 10
Specific Heat CapacityBtu/ lb /°F at 68°F 0.09
Modulus of Elasticity in Tensionksi 13300
Magnetic Permeability 1



Casting Characteristics

Casting Attribute Level
Casting Yield High
Drossing Low
Effect of Section Size High
Fluidity Medium
Gassing Medium
Patternmakers Shrinkage inches per inch 3/16
Shrinkage in Solidification Medium



Applications of C83800 alloy copper wire:
Electrical and Electronic Fields: The high conductivity and high strength characteristics of C83800 copper wire make it very suitable for use in electrical and electronic fields, such as as used as decorative parts, pinion gears, low-pressure valves, pipe fittings, as well as parts that work in some gases and liquids.
Mechanical materials: C83800 copper wire can also be used to manufacture mechanical parts that require high strength and wear resistance, such as medium-speed, heavy-duty bearings.
Other fields: In addition, C83800 copper wire can be used to make electrical equipment such as generators, busbars, cables, switchgear, transformers, etc., as well as heat conductive equipment such as heat exchangers, pipes, and flat plate collectors for solar heating devices.

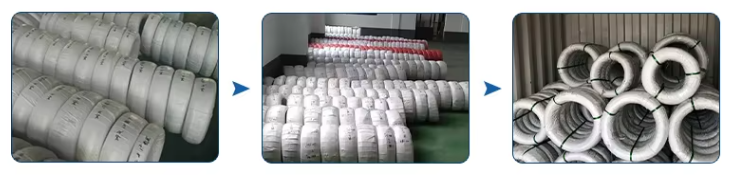

Packaging of C83800 alloy copper wire

copper building wire



Highly reliable team supply C83800 corrosion resistant copper wire

underground copper wire

The company has obtained iso9001:2015 quality management system certification, iso14001:2015 environmental management system certification, ISO 45001:2018 occupational health and safety management system certification, PED 2014/68/EU Pressure Equipment Directive certification, DNV-GL material manufacturer certification, SGS product quality certification and other certificates and qualifications. We strictly implement GB/T 3639-2009, ASTM A519, DIN2391, JIS G3445 and other national and international standards to ensure the quality of our products.


Hot Tags: coiled c83800 copper wire, China coiled c83800 copper wire manufacturers, suppliers, factory, flexible C28000 copper tubing, C27000 polished copper bar, ASTM B280 Air Conditioning Pipe, C28000 copper cable, c11000 conductive copper tape, copper C11000 threaded rod
