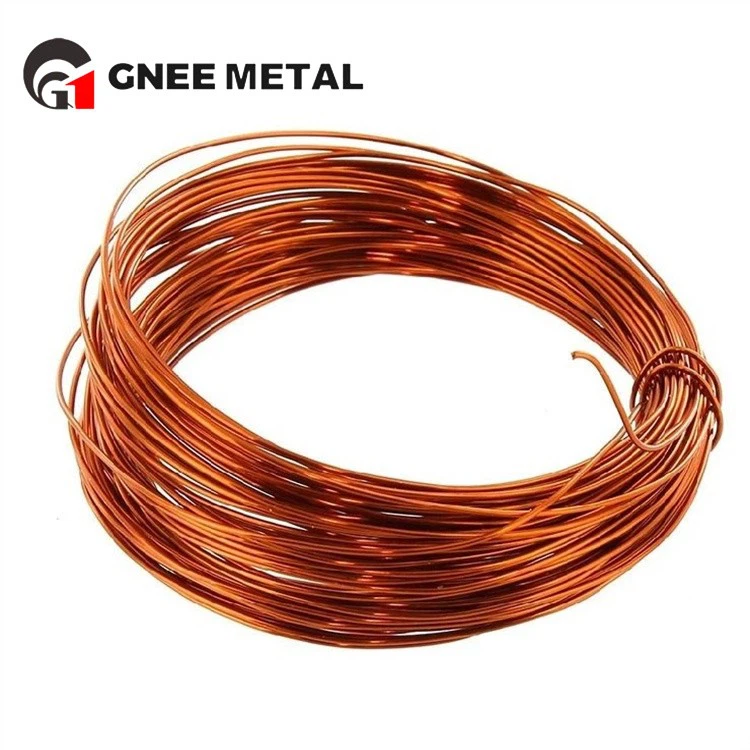

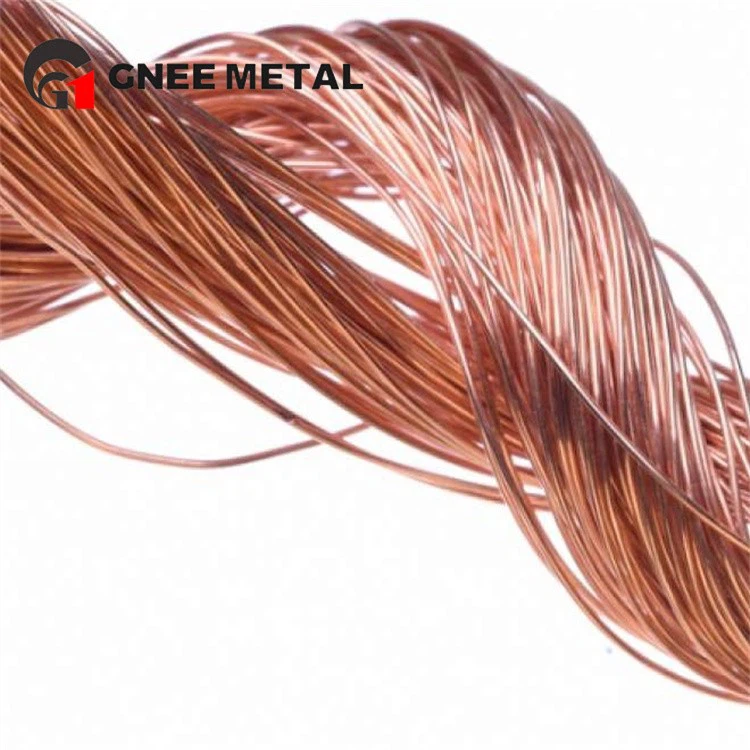

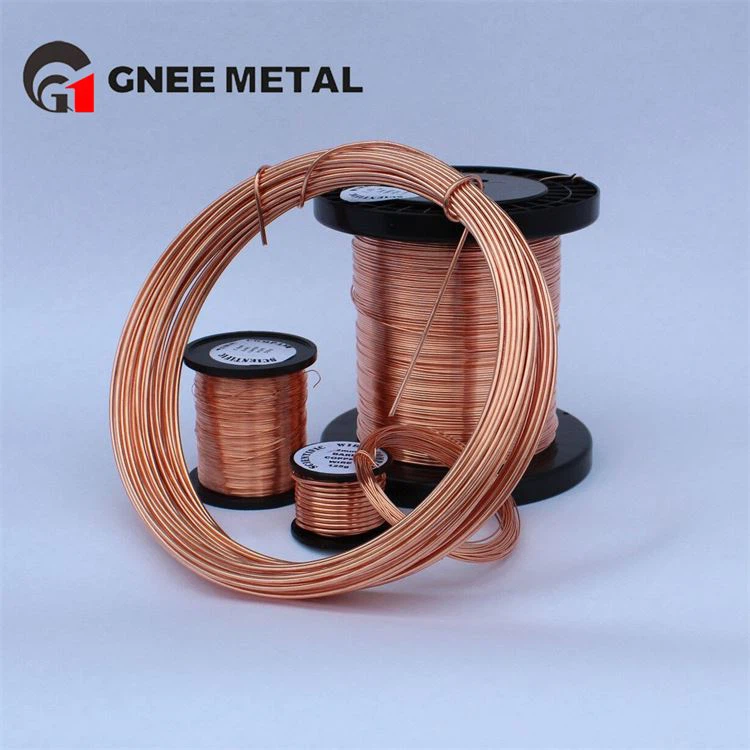

C51900 Copper Craft Wire

C51900 tin-phosphor bronze wire is a copper alloy material with high corrosion resistance, high strength, high electrical conductivity and high ductility, which has a wide range of applications.
Send Inquiry
Chat Now
Product Introduction

Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of c51900 copper craft wire in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount c51900 copper craft wire for sale here from our factory. Customized orders are welcome.



C51900 process copper wire has excellent corrosion resistance, especially in the marine environment, high temperature and high humidity and other harsh conditions. This is mainly due to the phosphorus element in its composition, which can form a dense protective film in the copper matrix to prevent the intrusion of corrosive media. In addition, its surface treatment process can also further improve its corrosion resistance.



First-class C51900 copper wire production process

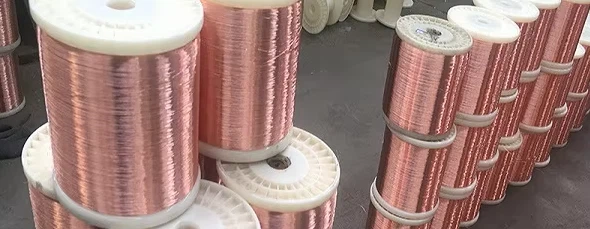

copper ground wire

Chemical Composition

  Elements
Cu(1) Pb Sn Zn Fe P
(1) Cu + Sum of Named Elements 99.5% min.
Min (%)     5.0     0.03
Max (%) Rem 0.05 7.0 0.30 0.10 0.35



Fabrication Properties

Technique Suitability
Soldering Excellent
Brazing Excellent
Oxyacetylene Welding Fair
Gas Shielded Arc Welding Good
Coated Metal Arc Welding Poor
Spot Weld Good
Seam Weld Poor
Butt Weld Excellent
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Formed Poor
Machinability Rating 20

C51900 industrial copper wire has high strength, its tensile strength and yield strength are higher than ordinary brass. C51900 thick copper wire is a suitable alternative material in occasions that need to withstand large loads, such as ships, petrochemicals, electric power and other fields.



Supply of C51900 fine copper wire with excellent performance

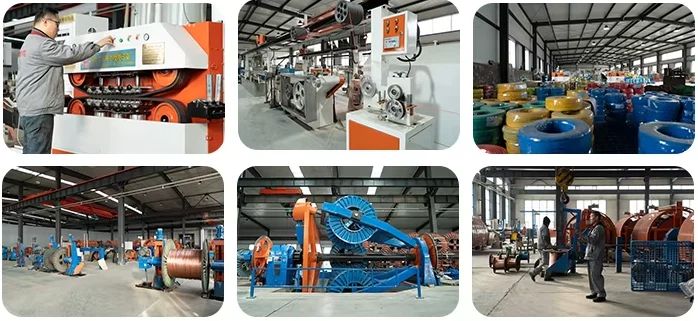

ac copper wire



Highly reliable team supply C51900 process copper wire

solid copper wire

We are a professional copper products manufacturer and exporter specializing in copper tubes, rods, wires, plates, and strips. Our factory is equipped with advanced production lines, including continuous casting and upcasting machines, cold rolling mills, drawing machines, annealing furnaces, and precision cutting equipment, enabling us to deliver products with consistent quality and tight tolerances. Every batch undergoes rigorous testing-including chemical composition analysis, mechanical property testing, dimensional inspection, electrical conductivity testing, and eddy current/ultrasonic defect detection-and we support third-party inspection (SGS, BV, etc.) to ensure full compliance with ASTM, EN, JIS, and GB standards. With competitive pricing, flexible MOQs, and professional export service, we look forward to building long-term partnerships and supplying copper products that meet your exact requirements.
