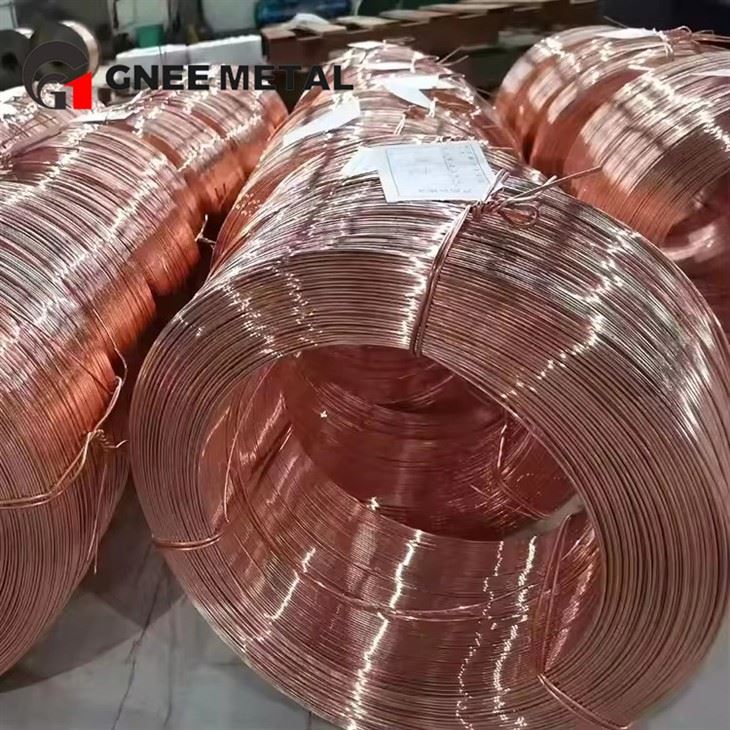

C28000 Copper Lead Wire
video

C28000 Copper Lead Wire

C28000 copper lead is a high quality copper alloy material characterized by high electrical conductivity and high strength. Since its main components are copper and zinc, with a copper content of up to 70%, it has excellent electrical conductivity and is ideally suited for use in the manufacture of wires, cables and other electrical equipment.
Product Introduction

Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of c28000 copper lead wire in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount c28000 copper lead wire for sale here from our factory. Customized orders are welcome.



C28000 copper alloy wire also has good corrosion resistance and high strength, which makes it widely used in several fields. In electrical engineering, it is often used in the manufacture of wires, cables and motors, etc.; in chemical equipment, it is used in the manufacture of pumps, valves and pipelines, etc.; in the field of construction, it is used in the manufacture of roofing, doors, windows and decorative materials.



High level C28000 copper lead production technology

coiled copper wirepure copper wire



Physical Properties

Melting Point - Liquidus°F 1660
Melting Point - Solidus°F 1650
Densitylb/cu in. at 68°F 0.303
Specific Gravity 8.39
Electrical Conductivity% IACS at 68°F 28
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 71
Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) 11.6
Specific Heat CapacityBtu/ lb /°F at 68°F 0.09
Modulus of Elasticity in Tensionksi 15000
Modulus of Rigidityksi 5600



Fabrication Properties

Technique Suitability
Soldering Excellent
Brazing Excellent
Oxyacetylene Welding Good
Gas Shielded Arc Welding Fair
Coated Metal Arc Welding Not Recommended
Spot Weld Good
Seam Weld Not Recommended
Butt Weld Good
Capacity for Being Cold Worked Fair
Capacity for Being Hot Formed Excellent
Forgeability Rating 90
Machinability Rating 40

C28000 soft copper wire is also commonly used in the aerospace field because it has both high strength and good corrosion resistance, which is very suitable for the manufacture of aircraft structural components, engine parts and avionics equipment.



Packaging of C28000 process copper wire

copper wire for earthing



Why choose our C28000 fine copper wire

copper cable wire

GNEE is a manufacturer specializing in the research, development, production, sales and service of copper products such as copper tubes, copper rods, copper plates, copper wires and copper strips. Our company is located in Henan Province with convenient transportation. Our factory has been engaged in foreign markets for more than 16 years and has rich production experience. Our main markets are Dubai, Indonesia, Singapore, Vietnam, Malaysia, Philippines, Chile, Mexico, Israel, Spain and so on.


Hot Tags: c28000 copper lead wire, China c28000 copper lead wire manufacturers, suppliers, factory, copper, bare C10100 copper cable, Copper Wire, C10200 grounding wire, C23000 bare copper wire, C27200 solid copper wire, C12500 copper ground wire
