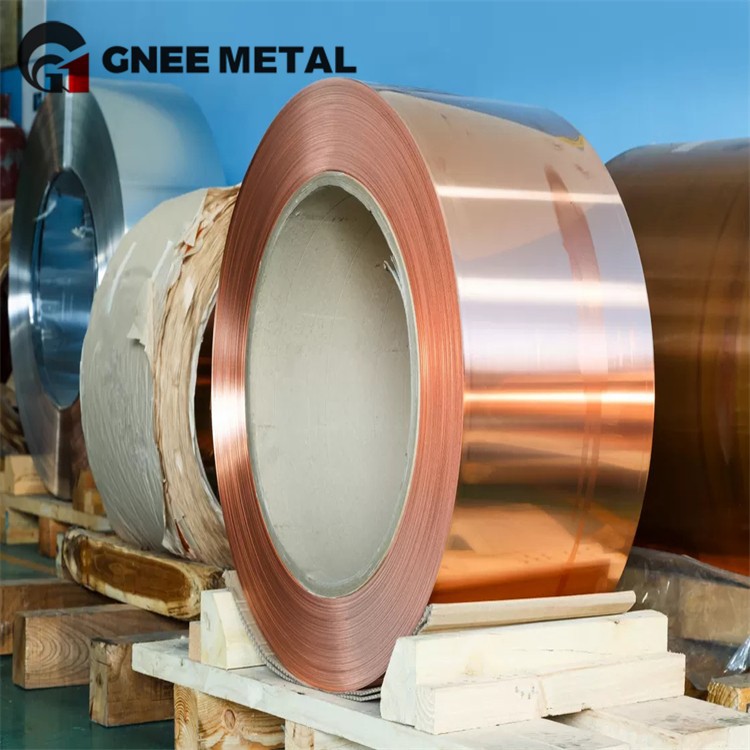

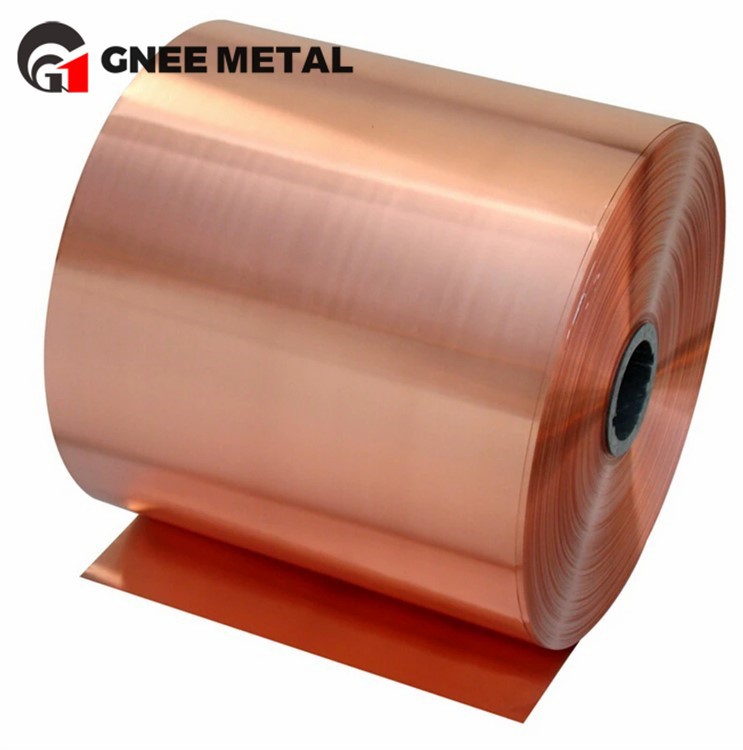

Thin C60800 Copper Foil
video

Thin C60800 Copper Foil

C60800 aluminium bronze belt has excellent corrosion resistance, thermal and electrical conductivity, good processing performance and wear resistance, widely used in aviation, automotive, electronics and other fields, becoming an indispensable material in the industrial field, with a broad application prospect.
Send Inquiry
Chat Now
Product Introduction

Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of thin c60800 copper foil in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount thin c60800 copper foil for sale here from our factory. Customized orders are welcome.



C60800 metal copper strip has excellent corrosion resistance. The aluminium element in the aluminium bronze alloy can improve the corrosion resistance of the alloy, enabling it to resist the erosion of various corrosive media. This enables C60800 alloy copper foil to perform well in environments such as marine engineering and chemical equipment, allowing it to work stably for long periods of time.


Top quality C60800 thin copper strip

copper foil sheets

Physical Properties

Melting Point - Liquidus°F 1945
Melting Point - Solidus°F 1920
Densitylb/cu in. at 68°F 0.295
Specific Gravity 8.17
Electrical Conductivity% IACS at 68°F 17
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 46
Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) 10
Specific Heat CapacityBtu/ lb /°F at 68°F 0.09
Modulus of Elasticity in Tensionksi 17500
Modulus of Rigidityksi 6600



C60800 thin copper strip has good thermal and electrical conductivity. Copper itself is an excellent conductive material, and the addition of aluminium elements further improves the conductive properties of the alloy. This makes C60800 thin copper foil have a wide range of applications in the field of electronics and electrical appliances, such as the manufacture of high-performance connectors, conductive sheets and so on.



Supply of C60800 grounding copper strip with excellent performance

copper roof strip



Why choose our C60800 conductive copper foils

copper strip for earthing

GNEE is located in Anyang City, Henan Province, adjacent to the Yellow Sea, with convenient export transportation conditions. Our main products include copper tubes, copper rods, copper foils, copper wires, copper plates, etc., which are widely used in automobile, home appliances, construction and other industries. Our products are exported to more than 150 countries and regions such as Northeast China, North China, East China, Europe, Middle East, Southeast Asia, Australia and so on. We sincerely welcome friends from all over the world to visit our company and cooperate on the basis of long-term mutual benefit.
