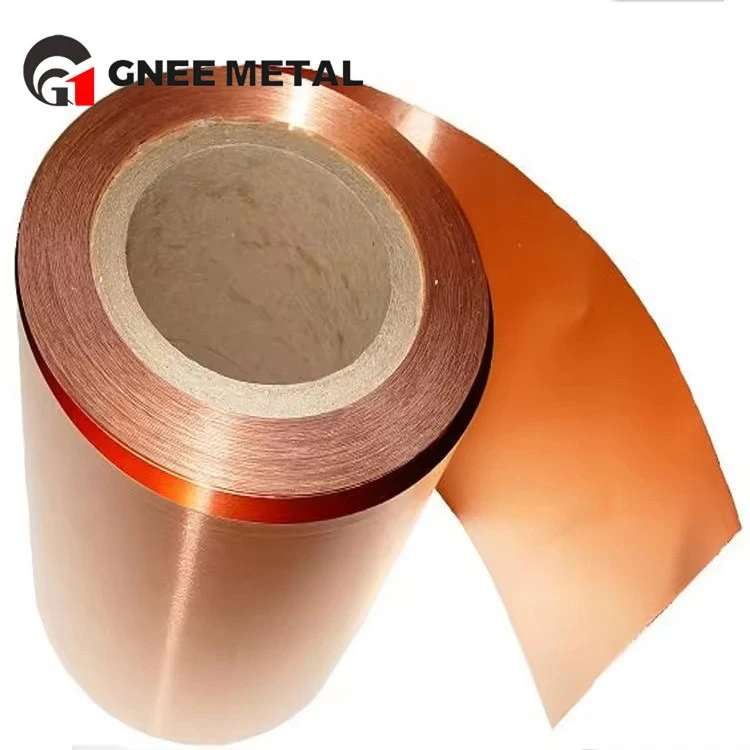

Thick C18100 Copper Foil
video

Thick C18100 Copper Foil

Under the high temperature environment, the strength and hardness of C18100 copper strip still maintains a high level, and at the same time, it has good oxidation resistance and corrosion resistance.
Send Inquiry
Chat Now
Product Introduction

Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of thick c18100 copper foil in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount thick c18100 copper foil for sale here from our factory. Customized orders are welcome.



C18100 thick copper strip is a high-performance copper-based alloy with high strength and wear resistance. The main components of this alloy are copper and chromium, with small amounts of zinc, iron and other elements, of which the chromium content is about 10%.C18100 conductive copper strip has excellent electrical and thermal conductivity, and is able to meet the needs of high-precision, high-demanding electronic component manufacturing.



First-class C18100 copper metal strip production process

copper grounding foil

Physical Properties

Melting Point - Liquidus°F 1967
Densitylb/cu in. at 68°F 0.319
Specific Gravity 8.88
Electrical Conductivity% IACS at 68°F 80
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 187
Coefficient of Thermal Expansion 68-21210 to -6 power per °F (68 – 212°F) 9.3
Coefficient of Thermal Expansion 68-39210 to -6 power per °F (68 – 392°F) 10.2
Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) 10.7
Specific Heat CapacityBtu/ lb /°F at 68°F 0.094
Modulus of Elasticity in Tensionksi 18200
Modulus of Rigidityksi 6800



Fabrication Properties

Technique Suitability
Soldering Excellent
Brazing Good
Oxyacetylene Welding Not Recommended
Gas Shielded Arc Welding Good
Spot Weld Not Recommended
Seam Weld Not Recommended
Butt Weld Fair
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Formed Excellent



C18100 copper foil use:
Electronic, communication field: C18100 thick copper strip is widely used in the electronic and communication field, mainly used as conductive connectors, contactors and other high-performance materials manufacturing.
Automotive, machinery field: the alloy is also widely used in automotive, machinery and other fields, used in the manufacture of moulds, high-precision mechanical parts and so on.
Welding and conductive: C18100 alloy copper strip is easy to weld and fibre welding, it can be used for welding, conductive nozzles, etc. in the machinery manufacturing industry.



Large-scale factory production of C18100 alloy copper strip

copper craft foil



Why choose our C18100 copper foil

copper metal sheet foil

Why us
1. Excellent workers
2. Strict Quality Control
3. Top quality products
4. Innovative design team
5. Fastest lead time
6. The most rapid reply
7. Customized to meet your unique specs
8. Factory visit warmly welcomed
9. Convenient transportation


Hot Tags: thick c18100 copper foil, China thick c18100 copper foil manufacturers, suppliers, factory, copper, copper metal foil, C21000 copper foil roll, C27000 thin copper strips, C24000 copper strip, C27000 copper foil, c11000 copper foil roll
