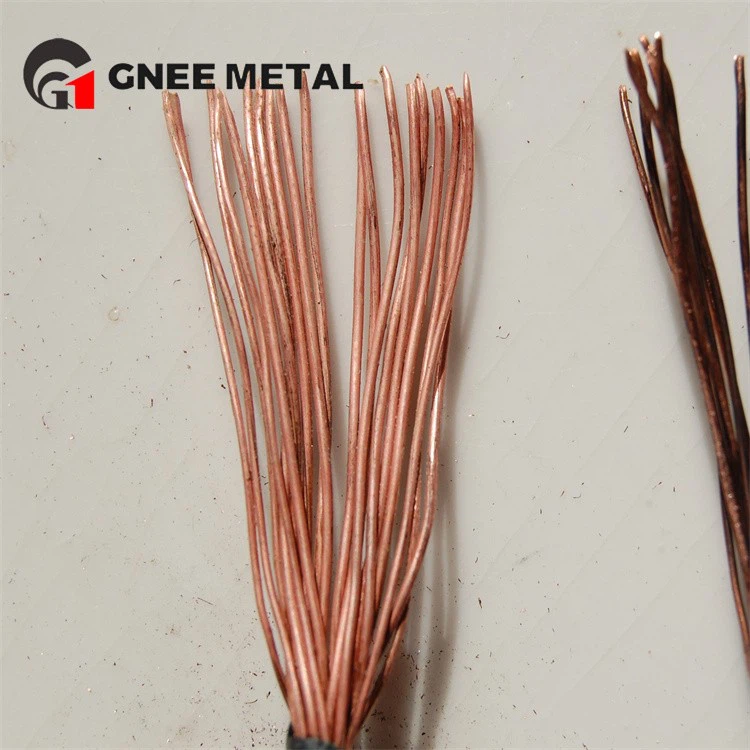

C14500 Copper Wire
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of c14500 copper wire in China, also supports customized service. Welcome to buy discount c14500 copper wire for sale here from our factory. Quality products and reasonable price are available.
The addition of tellurium significantly improves the machinability of the C14500 copper alloy, making C14500 a suitable material for the manufacture of precision parts. Despite the addition of tellurium, C14500 fine copper wire maintains high electrical conductivity, making it suitable for use in electrical connectors and other electrical components. The alloy also has good thermal conductivity, making it suitable for applications such as heat exchangers and radiators.
Industry-leading technology for the production of C14500 copper metal wire
| Melting Point - Liquidus°F | 1976 |
|---|---|
| Melting Point - Solidus°F | 1924 |
| Densitylb/cu in. at 68°F | 0.323 |
| Specific Gravity | 8.94 |
| Electrical Conductivity% IACS at 68°F | 93 |
| Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F | 205 |
| Coefficient of Thermal Expansion 68-21210 to -6 power per °F (68 – 212°F) | 9.5 |
| Coefficient of Thermal Expansion 68-39210 to -6 power per °F (68 – 392°F) | 9.7 |
| Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) | 9.9 |
| Specific Heat CapacityBtu/ lb /°F at 68°F | 0.092 |
| Modulus of Elasticity in Tensionksi | 17000 |
| Modulus of Rigidityksi | 6400 |
| Technique | Suitability |
|---|---|
| Soldering | Excellent |
| Brazing | Good |
| Oxyacetylene Welding | Fair |
| Gas Shielded Arc Welding | Fair |
| Coated Metal Arc Welding | Not Recommended |
| Spot Weld | Not Recommended |
| Seam Weld | Not Recommended |
| Butt Weld | Fair |
| Capacity for Being Cold Worked | Good |
| Capacity for Being Hot Formed | Good |
| Forgeability Rating | 65 |
| Machinability Rating | 85 |
Processing and maintenance of C14500 bare copper wire:
Processing: The excellent machinability of C14500 fine copper wire makes it easier to shape during machining, reducing tool wear and improving productivity.
Maintenance: Despite its good corrosion resistance, regular inspection and maintenance is required to maintain its performance in special environments, such as marine or sulfur-containing environments.

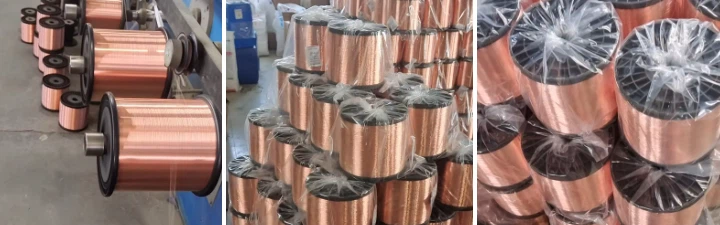

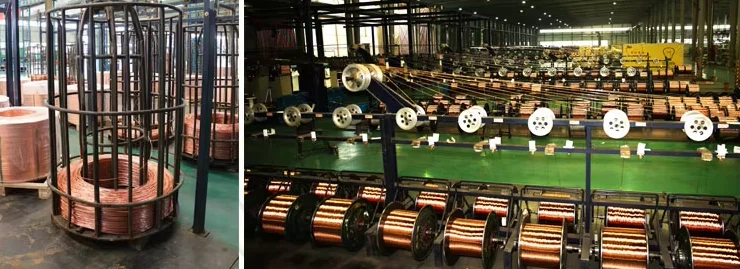

Large-scale factory production of C14500 bare copper wire
Highly reliable team supplying C14500 fine copper wire
GNEE is an enterprise engaged in the research, smelting and processing of copper and copper alloys. The factory covers an area of 350,000 square meters, and now has a series of production equipments such as vacuum induction furnace imported from the United States, vacuum consumable arc furnace made in Germany, 2800mm four-high reversible rolling mill, vacuum annealing furnace, and so on, which can customize the production of any size of plate within 2.6m * 16m, and the maximum length of a single pipe can reach 15m.
Meanwhile, we also have more than 100 sets of various testing instruments, the main equipment includes American non-destructive testing system, spectral analyzer, carbon and sulfur tester, universal testing machine, ultrasonic testing system, fatigue testing machine and so on.
With more than 10 years of export experience, our products are exported to USA, UK, Germany, France, Brazil, Japan, Korea, India, Vietnam, Australia, Philippines, Zambia, Indonesia and other countries.
Hot Tags: c14500 copper wire, China c14500 copper wire manufacturers, suppliers, factory, Solid Core Copper Wire, C26200 copper sheets for crafts, thin copper C68700 sheets, C17300 copper foil sheets, grounding C12000 wire, C21000 copper hose
