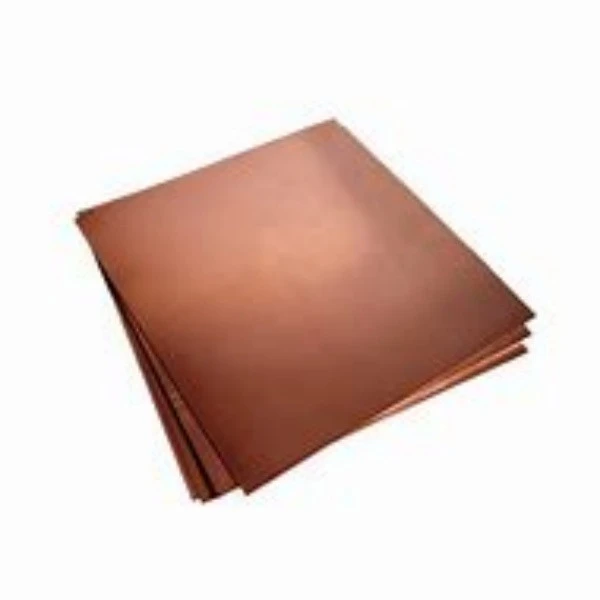

A Electrolytic Copper Plate

Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of a electrolytic copper plate in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount a electrolytic copper plate for sale here from our factory. Customized orders are welcome.

After the power is turned on, the copper dissolves from the anode into copper ions (Cu) and moves to the cathode. After reaching the cathode, it obtains electrons and precipitates pure copper (also called electrolytic copper) at the cathode. Impurities in the crude copper, such as iron and zinc, which are more active than copper, will dissolve into ions (Zn and Fe) along with the copper. Since these ions are less likely to precipitate than copper ions, the precipitation of these ions on the cathode can be avoided by properly adjusting the potential difference during electrolysis. Impurities that are less active than copper, such as gold and silver, are deposited at the bottom of the electrolytic cell. The copper plates produced in this way are called "electrolytic copper" and are of extremely high quality and can be used to make electrical products.
Our purpose in refining copper is primarily to concentrate the precious metals we have collected in copper based bullion anodes. For years I used smelting techniques, which we have discussed in the smelting thread, to separate the metals, which can be oxidized out of the copper. The remaining copper holds the precious metals, which are separated out by the electrolytic copper refining process and at the same time concentrated in the anode slimes.

The copper electrolysis process is used to produce pure copper on an industrial scale in large cell banks. For example, pure copper is required in conductors, as even small amounts of impurities can reduce the conductivity.
The main technical goal of a refinery is to produce high-purity cathode copper. Other important goals are to produce this pure copper quickly and with minimal energy and labor consumption.
The energy consumption of copper electrolysis is relatively high. Electrical disturbances, such as loose electrode busbar contacts and short circuits between electrodes, increase energy consumption and reduce the yield and quality of copper, thereby reducing its market value. It can be said that the uniformity of the current distribution in the cell bank greatly affects the goals of copper electrolysis. The intercell busbar (ICBB) system, which is used to connect the cells in series in the cell bank, has a significant impact on the current distribution.
A sufficiently accurate computational model of a cell bank can bring many practical benefits. Such a model can be used in product development. Since the ICBB system is a large structure, the performance of different ICBB system designs can only be compared in a large cell bank model containing multiple cells. If the model is accurate enough and the performance metrics are chosen correctly, the model can be used to make improvements to the selected ICBB system and to test completely new ICBB designs. Geometric and material variants can be simulated using the model.
