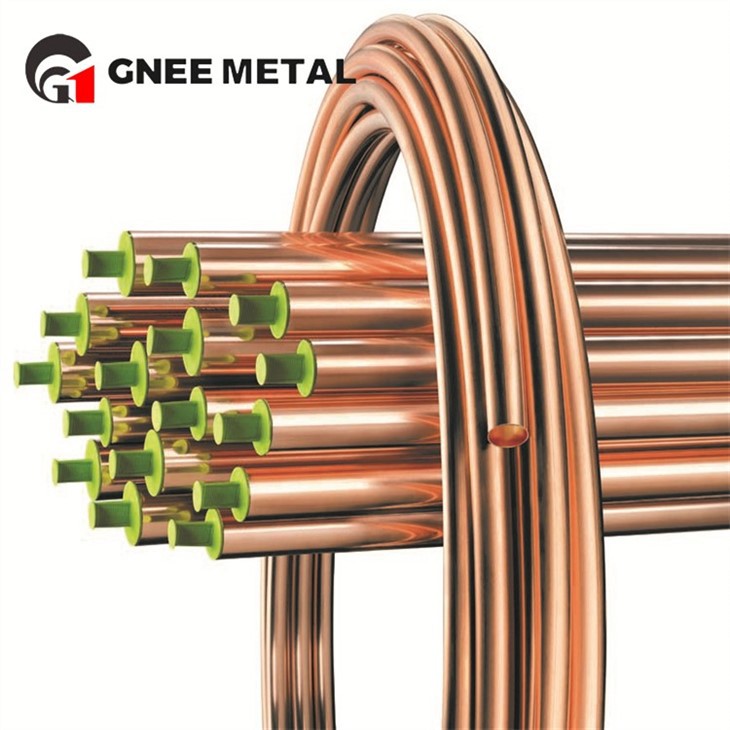

Copper C10200 Flexible Hose
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of copper c10200 flexible hose in China, also supports customized service. Welcome to buy discount copper c10200 flexible hose for sale here from our factory. Quality products and reasonable price are available.
C10200 Oxygen Free (OF) copper tubing is produced by direct conversion of selected refined cathodes and castings under carefully controlled conditions to prevent contamination of the pure oxygen free metal during processing. The oxygen-free copper production method ensures an ultra-high grade metal with a copper content of up to 99.99%. With such low levels of foreign elements, the inherent properties of elemental copper are fully utilized.
Although OF is considered oxygen-free copper, its electrical conductivity is no higher than the more common ETP or C11000 grade copper. It has an oxygen content of 0.001%, a purity of 99.95%, and a minimum IACS conductivity of 100%. The silver (Ag) content is counted as copper (Cu) for purposes of purity percentages.
Top Quality C10200 Soft Copper Tubes
C10200 CHEMICAL COMPOSITION
| Cu | O | |
| Min./Max. | 99.95 min | .0010 |
| Nominal | - | - |
Mechanical Property Of Copper C10200 Pipes & Tubes
| Property/unit | Condition | Min | Max |
| Tensile Strength (N/mm2) | O | 260 | |
| Elongation in 5.65Cross sectional area | O | 32 | |
| Tensile Strength (N/mm2) | 1/2H | 290 | |
| Elongation in 5.65Cross sectional area | 1/2H | 4 | |
| Tensile Strength (N/mm2) | H | 350 |
Some of the typical areas that C10200 is used in, is as follows: Microwave Tubes, Copper to Glass Seals in Electronic Appliances, Wave Guides, Bus Conductors, Busbars, Klystrons, Coaxial Cables, Electrical Conductors, Lead In Wire, Transistor Component, Billet Mold Tube, Coaxial Tube, Extrusion Cans for Powder Metallurgy, Vacuum Seals, Tubing, LP Gas Service, Tubing, Medical Gas- Oxygen
Supply of C10200 small diameter copper tubes with excellent performance
Our production capacity:
We have state-of-the-art manufacturing facilities equipped with cutting-edge technology and experienced professionals. This enables us to provide strong production capabilities to meet your piping supply needs.
Below is an overview of our production capabilities:
Annual production: We have the capacity to produce 8,000 tons of copper per year.
Sizes: Our production lines are capable of producing copper products in a variety of sizes.
FAQ
Q: What are the three techniques for joining copper tubing?
A: These joining methods include soldering, brazing and electric resistance. Soldered jointswith capillary fittings, are used in plumbing for water lines and for sanitary drainage.
Q: Why is copper tubing so expensive?
A: Copper is sort of the gold standard in pipes. Known for its durability, it can last aslong as 100 years. Copper pipes are naturally resistant to bacteria and are less likely tobreak down if exposed to UV rays. As a result, the cost of copper pipe per foot exceeds a lotof other piping options.
Q: What type of copper tubing is the thickest?
A: Type K copper pipe has the thickest wall of all the common types. It is used for water distribution, fire protection, oil, HVAC, and many other applications in the construction industry. Type K pipe is available in rigid and flexible forms.
