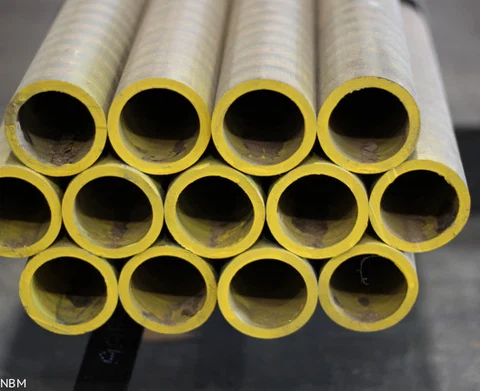

C92600 Commercial Leaded Tin Bronze
Introduction
Bronze alloys are many in number and they include:
Phosphor bronze
Tin bronze
Aluminum bronze
Silicon bronze
Architectural bronze
Manganese bronze
The UNS C92600 alloy is a leaded tin bronze copper casting alloy. The datasheet given below provides an overview of the UNS C92600 alloy.
Chemical Composition
The chemical composition of the UNS C92600 alloy is outlined in the following table.
| Element | Content (%) |
|---|---|
| Copper, Cu | 86.0-88.5 |
| Tin, Sn | 9.30-10.5 |
| Zinc, Zn | 1.30-2.50 |
| Lead, Pb | 0.80-1.20 |
| Nickel, Ni | 0.75 |
| Sulfur, S | 0.050 |
| Phopshorus, P | 0.030 |
| Antimony, Sb | 0.25 |
| Iron, Fe | 0.15 |
| Aluminium, Al | 0.0050 |
| Silicon, Si | 0.0050 |
Physical Properties
The following table shows the physical properties of the UNS C92600 alloy.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.70 g/cm³ | 0.314 lb/in³ |
Mechanical Properties
The mechanical properties of the UNS C92600 alloy are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Hardness, Brinell | 72 | 72 |
| Hardness, Rockwell F | 78 | 78 |
| Tensile strength | 304 MPa | 44100 psi |
| Yield strength (@strain 0.500%) | 140 MPa | 20300 psi |
| Elongation at break (in 50 mm) | 30.00% | 30.00% |
| Compressive strength (at permanent set of 0.1%) | 85.0 MPa | 12300 psi |
| Compressive strength (at permanent set of 10%) | 275 MPa | 39900 psi |
| Izod impact | 9.00 J | 6.64 ft-lb |
| Machinability (UNS C36000 (free-cutting brass) = 100) | 40 | 40 |
| Poisson's ratio | 0.34 | 0.34 |
| Elastic modulus | 117 GPa | 16969 ksi |
