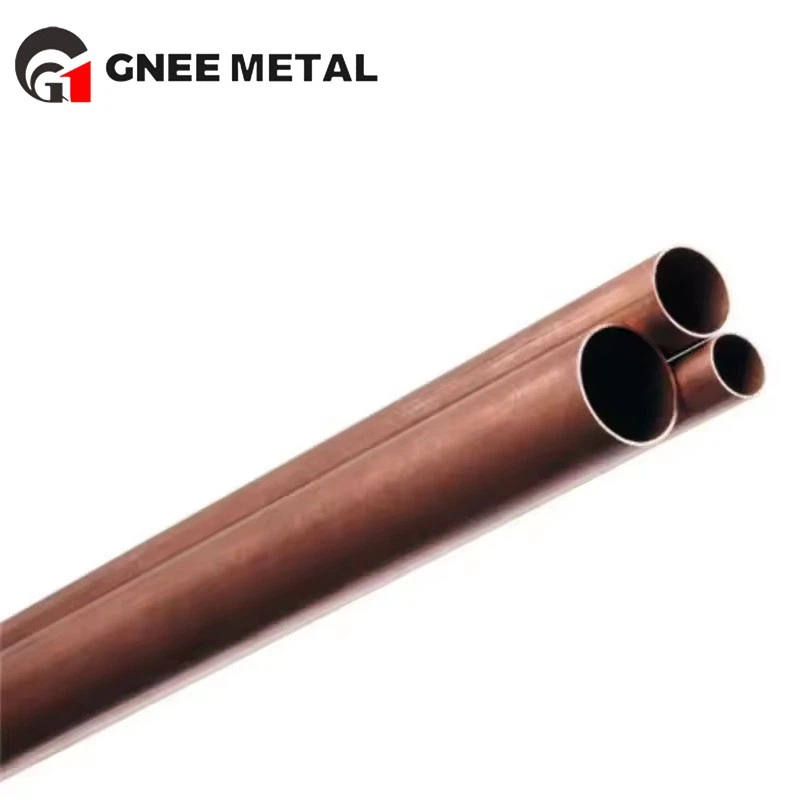

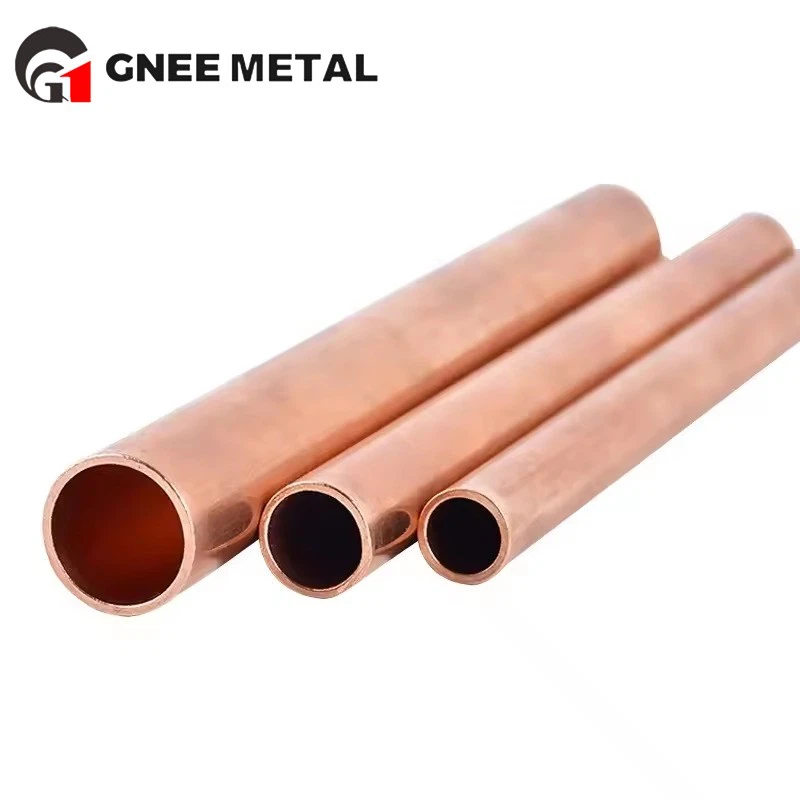

C83600 Copper Pipe Soldering

C83600 copper alloy is a tin-bronze alloy with excellent properties and it has a wide range of applications in welding copper tubes.
Send Inquiry
Chat Now
Product Introduction

Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of c83600 copper pipe soldering in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount c83600 copper pipe soldering for sale here from our factory. Customized orders are welcome.



The C83600 copper alloy is mainly composed of copper, tin, zinc and lead, with tin, zinc and lead content within a certain range to ensure the excellent performance of the alloy. This alloy is characterized by high strength, excellent abrasion resistance, not easy to produce the phenomenon of occlusion, and at the same time has good corrosion resistance in the atmosphere and fresh water.C83600 copper metal tubes also have good casting performance and cutting performance, easy to process and manufacture.

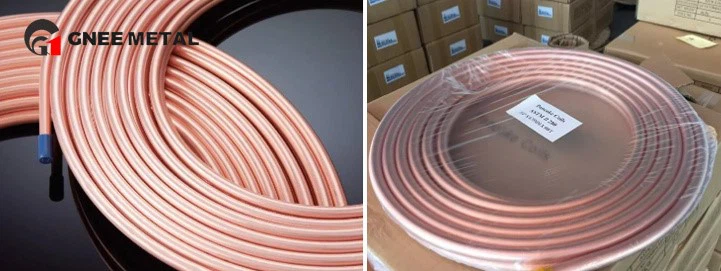

High level of C83600 soldered copper tube production technology

copper hose pipe



Physical Properties


Melting Point - Liquidus°F 1850
Melting Point - Solidus°F 1570
Densitylb/cu in. at 68°F 0.318
Specific Gravity 8.83
Electrical Conductivity% IACS at 68°F 15
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 41.6
Coefficient of Thermal Expansion 68-39210 to -6 power per °F (68 – 392°F) 10
Specific Heat CapacityBtu/ lb /°F at 68°F 0.09
Modulus of Elasticity in Tensionksi 13500
Magnetic Permeability 1



Casting Characteristics

Casting Attribute Level
Casting Yield High
Drossing Low
Effect of Section Size High
Fluidity Medium
Gassing Medium
Patternmakers Shrinkage inches per inch 3/16
Shrinkage in Solidification Medium
Shrinkage During Freezing Medium

Due to its excellent performance, C83600 copper water pipe is particularly suitable for copper pipe welding that requires high load and wear resistance. For example, it is often used in the manufacture of components such as axle tiles, bushings, cylinder liners, piston clutches, pump parts gland, worm gears and so on. During the soldering process, C83600 copper hose shows good soldering performance and can be soldered with other copper alloys or similar materials to form a strong connection.

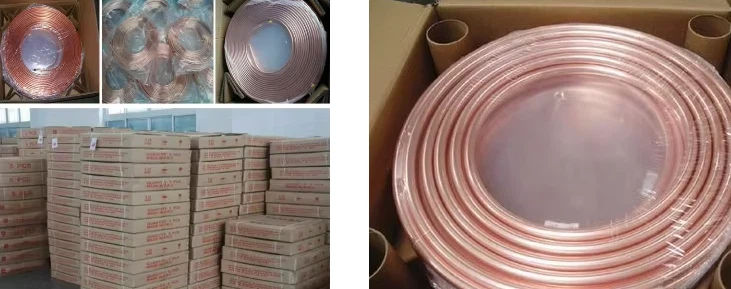

Packaging of C83600 corrosion resistant copper tubes

insulated copper tubing



Highly reliable team supplying C83600 thin-walled copper tube

red copper pipe

We are a professional copper products manufacturer and exporter specializing in copper tubes, rods, wires, plates, and strips. Our factory is equipped with advanced production lines, including continuous casting and upcasting machines, cold rolling mills, drawing machines, annealing furnaces, and precision cutting equipment, enabling us to deliver products with consistent quality and tight tolerances. Every batch undergoes rigorous testing-including chemical composition analysis, mechanical property testing, dimensional inspection, electrical conductivity testing, and eddy current/ultrasonic defect detection-and we support third-party inspection (SGS, BV, etc.) to ensure full compliance with ASTM, EN, JIS, and GB standards. With competitive pricing, flexible MOQs, and professional export service, we look forward to building long-term partnerships and supplying copper products that meet your exact requirements.

Hot Tags: c83600 copper pipe soldering, China c83600 copper pipe soldering manufacturers, suppliers, factory, copper, type l C26200 copper, C28000 copper hose, copper C12500 hose, type k C10200 copper pipe, C21000 type l copper, C24000 copper pipe
