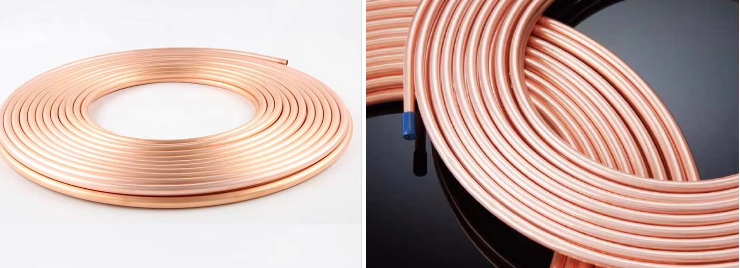

Bending C93800 Copper Water Pipe
Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of bending c93800 copper water pipe in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount bending c93800 copper water pipe for sale here from our factory. Customized orders are welcome.
C93800 copper water pipe contains elements such as lead and tin, which improve the wear resistance of the material. Under sliding friction conditions, it can effectively resist frictional wear and prolong the service life of water pipes.C93800 copper metal pipe has strong corrosion resistance and can be used in a variety of corrosive environments. In humid environments, it has a strong corrosion resistance to atmosphere and water, which can effectively protect the pipeline from corrosion.
First-class C93800 soft copper tube production process
C93800 Copper Tube Chemical Composition and Physical Properties
Chemical Composition
| Element | Content Range (%) |
|---|---|
| Copper (Cu) | 76.0 - 79.0 |
| Tin (Sn) | 6.5 - 7.5 |
| Lead (Pb) | 14.0 - 16.0 |
| Zinc (Zn) | 0.8 |
| Iron (Fe) | ≤ 0.10 |
| Antimony (Sb) | 0.5 |
| Nickel + Cobalt (Ni + Co) | 0.8 |
| Sulphur (S) | 0.08 |
| Phosphorus (P) | 0.05 |
| Aluminum (Al) | 0.005 |
| Silicon (Si) | 0.005 |
Physical Properties
| Property | Approximate Value |
|---|---|
| Density | 9.25 g/cm³ |
| Melting Point | 943 ℃ |
| Electrical Conductivity | 11 %IACS |
| Thermal Conductivity | 52.3 W/(m·K) |
| Thermal Expansion Coefficient | 18.5 x 10⁻⁶/K |
| Elastic Modulus | 72.4 GPa |
| Tensile Strength (Min.) | 25 MPa (172 ksi) |
| Yield Strength (Min.) | 110 MPa (16 ksi) |
| Elongation (Min.) | 5% |
The casting performance of C93800 alloy copper pipe is excellent, and it can make parts of various shapes and sizes. In the casting process, it has good fluidity, shrinkage and airtightness, which is conducive to improving the quality and precision of castings. At the same time, C93800 tin bronze has good performance in cutting processing, and can be easily turned, milled, drilled and other machining operations. During the machining process, it has less wear and tear on the tool, which improves the machining efficiency.
Large-scale factory production of C93800 copper metal tubes
Highly reliable team supply C93800 copper alloy tube
We provide high quality products, good service and competitive price. We have been committed to producing copper tubes, copper plates, copper foils, copper wires, copper rods and so on.
Our products are exported to more than 150 countries and have entered key industries such as petroleum, chemical industry, railroad, automobile and large power station.
