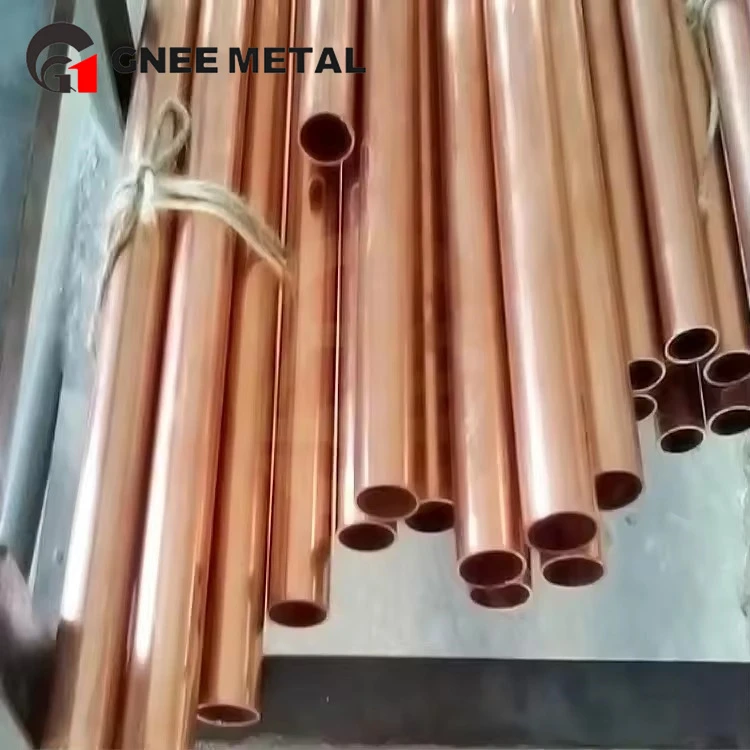

ASTM B280 C12000 Copper Tubes

Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of astm b280 c12000 copper tubes in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount astm b280 c12000 copper tubes for sale here from our factory. Customized orders are welcome.



ASTM B280 C12000 refers to seamless, straight lengths of copper tubing made from Phosphorus Deoxidized, Low Residual Phosphorus Copper (DHP Copper). It is one of the most common and versatile copper tube types for industrial applications.



Chemical Composition

Primary Alloy: C12000, which is ≥99.9% copper with a small, controlled addition of phosphorus (0.008 - 0.013% P).

Purpose of Phosphorus: Acts as a deoxidizer during melting, removing oxygen to prevent embrittlement. The "Low Residual P" (DHP) designation means it's suitable for both pressure and non-pressure applications, including brazing and welding.



Mechanical & Physical Properties

Temper: Typically supplied in the Annealed (Soft) temper for easy bending and forming, or Drawn (Hard) temper for higher strength and straight lengths.

Annealed Tensile Strength: ~30 ksi (205 MPa) min

Annealed Yield Strength: ~10 ksi (70 MPa) min

Drawn Tensile Strength: ~40 ksi (275 MPa) min

Excellent Thermal Conductivity: Very high heat transfer rate, making it ideal for heat exchangers, condensers, and refrigeration systems.

Excellent Electrical Conductivity: ~85% IACS (International Annealed Copper Standard), suitable for certain electrical grounding and conductive applications.

Ductility & Formability: Excellent, especially in the annealed condition. Can be easily bent, flared, and expanded without cracking.

Density: 8.94 g/cm³ (0.323 lb/in³).



Corrosion & Service Properties

Superior Corrosion Resistance: Excellent resistance to a wide range of environments, including:

Fresh, salt, and brackish water.

Atmospheric exposure.

Many industrial chemicals, oils, and solvents.

Non-Permeability: Impermeable to gases and liquids, ensuring system integrity.

Biostatic / Antimicrobial: Inherent property of copper that inhibits the growth of bacteria, algae, and fungi (important for potable water and medical gas systems).

Good Fatigue Resistance: Performs well under cyclic pressure stresses.



Fabrication & Joining Characteristics

Weldability & Brazability: Excellent. The phosphorus content aids in capillary flow during brazing and welding without flux for copper-to-copper joints.

Solderability: Excellent for soldered joints in plumbing.

Ease of Installation: Lightweight, easy to cut, and join using standard plumbing/mechanical methods (soldering, brazing, flaring, compression fittings).



Primary Applications

Its properties make it the industry standard for:

Refrigeration & Air Conditioning (ACR Tubing): For refrigerant lines (commonly identified by its nominal size and "ACR" designation).

Plumbing & Potable Water Systems: For hot and cold water distribution.

Hydraulic and Pneumatic Lines: For fuel, oil, and air systems.

Heat Exchangers, Condensers, and Coolers.

Medical Gas Systems in healthcare facilities.

Wall Thickness	0.5-30mm		0.019"-1.18""inch
Out Diameter	6-160mm		0.23"-6.29"inch
Length	1-12m or customized according to your needs
Shape	Round Tube, Square Tube, Tube Coils, etc.
Standard	EN1172/1652/1653/1654, ASTMB152/B152M, ASTMB36/B36M, etc.
Application	C12000 copper finds applications in bus bars and electromechanical hardware connectors.

Applications for ASTM B280 C12000 seamless copper tubes
Electrical Industry: Used in the manufacture of wires, cables, electrical connectors, switches, etc.
Heating, ventilation and air conditioning (HVAC): Used as a piping material in HVAC systems, especially in applications requiring soldering.
Construction industry: Used in architectural finishes, roof covering materials, and piping systems.
Industrial manufacturing: as material for heat exchangers, condenser tubing and other industrial components.

Packing:
Excellent package: Anti-ater paper and plastic film+covered by iron sheet + strapped with min three strappingstrips+fixed on the iron or wooden pallets by strapping strips. lt can effectively protect products from corrosion andvarious climate changes during ocean transportation.
Shipping:
Generally, we ship from Shanghai, Tianjin, Qingdao and Ningbo ports. We have long-term cooperation with many ex-perienced shipping companies and will find the most suitable mode of transportation for you.
