Air Conditioner Seamless Refrigeration Nickel Copper Pipe

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of air conditioner seamless refrigeration nickel copper pipe in China, also supports customized service. Welcome to buy discount air conditioner seamless refrigeration nickel copper pipe for sale here from our factory. Quality products and reasonable price are available.

Seamless copper tube manufactured to the ASTM B 75 - Standard Specification for Seamless Copper Tube may be either round, square, or rectangular and is suitable for general engineering applications. It may be manufactured from any one of the following alloys: C10100, C10200, C10300, C10800, C12000, or C12200 unless specified otherwise on the original contract or purchase order.

Tubes meeting this standard may be furnished in any of several tempers (H55, H58, H80, O60, or O50) ranging from light drawn (usually limited to round tubes) to light annealed. It is the responsibility of the purchaser, when ordering, to provide the requirements for alloy (UNS#), temper, dimensions (diameter, wall thickness, or distance between parallel surfaces), form (straight lengths or coils), and total length or number of pieces of any particular size. It is this requirement that forces this tube to be a special order tube and not a standard stocked material.

It is usually limited to use in specific manufacturing processes or production line type applications.

Copper tube used for air conditioning and refrigeration applications in the field (sometimes called "refer" or "ACR" tube) is an almost pure copper material meeting the requirements of ASTM B 280 - Standard Specification for Seamless Copper Tube for Air Conditioning and Refrigeration Field Service. It is manufactured from copper alloy C12200 having a chemical composition of a minimum of 99.9% Copper (Cu) and Silver (Ag) combined and a maximum allowable range of Phosphorous (P) of 0.015 % - 0.040 %.

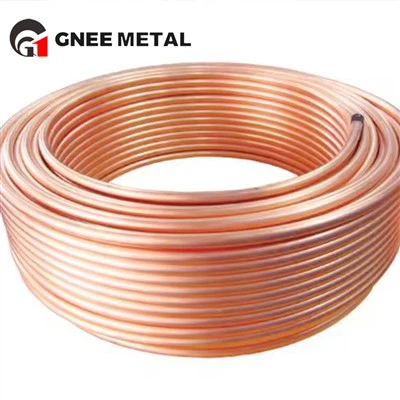

B 280 tube is produced in straight lengths or coils in tempers H58 or O60 respectively, although annealed straight lengths may be special ordered. Straight lengths are provided in sizes from 3/8" O.D. through 4 1/8" O.D. while annealed coils are supplied in sizes ranging from 1/8" O.D. through 1 5/8" O.D. ACR tube is required to be identified in the following fashion: Coils: The name or trademark of the manufacturer and ACR shall be permanently incised on each tube ¼" or larger at Intervals not greater than 1½ ft. Hard Straight Lengths: The name or trademark of the manufacturer and a mark indicating either L or ACR shall be incised at intervals not greater than 1½ ft. along the length of the tube. Hard straight lengths shall further be marked with a blue stripe containing the manufacturer's name or trademark, the nation of origin, outside diameter and ACR repeating at intervals not greater than 3 ft.

Air conditioning and refrigeration tube (ASTM B 280) either coiled or straight length is further required to be cleaned and capped prior to shipping.

The maximum particulate residue limit for coils or straight lengths is 0.0035 g/ft2 or as listed in Table 2 and Table 3 of the standard.
