Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of tin bronze in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount tin bronze for sale here from our factory. Customized orders are welcome.
Tin bronze alloys such as C90500 are typically found in gear and high-strength bushing and bearing applications where high strength, low speeds, and heavy loads are present. Other high-strength applications for these alloys are pump impellers, piston rings, steam fittings, and valve bodies. C905 tin bronze castings are utilized in movable bridge components, turntables for bridges, and other structures for fixed and expansion bearings with slow or intermittent movement and heavy loads.

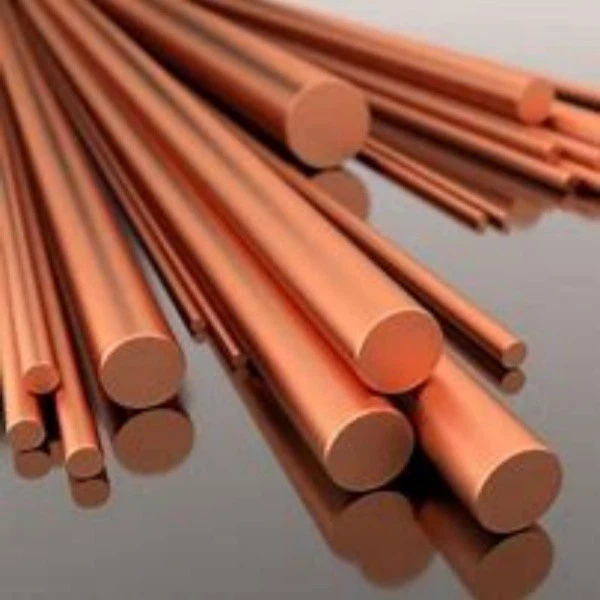

Product description: Tin bronze
Solids: 1/2" to 10" O.D.
Tubes: 1" to 16" O.D.*
Rectangles: Up to 20"
Standard lengths: 144"
Shape/Form: Semi-finished, mill stock or near-net shapes, anode, bar stock, billet/bloom, squares, hex, plate, profile or structural shape, flats/rectangular bar.
Similar or equivalent specification
| CDA | ASTM | SAE | AMS | Federal | Military | Other |
|---|---|---|---|---|---|---|
| C90500 | B505 B505M B22 B22M B143-1A |
62 J461 J462 |
4845 | QQ-C-390, D6 QQ-B-1005, Comp 16 |
MIL-B-11553, Comp 16 | Gun Metal |
Chemical composition
| Cu%1 | Pb% | Sn% | Zn% | Fe% | P% | Ni%1,2 | Al% | S% | Sb% | Si% | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chemical composition according to ASTM B505/B505M-23
1In determining Cu min., Cu may be calculated as Cu + Ni. 2Ni value includes Co.
Note: Cu + sum of named elements, 99.7% min. Single values represent maximums.
|
|||||||||||||||||
| 86.00- 89.00 |
0.30 |
9.00- 11.00 |
1.00- 3.00 |
0.20 |
1.50 |
1.00 |
0.005 |
0.05 |
0.20 |
0.005 |
|||||||
