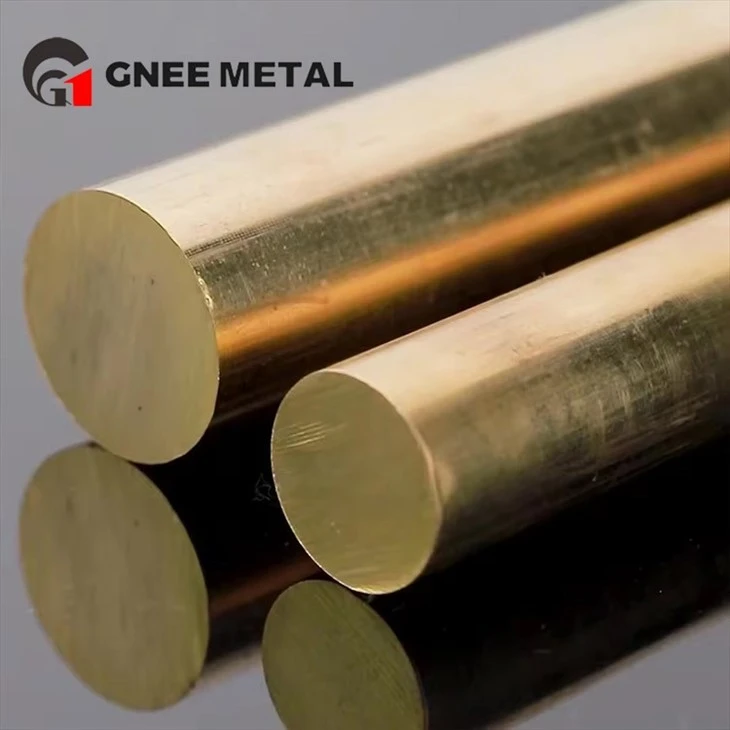

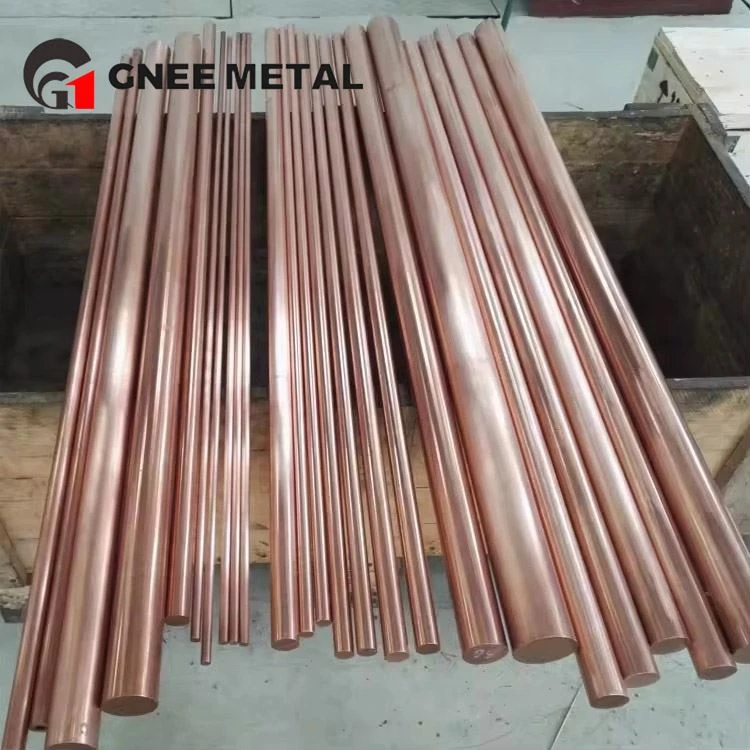

H65 Cu Bars
Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of h65 cu bars in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount h65 cu bars for sale here from our factory. Customized orders are welcome.
H63 copper alloy bar product characteristics
1. good mechanical properties, good plasticity in the hot state, cold state plasticity can also be
2. good workability, easy brazing and welding
3. corrosion resistance, but prone to corrosion rupture
4. in addition to the price is cheap, is widely used in a variety of common brass
Industry-leading production technology for H65 copper rods
Chemical Composition
| Element | Range (%) |
|---|---|
| Copper (Cu) | 63.5 - 68.0 |
| Zinc (Zn) | Remainder |
| Lead (Pb) | ≤ 0.03 |
| Phosphorus (P) | ≤ 0.01 |
| Iron (Fe) | ≤ 0.10 |
| Impurities | ≤ 0.3 |
Physical Properties
| Property | Approximate Value |
|---|---|
| Density (g/cm³) | ~8.47 |
| Electrical Conductivity (% IACS) | > 24 |
| Thermal Conductivity (W/(m·K)) | ~111.6 |
| Coefficient of Thermal Expansion (10^-6/K) | 20.1 |
| Melting Point (°C) | ~961 (Cu-Zn alloy) |
| Tensile Strength (MPa) | Varies with specific application and temper |
| Yield Strength (MPa) | Varies with specific application and temper |
| Elongation (%) | Varies with specific application and temper |
| Hardness | Varies with specific alloy composition and temper |
H63 copper metal bar has a wide range of applications, due to its relatively low price, making it a popular common brass variety in many fields. It can be used to manufacture a variety of stressed parts, such as pins, rivets, washers, nuts, etc., which need to withstand large stresses in the deep drawing and bending manufacturing process. In addition, H63 brass can also be used to manufacture products such as conduits, barometer springs, screens, and radiator parts.

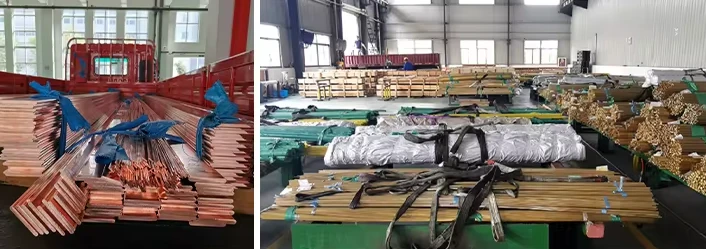

Large-scale factory production of H65 copper metal rods
Why choose our H65 solid copper rods?
GNEE is located in Anyang City, Henan Province, adjacent to the Yellow Sea, with convenient export transportation conditions. Our main products include copper tubes, copper rods, copper foils, copper wires, copper plates, etc., which are widely used in automobile, home appliances, construction and other industries. Our products are exported to more than 150 countries and regions such as Northeast China, North China, East China, Europe, Middle East, Southeast Asia, Australia and so on. We sincerely welcome friends from all over the world to visit our company and cooperate on the basis of long-term mutual benefit.
Hot Tags: h65 cu bars, China h65 cu bars manufacturers, suppliers, factory, copper, copper rod, copper C11000 rod, C12200 copper threaded rod, C26200 copper metal rod, C21000 copper earth rod, C21000 polished copper bar
