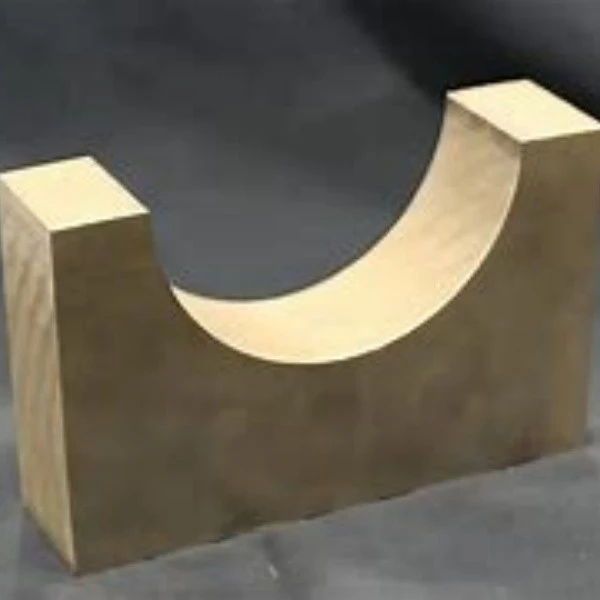

C95400 Aluminum Bronze
Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of c95400 aluminum bronze in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount c95400 aluminum bronze for sale here from our factory. Customized orders are welcome.
C95400 Aluminum Bronze (C954) - per ASTM B505
Standards: ASTM B-148, ASTM B-271, ASTM B-505, ASTM B-763, SAE 461, SAE J461, SAE J462, SAE 68A, AMS 4870, AMS 4871, AMS 4635
C95400 Aluminum Bronze, also known by C954, is the most popular, all purpose aluminum bronze alloy. It provides high yield and tensile strength, good ductility, weldability and exceptional resistance to wear, fatigue and deformation under shock or overload. Typical applications include bearings, gears, valve components, wearplate and wearstrip. Conforms to continuous cast specification ASTM B505 and centrifugal cast specification ASTM B271.
Typical Uses for C954 Aluminum Bronze:
AUTOMOTIVE: Weld Guns
FASTENERS: Nuts, Large Hold Down Screws
INDUSTRIAL: Pickling Hooks, Bearings, Pawl, Worm Gears, Machine Parts, Spur Gears, Heavily Loaded Worm Gears, Pump Parts, Landing Gear Parts, Valve Bodies, Valve Guides, Valve Seats, Bearing Segments for the Steel Industry, Pressure Blocks for the Steel Industry, High Strength Clamps, Bushings, Valves, Gears
MARINE: Ship Building, Covers for Marine Hardware
ORDINANCE: Government Fittings
Sizes Available at Aviva Metals
SOLID BAR: 1/2" - 16" diameter
HOLLOW BAR (Continuous Cast): 1/2" I.D. x 1" O.D. thru 9" I.D. x 10" O.D.
HOLLOW BAR (Centrifugal): up to 20" O.D. (stock) / up to 50" O.D. special order
WEAR PLATE: 1/4" x 12" thru 6" x 12"
SQUARE BAR: up to 8"
C95400 Aluminum Bronze Specifications:
| End Product | Specification |
| Centrifugal | ASME SB271, ASTM B271, SAE J462, J461 |
| Continuous | ASTM B505, SAE J462, J461 |
| Ingot | ASTM B30 |
| Permanent | ASTM B806 |
| Precision | MILITARY MIL-C-11866 |
| Sand | ASME SB148, ASTM B66, B148, B763, SAE J461, J462 |
- Chemical Composition
- Temper
- Mechanical Properties
- Physical Properties
- Fabrication
| Al | Cu | Fe | Mn | Ni | |
| Min/Max | 10.0-11.5 | 83.0 min | 3.0-5.0 | 0.5 | 1.5 |
| Nominals | 10.8000 | 83.2000 | 4.0000 | - | - |
