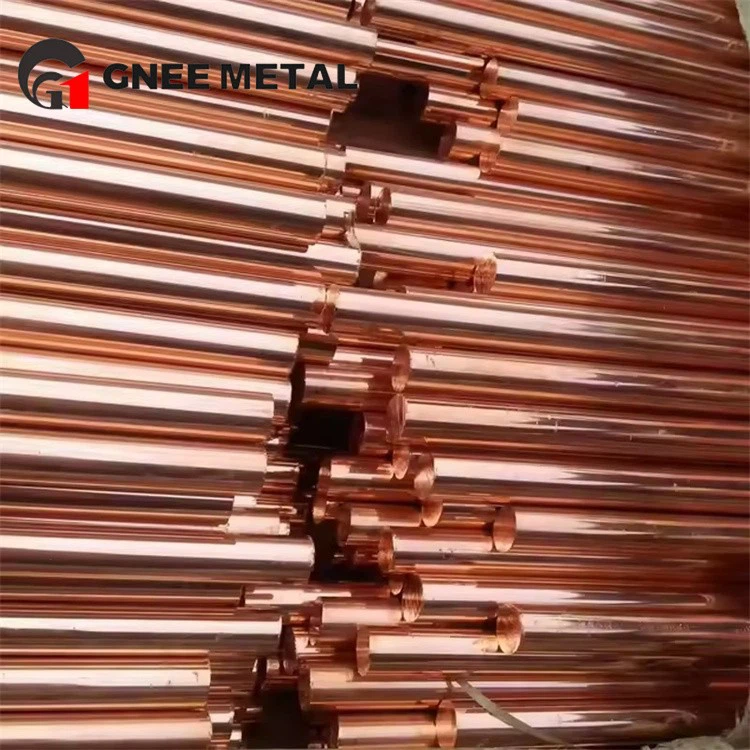

C10800 Cu Rod
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of c10800 cu rod in China, also supports customized service. Welcome to buy discount c10800 cu rod for sale here from our factory. Quality products and reasonable price are available.
C10800 copper bar consists primarily of copper, which has a chemical composition that contains very small amounts of phosphorus and other elements that make its electrical conductivity superior to that of many other metals. This excellent electrical conductivity allows current to be transmitted more efficiently, reducing energy loss.C10800 copper metal rods have excellent cold and hot workability, making them easy to perform a variety of machining operations, such as forging, rolling, and drawing. At the same time, the low phosphorus content helps to reduce the risk of hydrogen embrittlement during heat treatment, which improves machinability and material malleability.
Latest technology to produce C10800 copper metal rods
Physical Properties
| US CUSTOMARY | METRIC | |
|---|---|---|
|
MELTING POINT - LIQUIDS |
1981 F |
1083 C |
|
MELTING POINT - SOLIDUS |
1981 F |
1083 C |
|
DENSITY |
0.323 LB/IN3 @ 68 F |
8.94 GM/CM3 @ 20 C |
|
SPECIFIC GRAVITY |
8.94 |
8.94 |
|
ELECTRICAL RESISTIVITY |
11.3 OHMS–CMIL/FT @ 68 F |
1.88 MICROHM–CM @ 20 C |
|
ELECTRICAL CONDUCTIVITY * |
92% ACS @ 68 F |
0.538 MEGASIEMENS/CM @ 20 C |
|
THERMAL CONDUCTIVITY |
202.0 BTU · FT/(HR · FT2·OF) @ 68 F |
349.6 W/M · OK AT 20 C |
|
COEFFICIENT OF THERMAL EXPANSION |
9.4 ·10–6 PER OF (68–212 F) |
16.9 ·10–6 PER OC (20–100 C) |
|
COEFFICIENT OF THERMAL EXPANSION |
9.6 ·10–6 PER OF (68–392 F) |
17.3 ·10–6 PER OC (20–200 C) |
|
COEFFICIENT OF THERMAL EXPANSION |
9.8 ·10–6 PER OF (68–572 F) |
17.6 ·10–6 PER OC (20–300 C) |
|
SPECIFIC HEAT CAPACITY |
0.092 BTU/LB/OF @ 68 F |
393.5 J/KG · OK AT 293 K |
|
MODULAS OF ELASTICITY IN TENSION |
17000 KSI |
117000 MPA |
|
MODULAS OF RIGIDITY |
6400 KSI |
44130 MPA |
Applications for C10800 Round Copper Bar:
Electrical and electronic field: Due to its excellent conductive properties, C10800 copper bar is widely used in the manufacture of wires, cables, electronics, sensors, terminals, seals and other demanding parts and components.
Refrigeration and air-conditioning field: C10800 conductive copper bar is also used as refrigerator, air-conditioner, gas heater lines, tubes for heat exchangers, hydraulic oil tubes, etc., because it has good thermal conductivity and corrosion resistance.
Large stock of C10800 solid copper rods in stock
Highly reliable team supplying C10800 corrosion resistant copper rods
