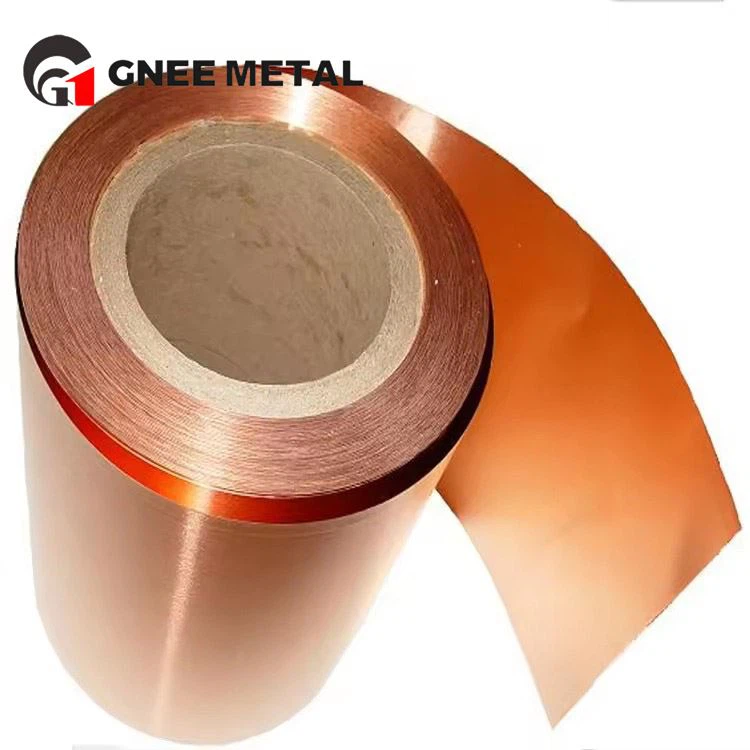

H80 Thick Copper Tape
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of h80 thick copper tape in China, also supports customized service. Welcome to buy discount h80 thick copper tape for sale here from our factory. Quality products and reasonable price are available.
H80 copper alloy is composed of copper as the basic element, adding appropriate amount of zinc, nickel, iron and other elements. This alloy has good mechanical properties, its tensile strength of up to 400MPa, yield strength of up to 355MPa, at the same time has a high degree of plasticity and toughness. These properties make the H80 copper alloy strip remain stable when subjected to large loads and impacts.
First-class H80 thick copper strip production process
| Specification | Range/Value |
|---|---|
| Alloy Type | H80 Copper |
| Width | 4 mm - 600 mm |
| Thickness | 0.1 mm - 2.0 mm |
| Length | Customizable |
| Tensile Strength | ≥ 265 MPa - 390 MPa (depends on state) |
| Elongation | ≥ 3% - 50% (depends on state) |
| Density | 8.65 g/cm³ |
| Chemical Composition | Cu: 78.5% - 81.5%, Zn: Balance, Fe: ≤ 0.05%, Pb: ≤ 0.05%, Impurities: ≤ 0.3% |
| Surface Finish | Smooth and uniform |
| State | Available in M (Soft) and Y (Hard) states |
H80 thick copper strip has good thermoplasticity and cold plasticity, so it can be molded by various processing methods, such as casting, forging, extruding and rolling. In addition, H80 copper foil has good welding performance, and can be connected by various welding methods such as gas-shielded welding, argon arc welding, etc. H80 industrial copper strips are widely used in the fields of construction, chemical industry, electric power, shipbuilding, and aviation.
Supply of H80 copper foil with excellent performance
Highly reliable team supplying H80 metal copper strips
We provide high quality products, good service and competitive price. We have been committed to producing copper tubes, copper plates, copper foils, copper wires, copper rods and so on.
Our products are exported to more than 150 countries and have entered key industries such as petroleum, chemical industry, railroad, automobile and large power station.
Hot Tags: h80 thick copper tape, China h80 thick copper tape manufacturers, suppliers, factory, soft copper tubing, C21000 type l copper, ac copper C21000 wire, C12000 industrial copper bars, copper C26800 strip for earthing, C11000 bare copper cable
