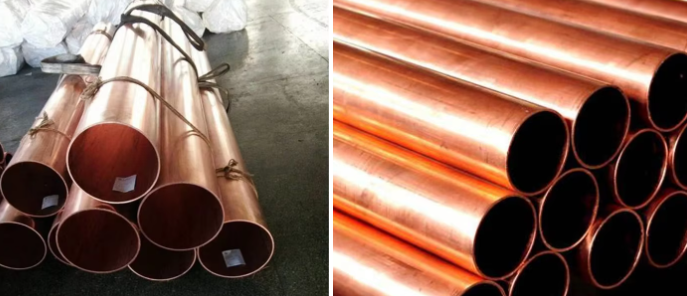

C10100 Copper Pipe For Electrical Industry
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of c10100 copper pipe for electrical industry in China, also supports customized service. Welcome to buy discount c10100 copper pipe for electrical industry for sale here from our factory. Quality products and reasonable price are available.
Characteristics of C10100 Copper Tubing
Ultra High Purity
C10100 oxygen-free copper has a copper content of ≥99.99%. Oxygen content is controlled below 0.003%. Sulfur. Phosphorus and other impurity elements content is extremely low. Ensure the material in electrical conductivity. Thermal conductivity and corrosion resistance.
Physical Properties
Electrical conductivity up to 101% of the International Annealed Copper Standard (IACS). Excellent thermal conductivity. Good ductility and processability. Suitable for complex molding processes.
Copper C10100 Tubes Chemical Composition
| Grade | Cu | Ph | Rem | Te |
| Copper C10100 | 99.99 min | 0.0003 max | 0.004 max | 0.001 max |
Copper C10100 Tubes Physical Properties
| Grade | Density | Electrical Resistivity (microhm-cm (at 68 Deg F)) | Melting Point (Deg F) | Thermal Conductivity | Mean Coeff Thermal Expansion | Modulus of Elasticity Tension |
| C10100 | 0.323 | 10.3 | 1981 | 226 | 9.4 | 17000 |
In the power system, the grounding device is important to ensure personal safety and normal operation of equipment. c10100 copper tube is widely used in the manufacture of various components of the grounding device due to its excellent electrical conductivity and corrosion resistance. The use of this material can effectively improve the grounding effect, reduce resistance, and extend the service life of the equipment.
As an important enterprise in China's copper processing industry, GNEE has participated in the formulation of many national standards and industry specifications. We actively share our technical experience to promote the industry's high-quality development and continue to improve our own product standards to ensure that we remain at the forefront of the market.
Hot Tags: c10100 copper pipe for electrical industry, China c10100 copper pipe for electrical industry manufacturers, suppliers, factory, copper C10100 tape, ASTM B42 Seamless Copper Pipe, C23000 copper pipe, copper C28000 earthing plate, C23000 conductive copper tape, C10200 copper sheet
