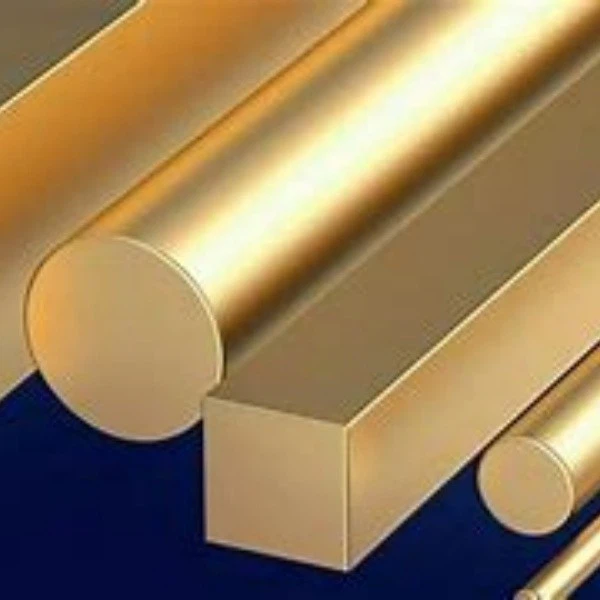

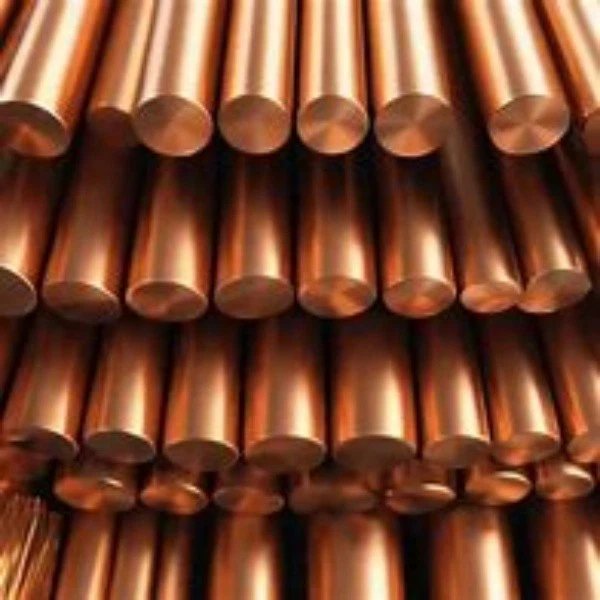

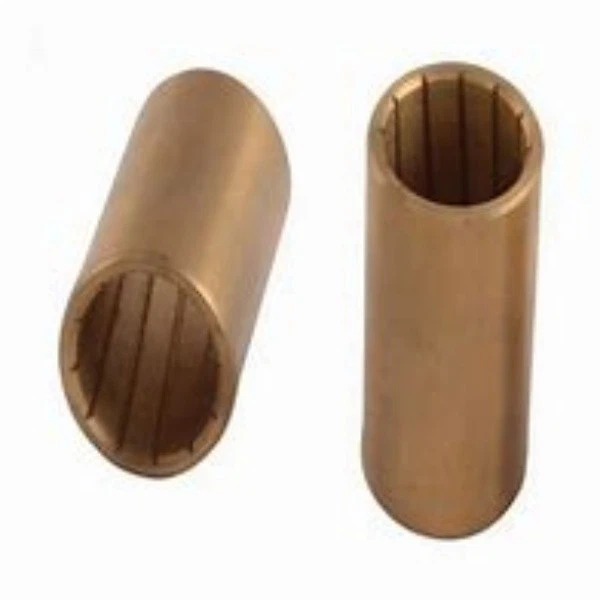

C63600 Silicon Aluminum Bronze
C63600 Silicon Aluminum Bronze
C63600 Silicon Aluminum Bronze is a specific grade of bronze alloy characterized by its high silicon content, offering enhanced corrosion resistance, strength, and wear resistance, often utilized in marine environments, chemical processing, and electrical components due to its non-magnetic properties and excellent casting capabilities.
Typical Uses for C63600 Silicon Aluminum Bronze:
ELECTRICAL: Cold Headed Nuts, Cable Connectors, Components for Pole Line Hardware
FASTENERS: Screw Machine Products, Bolts
INDUSTRIAL: Valve Components, Nuclear Power Service
| Al | As | Cu | Fe | Pb | Ni | Si | Sn | Zn | |
| Min/Max | 3.0 - 4.0 | 0.15 | Rem | 0.15 | 0.05 | 0.15 | 0.7 - 1.3 | 0.2 | 0.5 |
| Nominals | 3.5 | - | 95.5 | - | - | - | 1 | - | - |
Physical Properties:
| Product Property | US Customary | Metric |
| Coefficient of Thermal Expansion | 9.4 ·10-6 per oF (68-572 F) | 16.9 ·10-6 per oC (20-300 C) |
| Density | 0.301 lb/in3 at 68 F | 8.33 gm/cm3 @ 20 C |
| Electrical Conductivity | 12 %IACS @ 68 F | 0.07 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 86.4 ohms-cmil/ft @ 68 F | 14.36 microhm-cm @ 20 C |
| Melting Point - Liquidus | 1890 F | 1032 C |
| Modulas of Elasticity in Tension | 16000 ksi | 110000 MPa |
| Specific Gravity | 8.33 | 8.33 |
| Thermal Conductivity | 33.0 Btu · ft/(hr · ft2·oF)at 68F | 57.1 W/m · oK at 20 C |
Fabrication:
| Joining Technique | Suitability |
| Brazing | Not Recommended |
| Butt Weld | Fair |
| Capacity for Being Cold Worked | Excellent |
| Capacity for Being Hot Formed | Fair |
| Coated Metal Arc Welding | Fair |
| Gas Shielded Arc Welding | Fair |
| Machinability Rating | 40 |
| Oxyacetylene Welding | Not Recommended |
| Seam Weld | Fair |
| Soldering | Not Recommended |
| Spot Weld | Fair |
Sizes Available
| ROUND RODS | 8mm To 70 mm |
| HEX | 10mm To 60mm |
| SQUARE | 10mm To 60mm |
| FLAT | 10mm Min Thickness and max Width 120mm |
| BILLETS | Up to 200 mm |
| INGOTS | As per Specification |
