C18150 Copper Chromium Zirconium
C18150 Copper Chromium Zirconium is a high-strength, precipitation-hardenable copper alloy with chromium and zirconium additions, known for its excellent electrical conductivity, high thermal stability, and good resistance to softening at elevated temperatures, commonly used in electrical connectors and components that require strength and thermal resistance.
RWMA Class II
Used extensively for cap style resistance welding electrodes. Evidence suggests that it can provide less sticking and resist deformation longer than its copper-chrome counterpart in some specific situations.
Typical Uses for C18150 Copper Chromium Zirconium:
CONSUMER: Pencil-type & Light Soldering Guns: Tips, Rod Extensions
ELECTRICAL: Resistance Welding Electrodes
INDUSTRIAL: Welding Electrodes, Welding Wheels, Tips and Rod Extensions
Mechanical & Electrical Properties
| Form | Range In mm | Tensile Strength In N/MM2 | Elongation In % | Rockwell Hardness in B Scale-HRB | Conductivity% IACS at 20°C |
|---|---|---|---|---|---|
| Rod | < 25 | ≥450 | ≥10 | ≥72 | ≥78 |
| 25-50 | ≥370 | ≥12 | ≥72 | ≥78 | |
| > 50 | ≥360 | ≥15 | ≥70 | ≥78 | |
| Flat Products | - | ≥360 | ≥10 | ≥65 | ≥75 |
| Tube as extruded Condition | - | - | - | ≥65 | ≥78 |
| Forged Block | - | - | - | ≥75 | ≥78 |
| Seam Welding Wheel | minØ 60 max.as per Customer Requirement | - | - | ≥75 | ≥80 |
| SC Ring | OD minØ 200 max. as per Customer Requirement | ≥360 | ≥15 | ≥78 |
Physical Properties
| Melting Point – Liquidus °C | 1080 |
|---|---|
| Melting Point – Solidus °C | 1070 |
| Density lb/cu in. at 20°C | 0.321 |
| Specific Gravity | 8.89 |
| Electrical Conductivity% IACS at 20°C | 80 |
| Thermal Conductivity Btu/ sq ft/ ft hr/ °F at 20°C | 187 |
| Coefficient of Thermal Expansion 20-100 10⁻⁶ per °C (20 – 100°C) | 9.5 |
| Modulus of Elasticity in Tension ksi | 17000 |
Typical Applications
|
Electrical Electrical Connectors in Transformer Applications Electrical Contacts in MV/HV Switch Gear Application Short Circuit Ring and Rotor Bars in Traction & Industrial Motor Applications Rotor Current Carrying Rod for MV & HV Turbo Generators Electron Tube Grid Side Rods Parts for Electronic Devices Semi-Conductor Industry Industrial Resistance Welding Machine Electrodes Seam Welding Wheels in Automobile Industry Mould plates for casting in steel & Brass melting Industry |
Applicable Form & Size
| Form | Size |
|---|---|

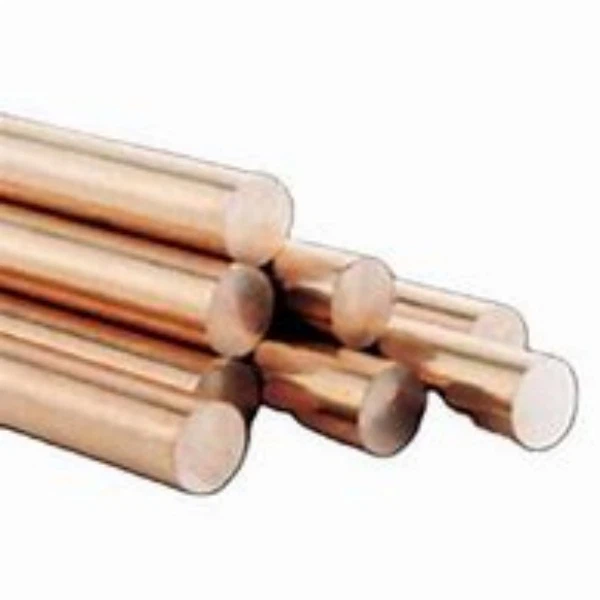

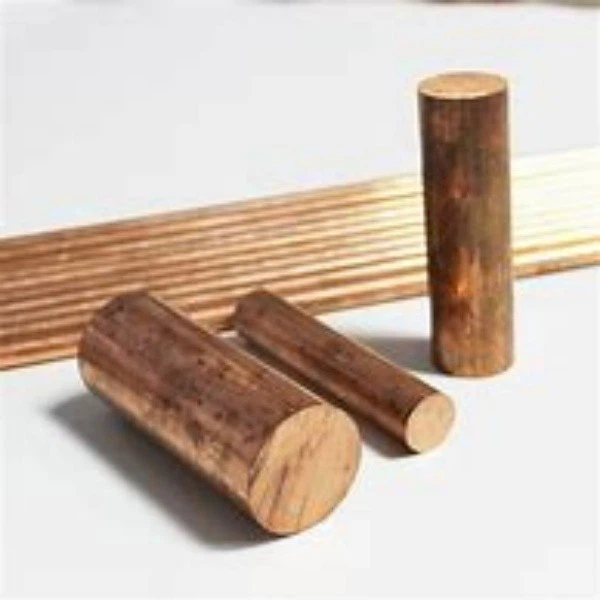

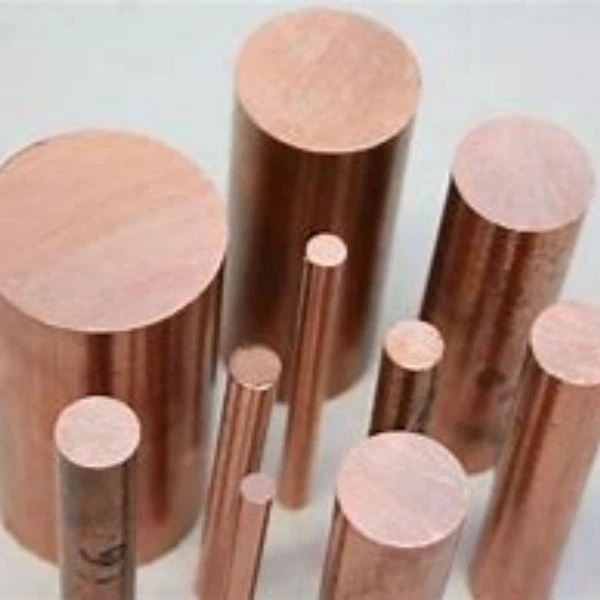

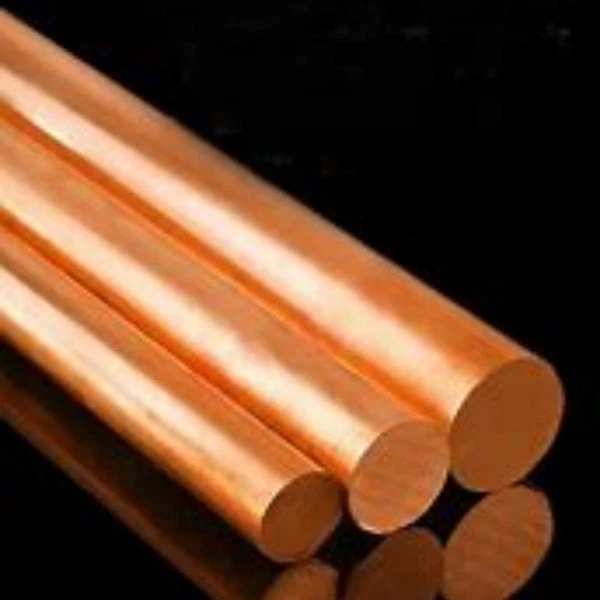

| Rod |
Dia: Ø6 mm-Ø50mm Length: 2 Mtr. max Dia: Ø51 mm-Ø100mm Length: 1 Mtr max Dia: Ø101 mm-Ø145mm Length: 0.5 Mtr max |
| Flat |
Thick: 5 mm-60 mm Width: 20 mm-150 mm Length: 2 Mtr max |
| Profile |
Circumscribing circle of Dia 30 to 150 mm |
| Wheel |
Dia: Ø400 mm max Thick: 6 mm – 50 mm |
| Tube as extruded Condition |
ID: Ø45 mm- Ø117mm OD: Ø85 mm- Ø150mm |
| Forged Block |
Thick: 170 mm max Width: 320 mm max Length: 600 mm max |
| Short Circuit Ring |
OD: Ø270 – Ø830 mm ID: Ø160 – Ø700 mm Thick: 17mm to 90mm |
|
Apart from above we can also manufacture as per customer specification. |
|
