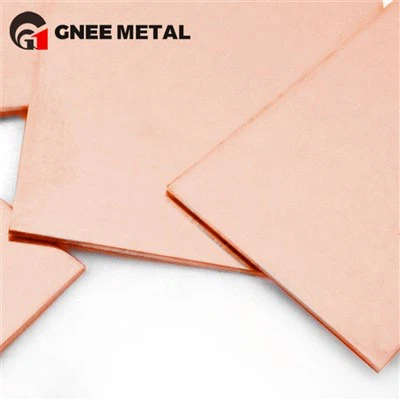

Square C10200 Copper Plate
Henan Gnee New Material Co., Ltd. is one of the most professional manufacturers and suppliers of square c10200 copper plate in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount square c10200 copper plate for sale here from our factory. Customized orders are welcome.
C10200 oxygen-free copper sheet is characterized by high ductility, high electrical and thermal conductivity, high impact strength, good creep resistance, ease of soldering and low volatility in high vacuum.
Industry-leading C10200 square copper sheet production technology
| Melting Point - Liquidus°F | 1981 |
|---|---|
| Melting Point - Solidus°F | 1981 |
| Densitylb/cu in. at 68°F | 0.323 |
| Specific Gravity | 8.94 |
| Electrical Conductivity% IACS at 68°F | 101 |
| Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F | 226 |
| Coefficient of Thermal Expansion 68-21210 to -6 power per °F (68 – 212°F) | 9.4 |
| Coefficient of Thermal Expansion 68-39210 to -6 power per °F (68 – 392°F) | 9.6 |
| Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) | 9.8 |
| Specific Heat CapacityBtu/ lb /°F at 68°F | 0.092 |
| Modulus of Elasticity in Tensionksi | 17000 |
| Modulus of Rigidityksi | 6400 |
| Technique | Suitability |
|---|---|
| Soldering | Excellent |
| Brazing | Excellent |
| Oxyacetylene Welding | Fair |
| Gas Shielded Arc Welding | Good |
| Coated Metal Arc Welding | Not Recommended |
| Spot Weld | Not Recommended |
| Seam Weld | Not Recommended |
| Butt Weld | Good |
| Capacity for Being Cold Worked | Excellent |
| Capacity for Being Hot Formed | Excellent |
| Forgeability Rating | 65 |
| Machinability Rating | 20 |
Typical uses for C10200 oxygen-free copper:
Electrical Electrical conductors, transistor components, coaxial cables, copper glass seals in electronic equipment, bus conductors, wave guides
Industrial: LPG services, medical gases - oxygen, vacuum seals, coaxial tubes, billet mold tubes, powder metallurgy extrusion tanks
Packaging and transportation of C10200 pure copper sheet
Why choose our C10200 electrolytic copper sheet
GNEE is located in Anyang City, Henan Province, adjacent to the Yellow Sea, with convenient export transportation conditions. Our main products include copper tubes, copper rods, copper foils, copper wires, copper plates, etc., which are widely used in automobile, home appliances, construction and other industries. Our products are exported to more than 150 countries and regions such as Northeast China, North China, East China, Europe, Middle East, Southeast Asia, Australia and so on. We sincerely welcome friends from all over the world to visit our company and cooperate on the basis of long-term mutual benefit.
