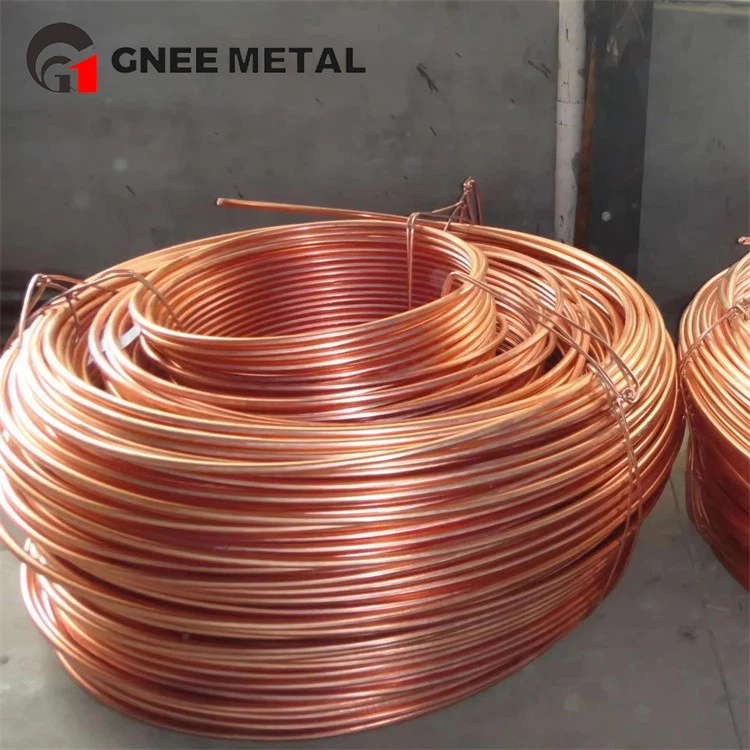

C34500 Copper Tube
video

C34500 Copper Tube

C34500 Copper Gas Tubing is a copper alloy tubing with a specific chemical composition of between 62% and 65% copper, between 1.5% and 2.5% lead, and moderate amounts of zinc and other trace elements. This alloy is widely used in several fields because of its excellent performance.
Send Inquiry
Chat Now
Product Introduction

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of c34500 copper tube in China, also supports customized service. Welcome to buy discount c34500 copper tube for sale here from our factory. Quality products and reasonable price are available.



C34500 copper metal tubing has excellent electrical and thermal conductivity, ductility and corrosion resistance, which makes it valuable for important applications in electrical, heat exchange and plumbing fields. For example, it can be used to make electrical equipment such as generators, cables, switchgear, transformers, and other electrical equipment, as well as heat exchangers, piping and other components.C34500 copper water pipe has extremely good cutting performance and high wear-reducing properties, which makes it excel in occasions that require high-precision cutting and processing, such as clocks and watches, automobiles, and precision instrumentation and other fields.



Professional C34500 Seamless Pipe Supplier--GNEE

soft copper pipe



Chemical Composition

  Elements
Cu(1) Pb Zn Fe
(1) Cu + Sum of Named Elements 99.6% min.
Min (%) 62.0 1.5
Max (%) 65.0 2.5 Rem 0.15



Fabrication Properties

Technique Suitability
Soldering Excellent
Brazing Good
Oxyacetylene Welding Not Recommended
Gas Shielded Arc Welding Not Recommended
Coated Metal Arc Welding Not Recommended
Spot Weld Not Recommended
Seam Weld Not Recommended
Butt Weld Fair
Capacity for Being Cold Worked Fair
Capacity for Being Hot Formed Poor
Machinability Rating 90

C34500 wear-resistant copper pipe also has good mechanical properties and high strength and plasticity, and can withstand cold and hot pressure processing well. However, it should be noted that this alloy has a tendency to corrode and rupture, so additional protective measures may be required in some specific use environments.C34500 copper tube is also widely used in the production of small hardware, daily necessities and screws and other manufactured parts, which further reflects its wide range of applications and versatility.



C34500 metal pipe supply with excellent performance

copper tube soldering



Why Choose Our C34500 Alloy Pipe

copper pipe in ac

GNEE is located in Anyang City, Henan Province, adjacent to the Yellow Sea, with convenient export transportation conditions. Our main products include copper tubes, copper rods, copper foils, copper wires, copper plates, etc., which are widely used in automobile, home appliances, construction and other industries. Our products are exported to more than 150 countries and regions such as Northeast China, North China, East China, Europe, Middle East, Southeast Asia, Australia and so on. We sincerely welcome friends from all over the world to visit our company and cooperate on the basis of long-term mutual benefit.
