C10100 Copper Pipe For Hot Water
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of c10100 copper pipe for hot water in China, specialized in providing high quality copper products with competitive price. Welcome to buy discount c10100 copper pipe for hot water for sale here from our factory. Customized orders are welcome.
C10100 Oxygen Free Copper Electronics (OFE) is 99.99% pure copper with only 0.0005% oxygen.C10100 OFHC copper is made by direct conversion of selected refined cathodes and castings under carefully controlled conditions to ensure that the pure oxygen-free metal is not contaminated during production.OFHC copper is produced in a manner that results in a very high quality, copper concentration of 99.99%. The intrinsic qualities of elemental copper are maximized with such low levels of extrinsic elements.
Top quality C10100 hot water copper pipe products
Copper C10100 Tubes Chemical Composition
| Grade | Cu | Ph | Rem | Te |
| Copper C10100 | 99.99 min | 0.0003 max | 0.004 max | 0.001 max |
Copper C10100 Tubes Physical Properties
| Grade | Density | Electrical Resistivity (microhm-cm (at 68 Deg F)) | Melting Point (Deg F) | Thermal Conductivity | Mean Coeff Thermal Expansion | Modulus of Elasticity Tension |
| C10100 | 0.323 | 10.3 | 1981 | 226 | 9.4 | 17000 |
Often referred to as oxygen-free copper, C10100 copper tubes offer excellent corrosion resistance as well as excellent thermal and electrical properties. These oxygen-free copper are well suited for applications requiring good electrical conductivity and ductility. Under high vacuum conditions, C10100 OFE offers excellent ductility, strong electrical and thermal conductivity, and low volatility.
UNS C10100 copper tubing is used in a wide variety of applications including electrical and electronic conductors, high resistivity cryogenic shunts, bus conductors, hollow conductors, vacuum tube anodes, coaxial tubes, microwave tubes, waveguides, cavity resonators, superconductor substrates, vacuum tubes, and solid state devices, as well as glass-to-metal seals.

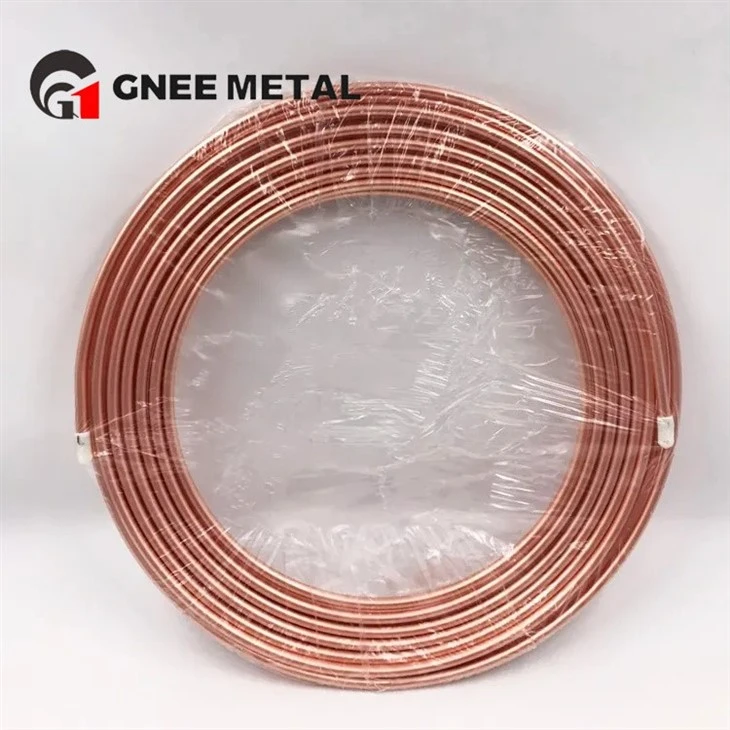

C10100 soft copper tube packaging
FAQ
Q: What tool is used to prepare copper tubing?
A: The most popular flaring tool for copper tubing is the bar-type tool. It has include multiple bits to accommodate different pipe or tube sizes. Tubing and piping flares are not interchangeable. Tubing flares have a 45-degree angle while piping flares have a 37-degree angle.
Q: What are the three techniques for joining copper tubing?
A: These joining methods include soldering, brazing and electric resistance. Soldered jointswith capillary fittings, are used in plumbing for water lines and for sanitary drainage.
Q: How to measure copper tubing size?
A: Take a string or flexible tape and wrap it around the pipe. Make a mark and then measurehow long the string or tape is. Once you have the string's length you'll need to divide thatmeasurement by pi (pi= 3.1415) to find the pipe's diameter.
