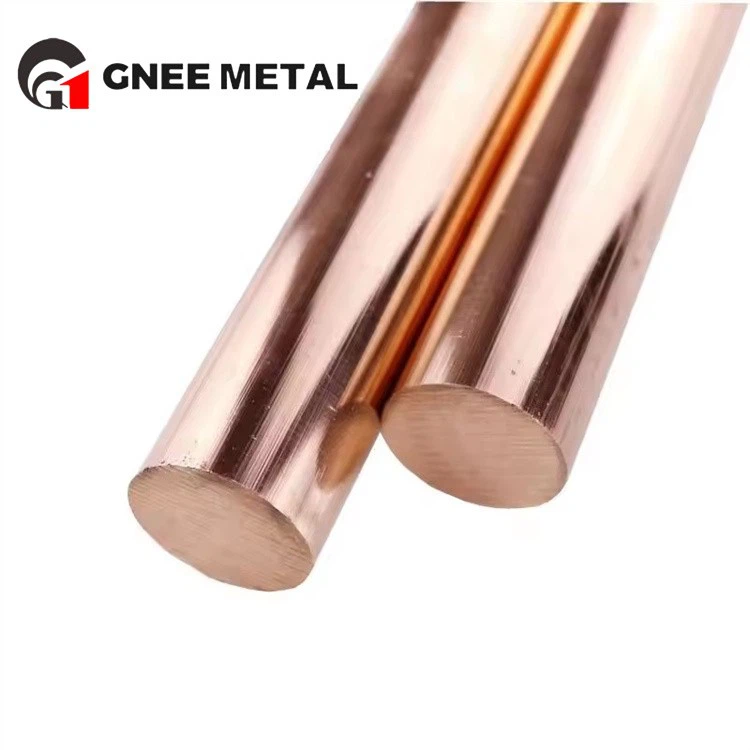

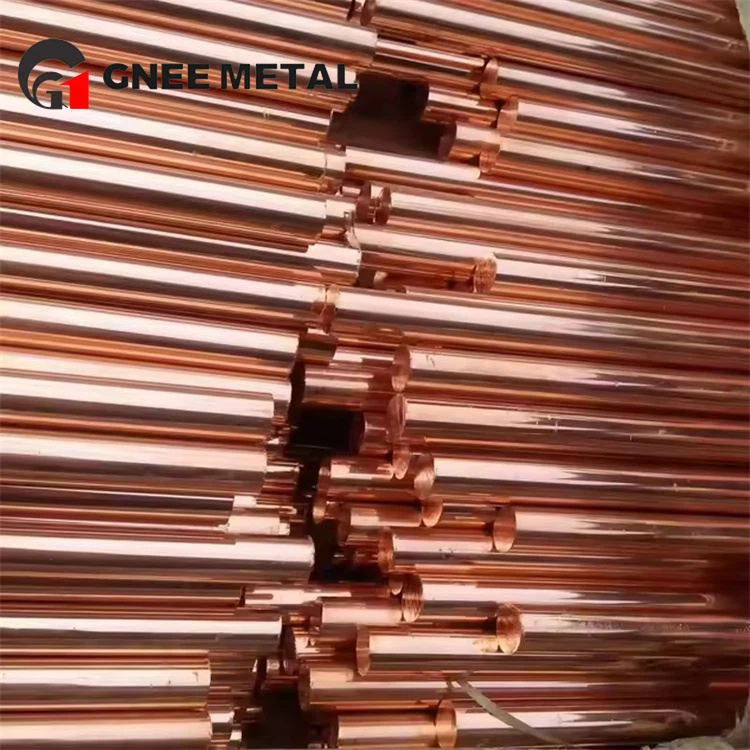

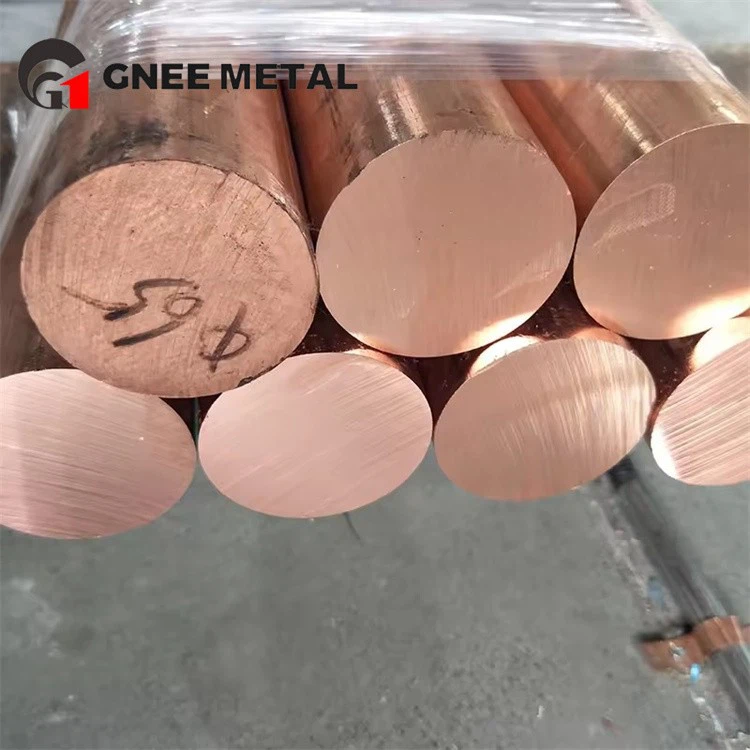

C70600 Copper Earth Rod
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of c70600 copper earth rod in China, also supports customized service. Welcome to buy discount c70600 copper earth rod for sale here from our factory. Quality products and reasonable price are available.
C70600 alloy copper bar is a copper-nickel alloy with about 10% nickel content, which has excellent resistance to seawater corrosion, relatively strong resistance to marine organisms adhesion, as well as good corrosion resistance to clean or somewhat polluted seawater and river and bay water. This corrosion resistance makes C70600 copper metal rods in the grounding system can be long-term stable operation, not easy to be affected by environmental corrosion.
High level production technology of C70600 grounding copper rods
| Melting Point - Liquidus°F | 2100 |
|---|---|
| Melting Point - Solidus°F | 2010 |
| Densitylb/cu in. at 68°F | 0.323 |
| Specific Gravity | 8.94 |
| Electrical Conductivity% IACS at 68°F | 9 |
| Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F | 26 |
| Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) | 9.5 |
| Specific Heat CapacityBtu/ lb /°F at 68°F | 0.09 |
| Modulus of Elasticity in Tensionksi | 18000 |
| Modulus of Rigidityksi | 6800 |
| Technique | Suitability |
|---|---|
| Soldering | Excellent |
| Brazing | Excellent |
| Oxyacetylene Welding | Fair |
| Gas Shielded Arc Welding | Excellent |
| Coated Metal Arc Welding | Good |
| Spot Weld | Good |
| Seam Weld | Good |
| Butt Weld | Excellent |
| Capacity for Being Cold Worked | Good |
| Capacity for Being Hot Formed | Good |
| Machinability Rating | 20 |
C70600 solid copper rods are used in a number of industrial fields, including shipping, petrochemical, electric power, etc. The requirements for grounding systems in these fields are usually high, and the excellent performance of C70600 white copper alloy enables it to meet the needs of these fields.

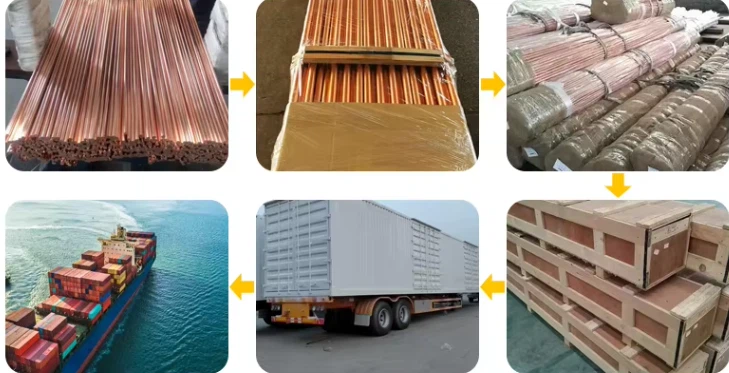

Packaging and transportation of C70600 round copper rods
Why choose our C70600 conductive copper rods
Our Service
1. we can reply your questions within 24 hours (including holidays).
2. 16 years experience in CNC machining.
3. OEM, ODM are welcome, all products can be customized.
4. Protect your personal design and all private information.
5. Provide samples.
6. Welcome to visit.
7. After-sales service.
8. After production and delivery, we will follow up and inform you about your goods in time.
9. After the goods arrive, if you find any design and quality problem or difference with your samples, please feel free to contact us, we will find the problem and solve it with you.
